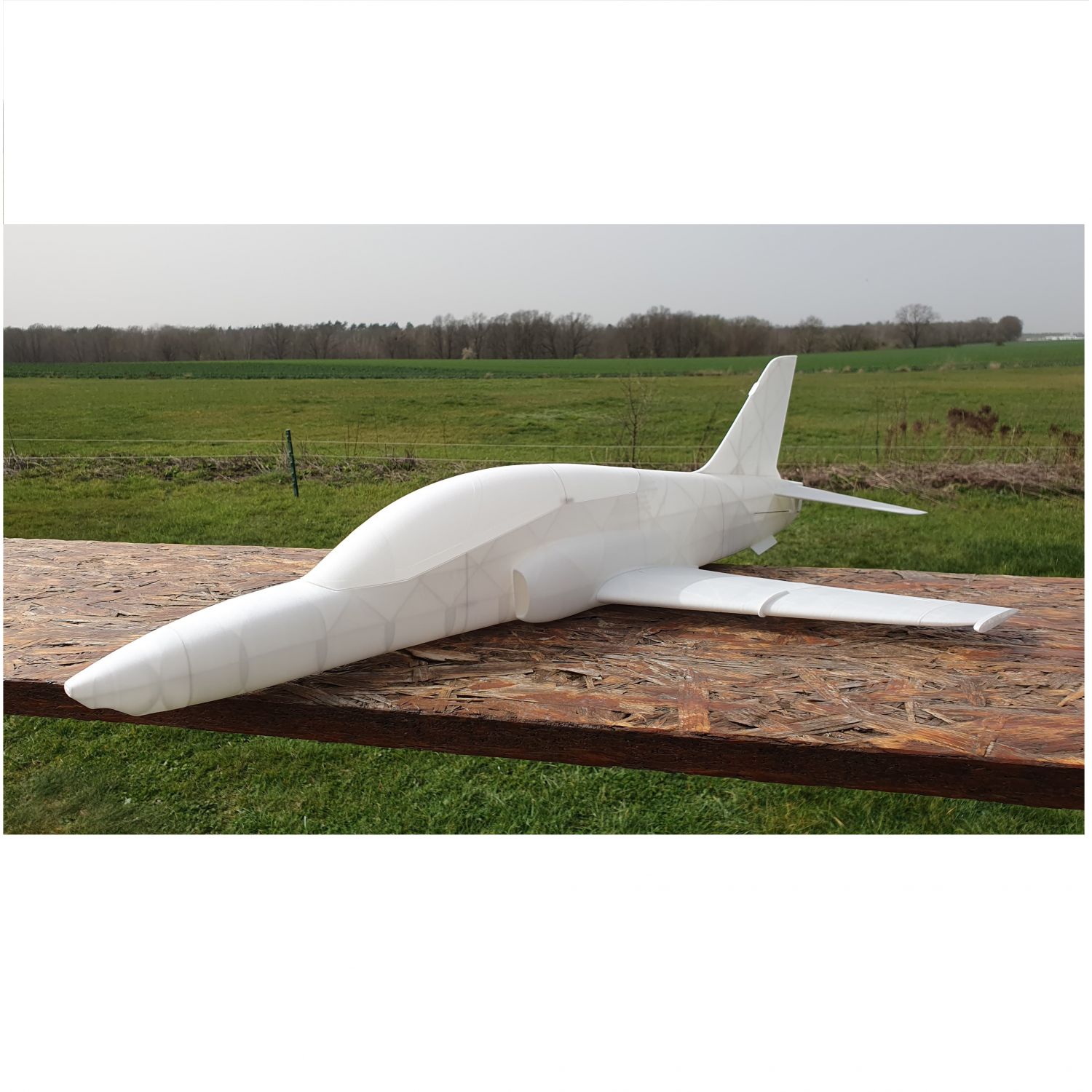

Bae Hawk Mk.127

OVERVIEW:

This replica of the Bae Hawk is designed for quick and easy construction and printed using lightweight PLA (LW-PLA). Designed to suit the QX 30mm edf 6000kv or 2305 brushless outrunner motor. In the pusher configuration, this model has an incredible amount of power and is happy to cruise around at 30% power thanks to its lightweight yet sturdy construction. The edf configuration does not have as much excess thrust but will still cruise at 60% power. Utilizing 3 channel controls; aileron, elevator and throttle, this model is easy to handle and fully capable of scale aerobatics. Links to components used can be found on the last page of the user guide.

BUILD OPTIONS:

This model has different build options depending on your desire for an EDF or Pusher-style model.

Option 1 - Hawk Mk127 (EDF)
Option 2 - Hawk Mk127 (Pusher)

GENERAL SPECIFICATIONS:

WINGSPAN: 600mm

PRINT WEIGHT: 225g

FLYING WEIGHT: (370g > EDF) or (440g > Pusher)

ELECTRICS:

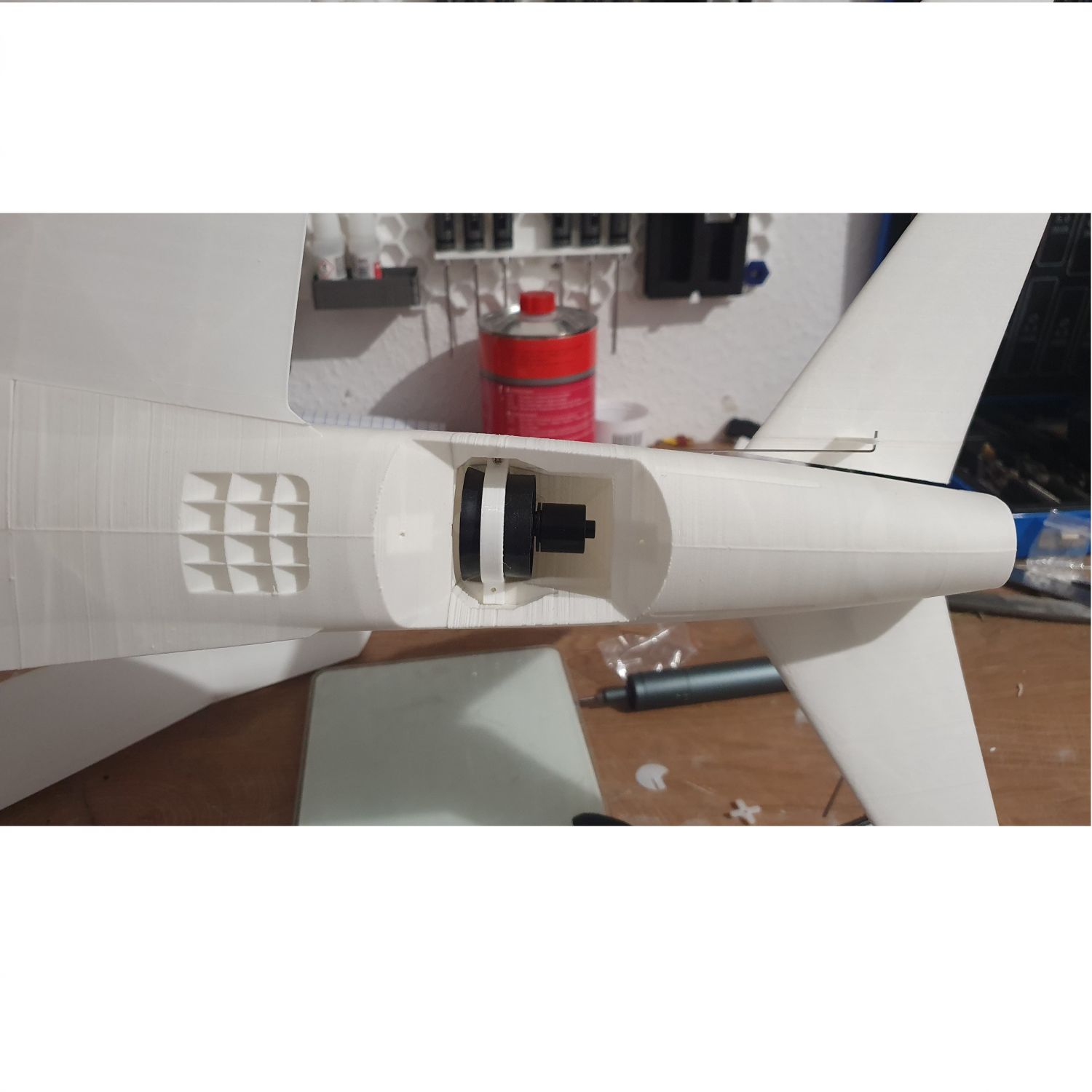

MOTOR: (QX 30mm edf 6000kv > EDF) or (2205 2300kv > Pusher)
ESC: (15amp > EDF) or (25amp > Pusher)

SERVOS: 3.7g MICRO

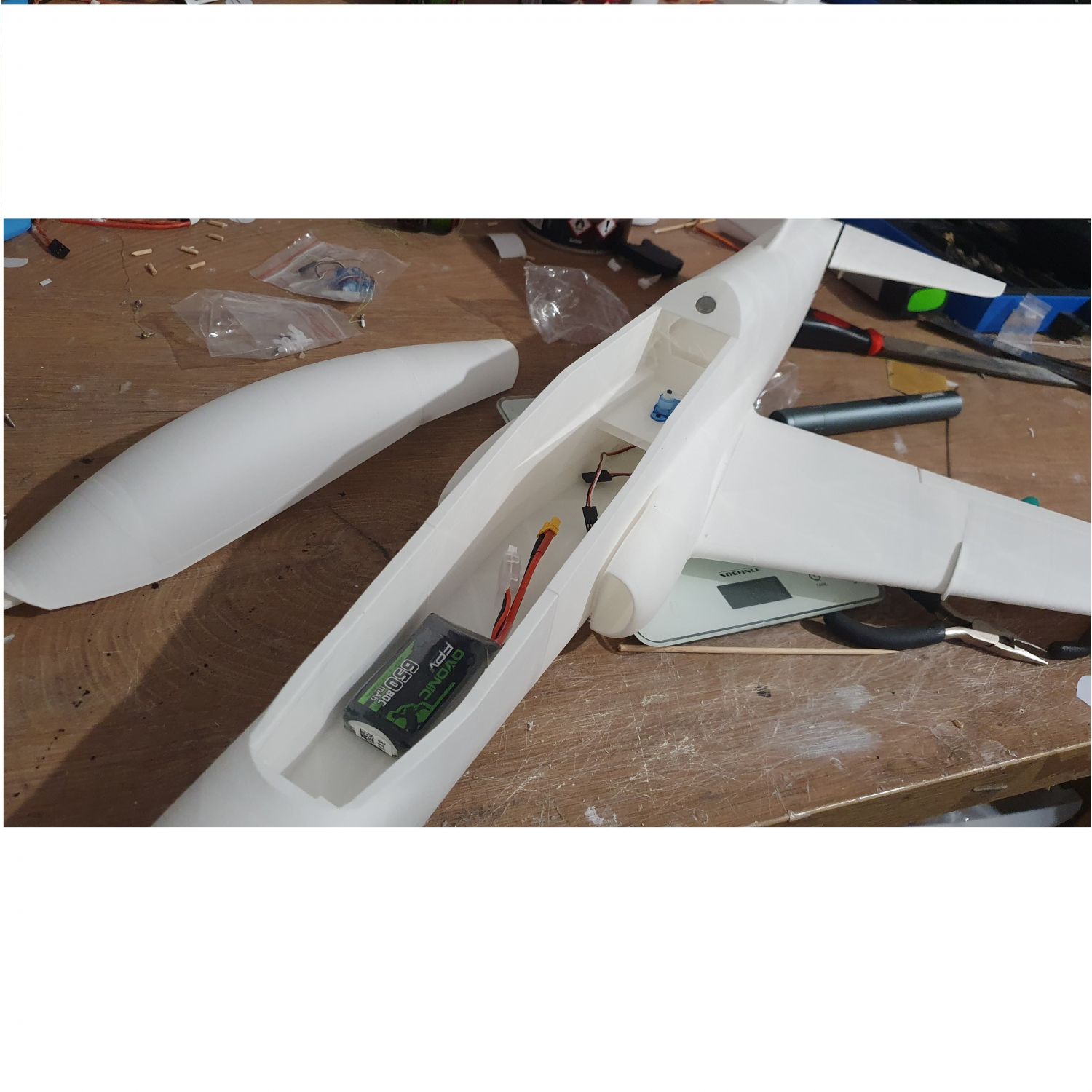

BATTERY: (650mah 4s > EDF) or (850mah 3s > Pusher)

INCLUDED:

Factory files for Simplify 3d
G-code files
STL files for all components
Detailed assembly manual and user guide
Print settings guide

MINIMUM BUILD VOLUME: 200mm x 200mm x 200mm

REQUIRED COMPONENTS:

X1 2205 2300kv motor or x1 QX 30mm EDF 7000kv
X1 15AMP ESC > EDF or x1 20AMP esc > Pusher
X1 (650mah 4s > EDF) or (850mah 3s > Pusher)
X3 3.7g Micro servo
X2 10x10x2mm MAGNET (ROUND)
X1 Y-lead servo wire leads
5x3mm round carbon tube (60mm min)
3mm round carbon rod (100mm min
1mm piano wire
VELCRO
M2 screws
3mm BAMBOO FOOD SKEWERS
