DH 98 Mosquito 1400mm (mk1 and mk24)

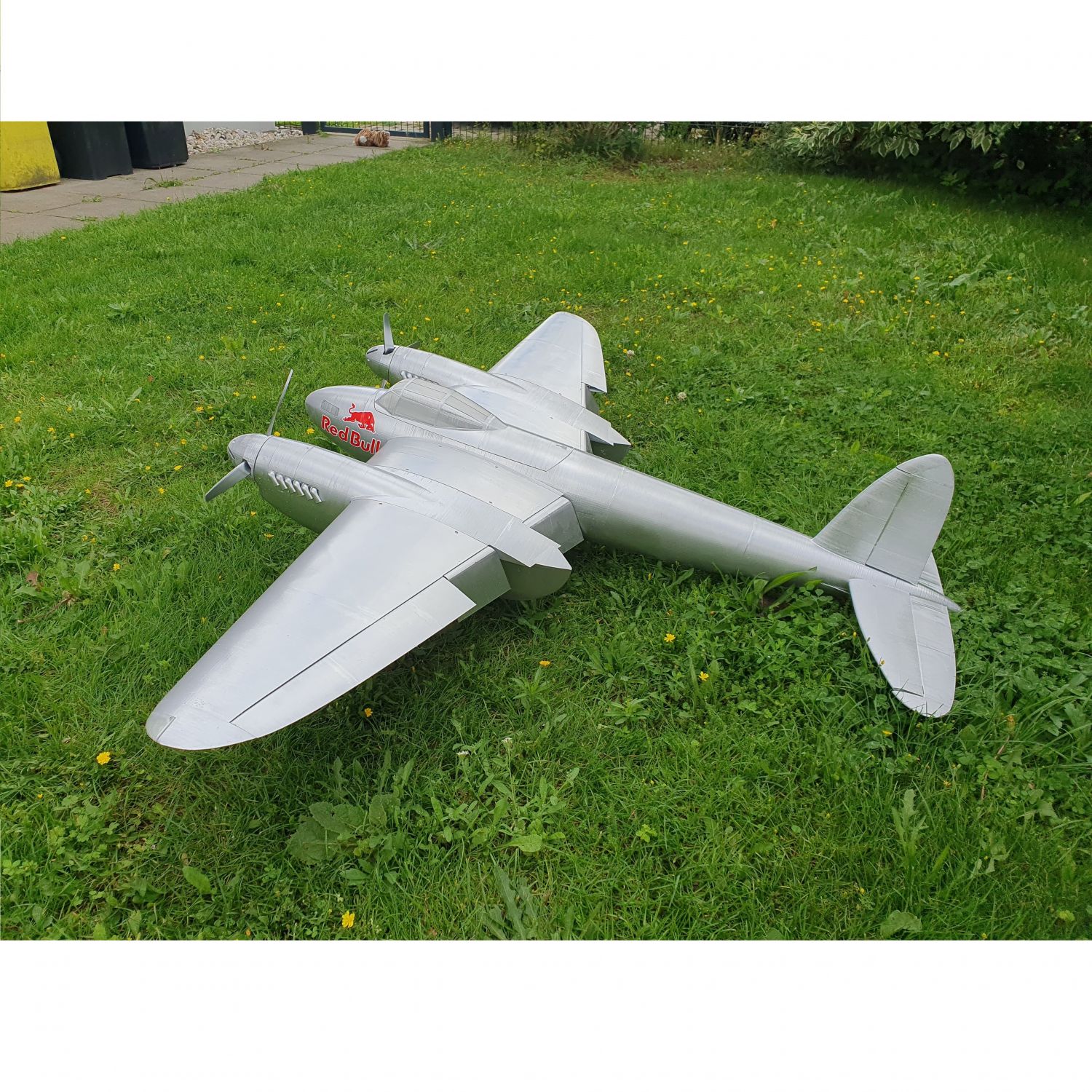

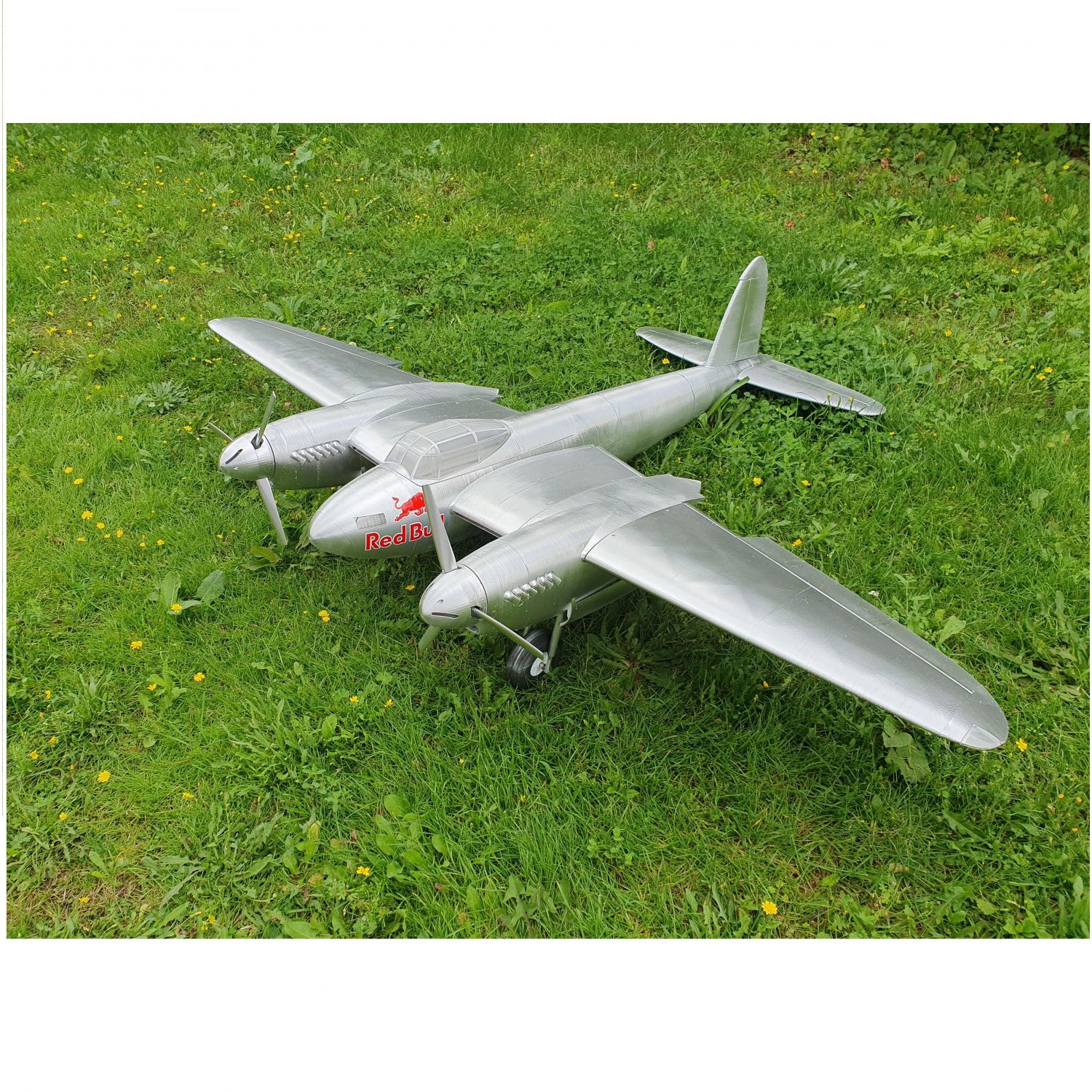

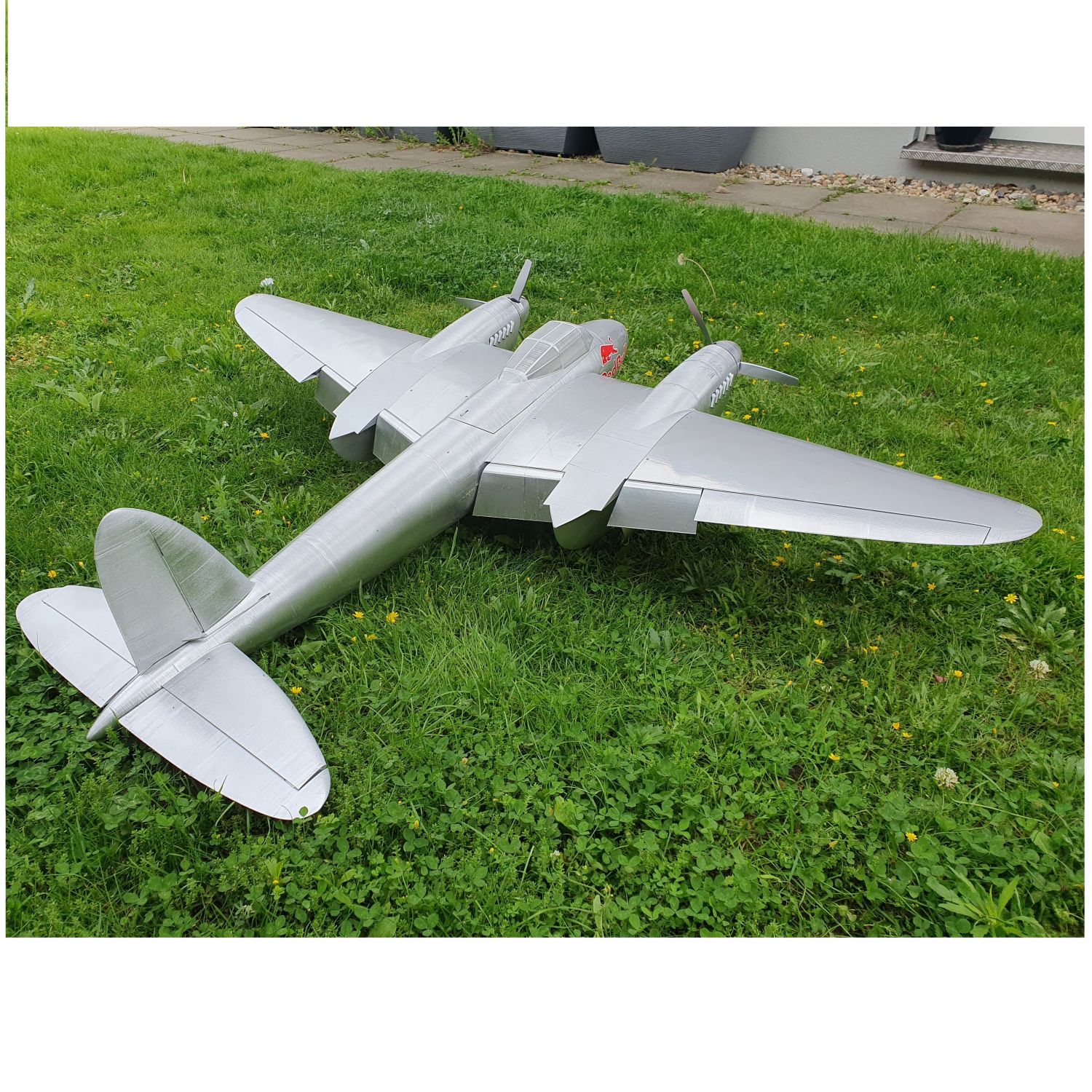

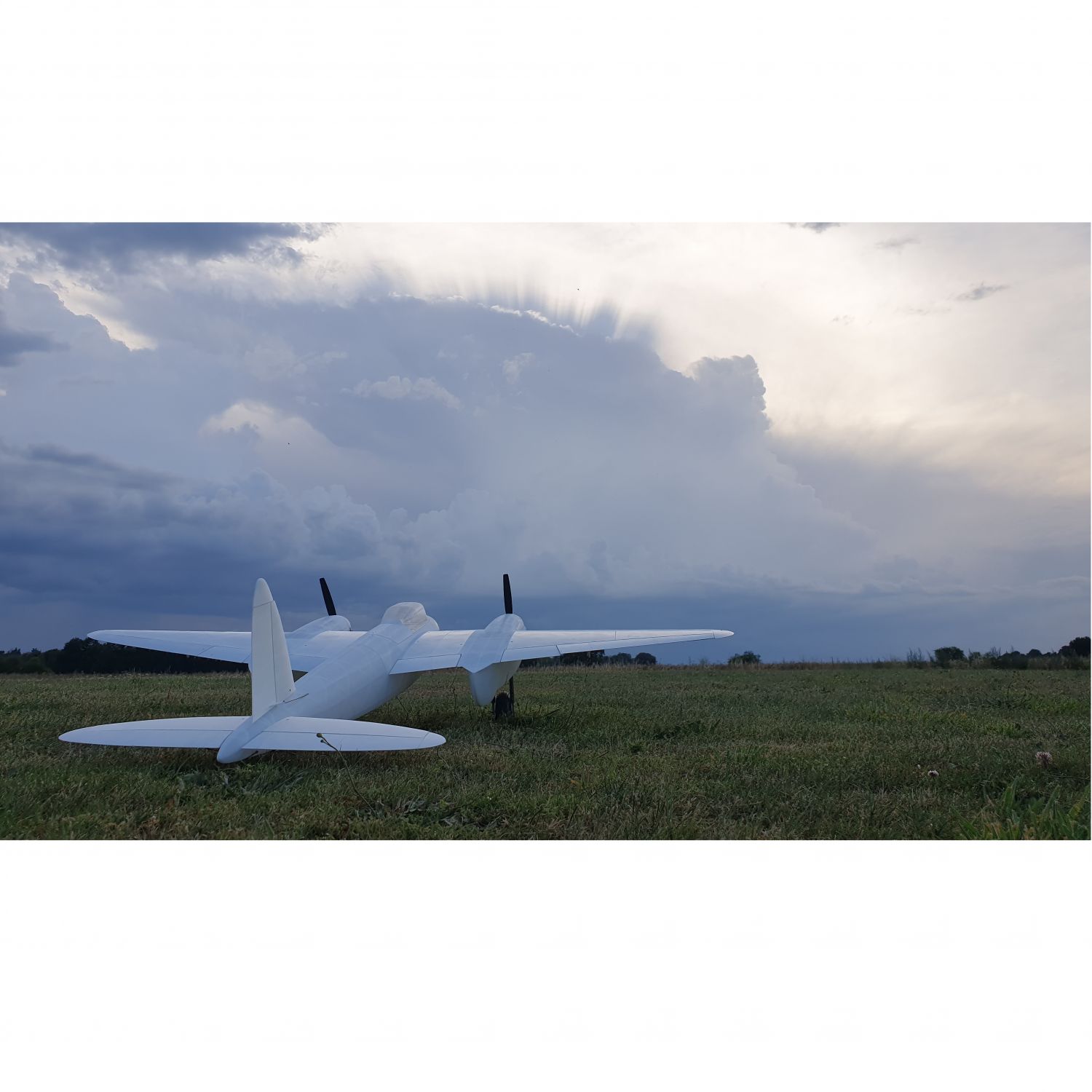

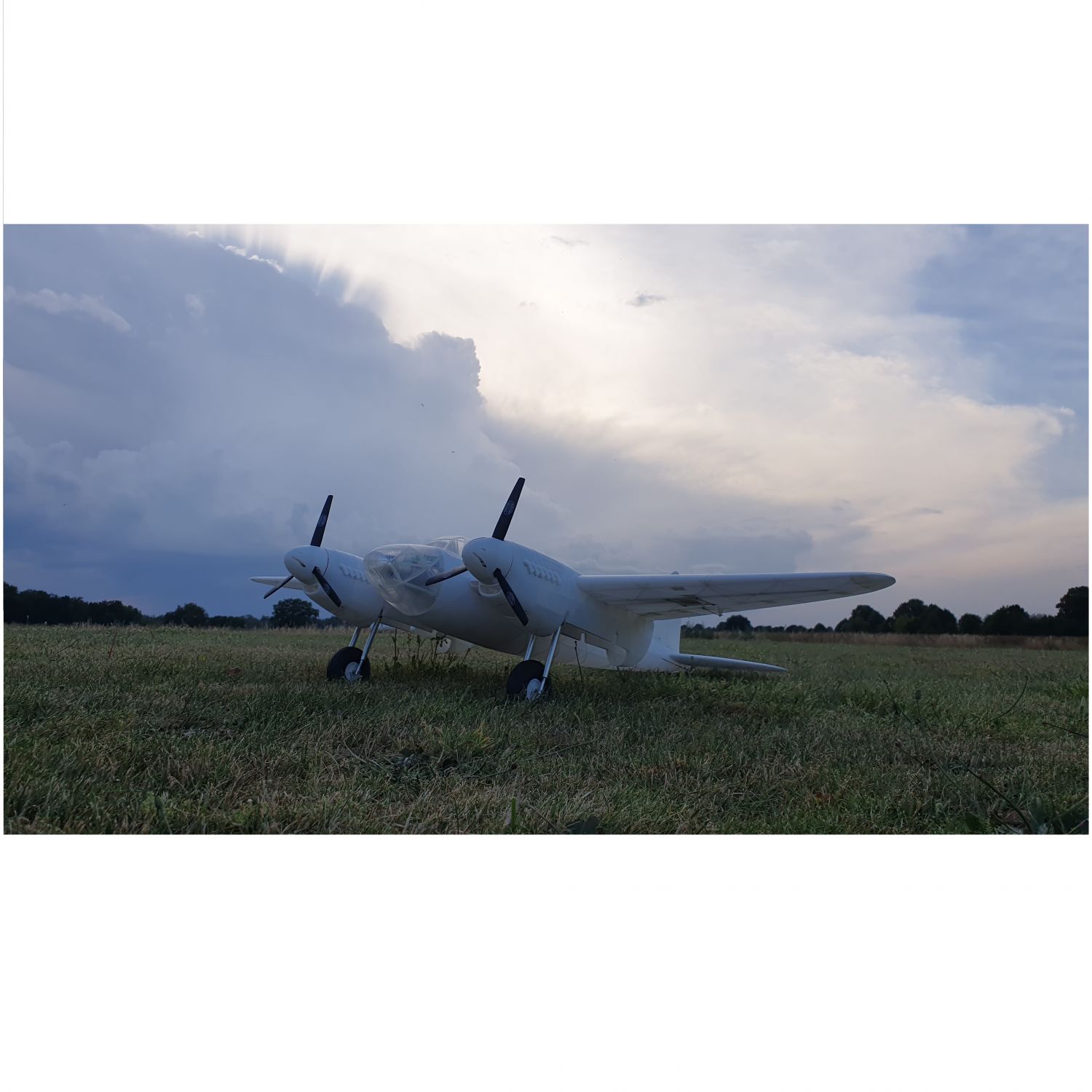

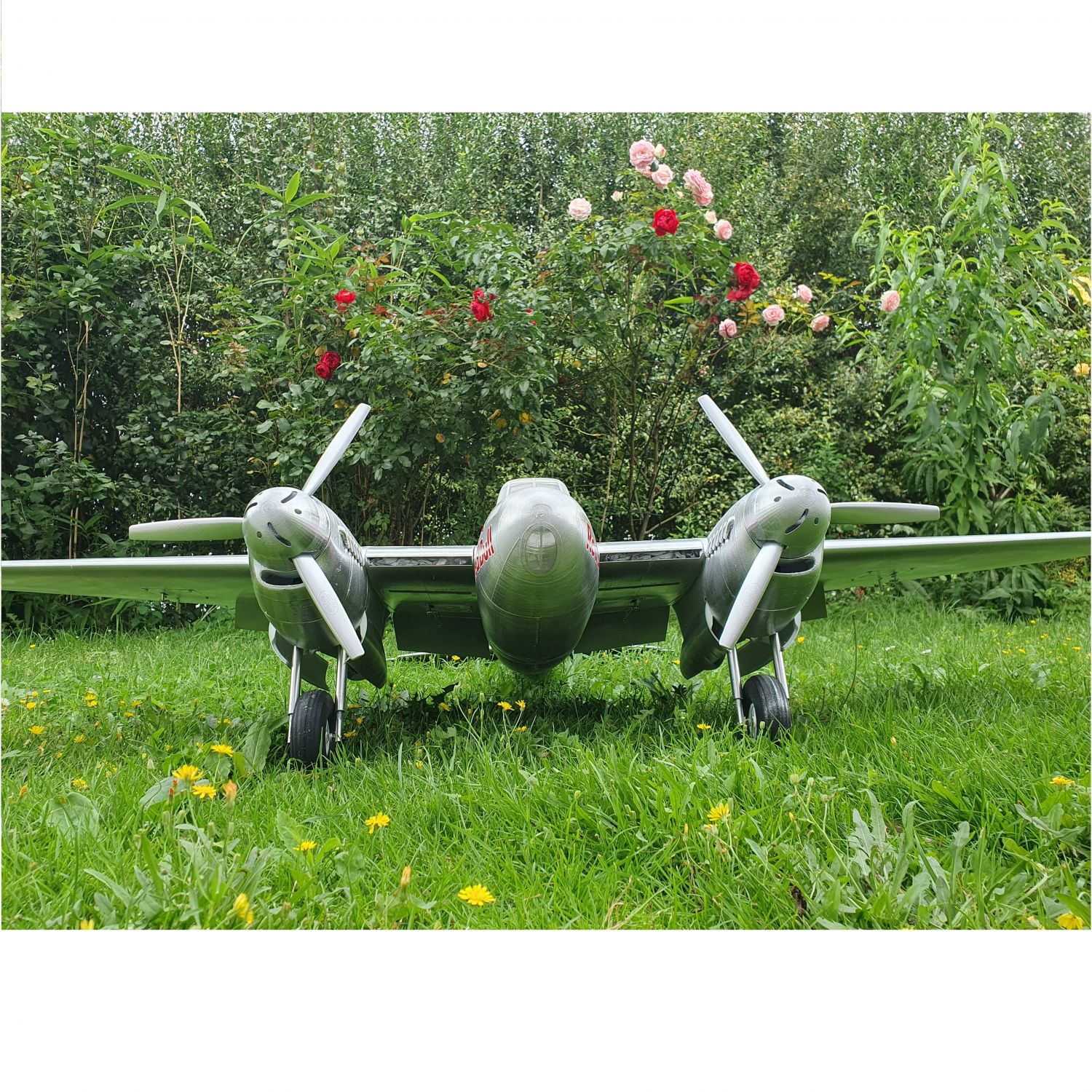

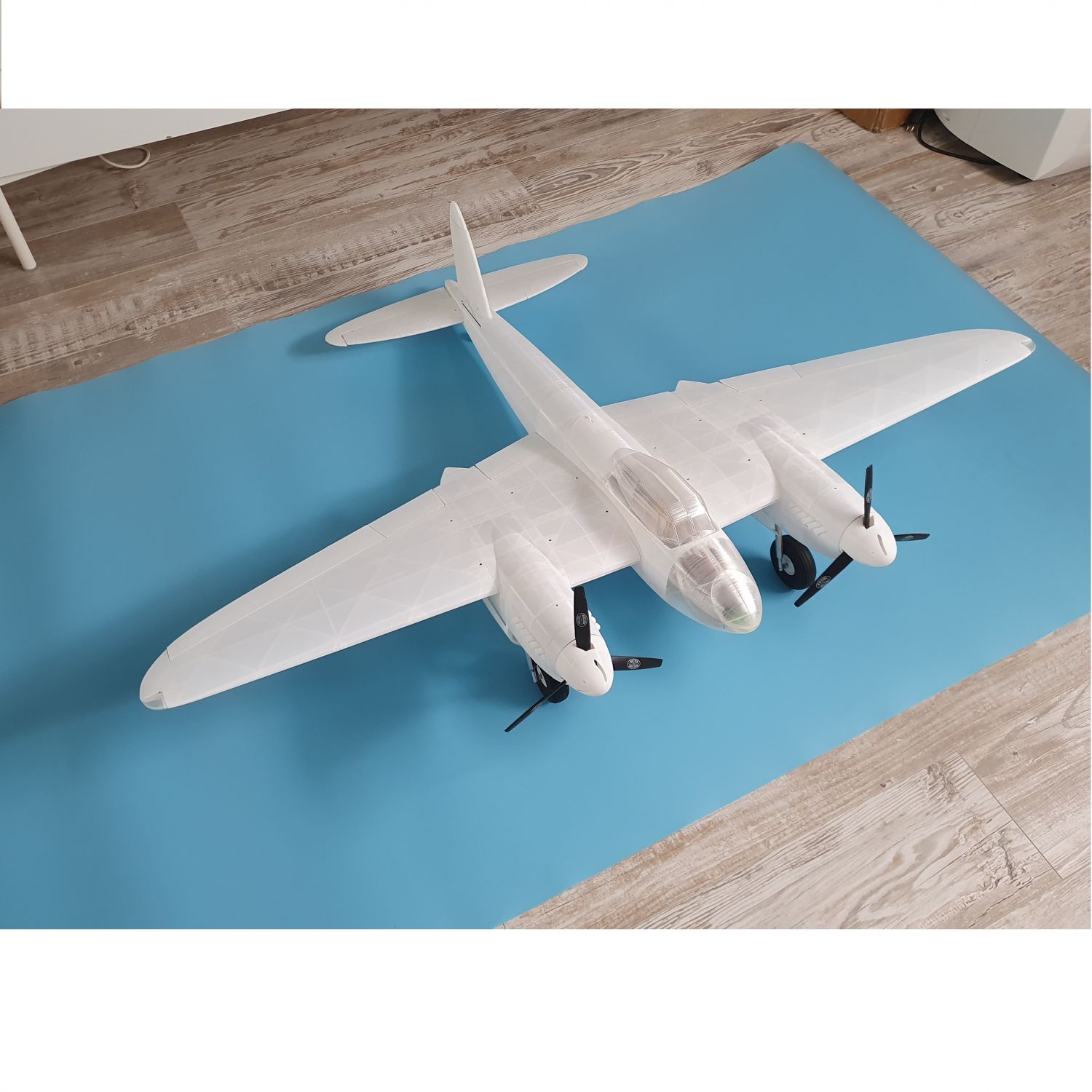

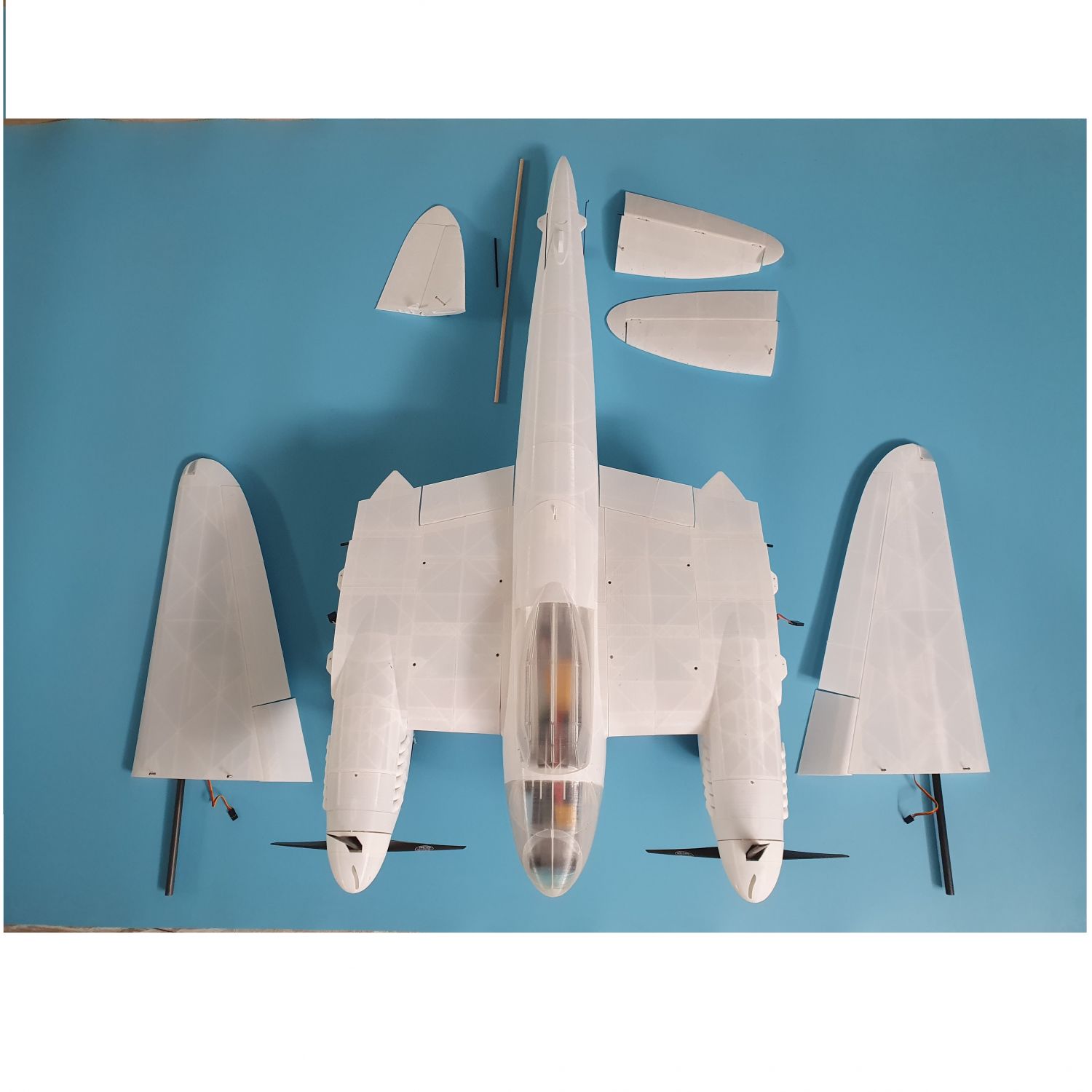

This replica of the iconic Mosquito designed for quick and easy construction. Printed using regular PLA and built around the 4250 800kv motor, this model has a significant amount of power and is happy to cruise around at 40% power on 4s whilst still being able to pull vertical in a climb. Utilizing 6 channels; Ailerons, Elevator, Flaps, Rudder,Throttle and retractable sprung landing gear,this model displays a high level of scale detail and holds a fantastic presence in the air. The modular design principle of this model lends itself beautifully to both easy disassembly for compact transport as well as quick repair should it sustain damage or hangar rash. Partnering with "Flit-Model Shenzhen", commercially available custom scale sprung gear legs have been designed for this model. Links to components used can be found on the last page of the user guide.

Flight and model videos:

https://www.youtube.com/watch?v=WjBnnjeUYAw&list=PLuDai25kX3VYS_RydxKW4enMbonXGT1Ew&index=3

https://www.youtube.com/watch?v=T2jSvknpy78&list=PLuDai25kX3VYS_RydxKW4enMbonXGT1Ew&index=4

https://www.youtube.com/watch?v=6SbC3RGErPY&list=PLuDai25kX3VYS_RydxKW4enMbonXGT1Ew&index=5

TEST FILES:
https://cults3d.com/en/3d-model/various/h-98-mosquito-1400mm-mk1-and-mk24-test-files

BUILD OPTIONS:
This model comes with different build options depending on the desired variant of mosquito. All variants of fuselage and nacelles fit universally with the wings and each other.

Build option 1 (FUSELAGE):

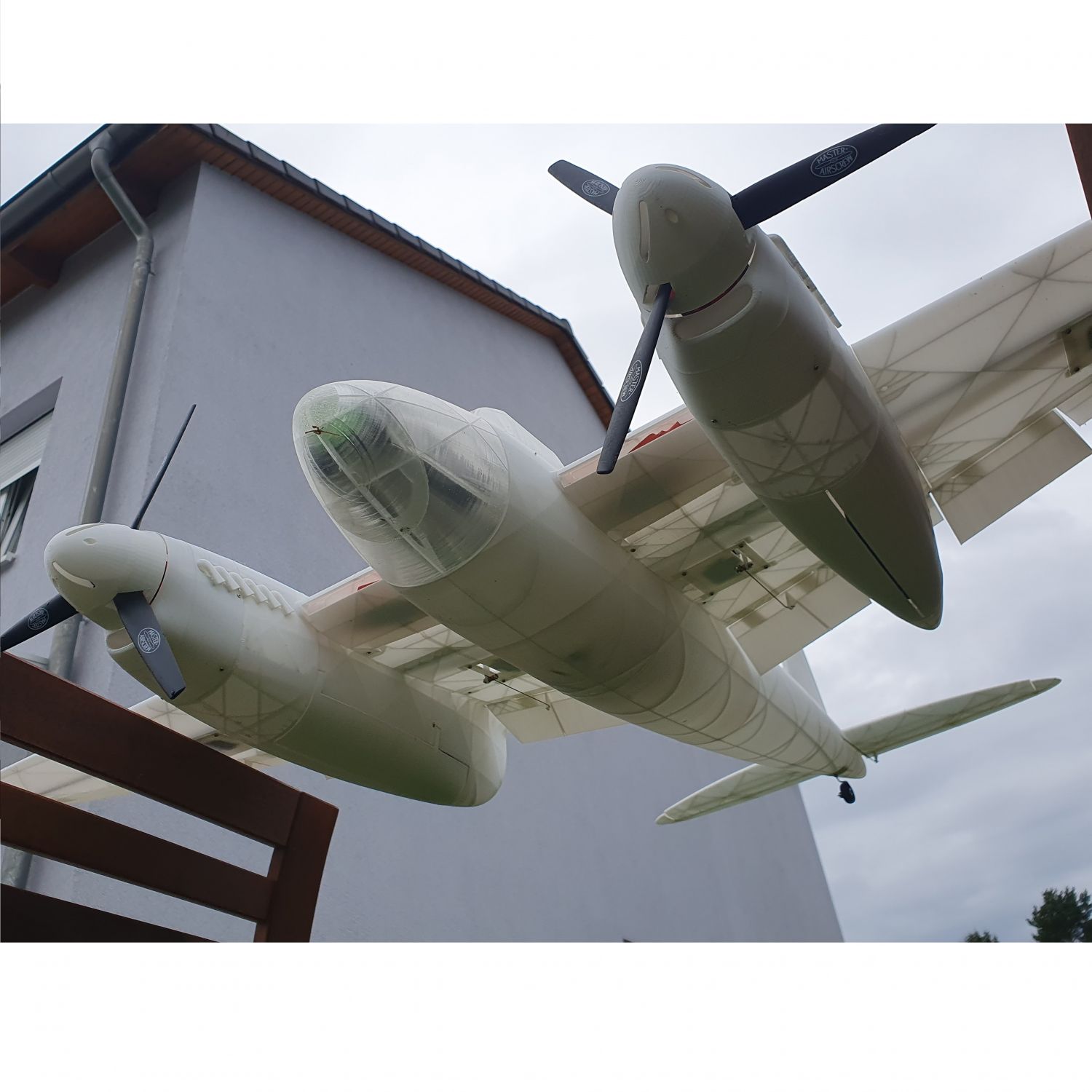

Recon fuselage (clear recon nose and windows)
Ground attack fuselage (8 gun nose)

Build option 2 - MK I VARIANTS:

Mk I regular (exposed exhausts)
Mk I night fighter (cowled exhausts)

Build option 3 - MKXXIV VARIANTS:

Mk XXIV regular (scoop intakes with exposed exhausts)
Mk XXIV night fighter (scoop intakes with cowled exhausts)

GENERAL SPECIFICATIONS:

WINGSPAN: 1400mm
PRINT WEIGHT: 1580g

FLYING WEIGHT: 3000g

ELECTRICS:

MOTOR: x2 4250 800kv brushless outrunner

ESC: x2 60ampSERVOS: x3 21g MG and x3 9g micro
BATTERY: 4000mah 4s - 5000mah 4s (550g - 630g)

INCLUDED:
Factory files for Simplify 3d
G-code files
STL files for all components
Detailed assembly manual and user guide
Print settings guide

MINIMUM BUILD VOLUME: 220mm x 220mm x 250mm

REQUIRED COMPONENTS:

x2 4250 800kv brushless motor
x2 60 AMP ESC
x1 4000-5000mah 4s (550g - 630g)

x3 21g MG servo
x3 9g standard servo

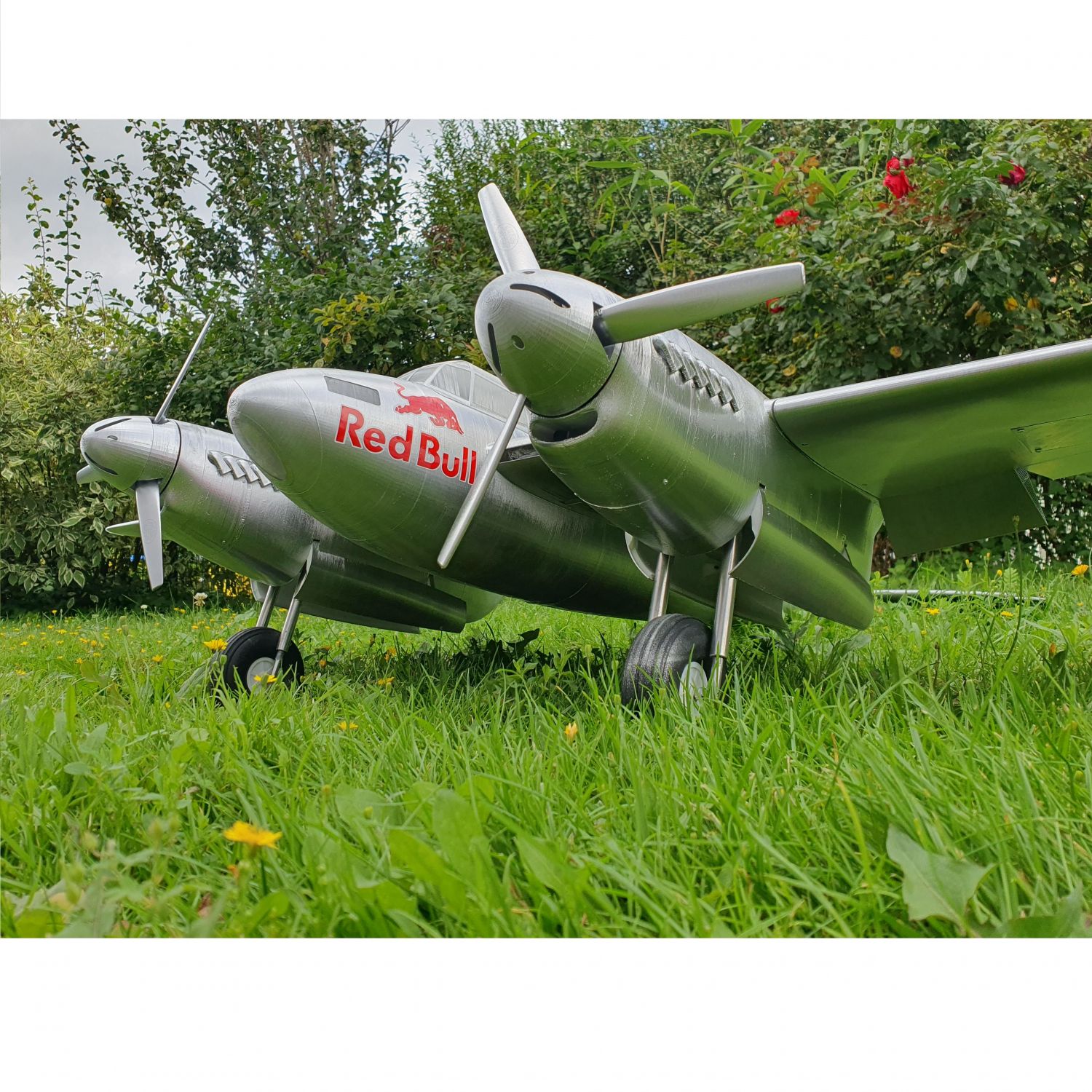

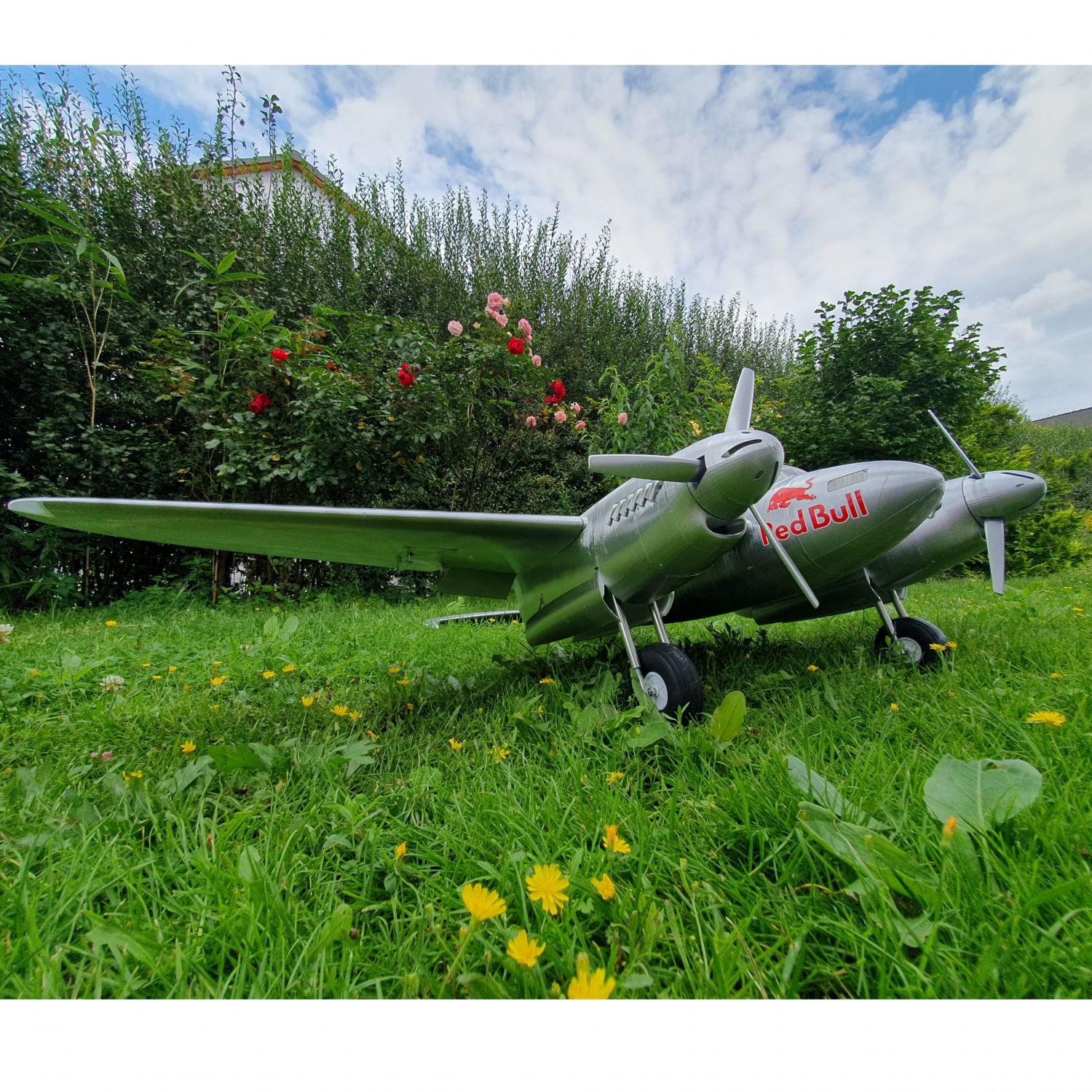

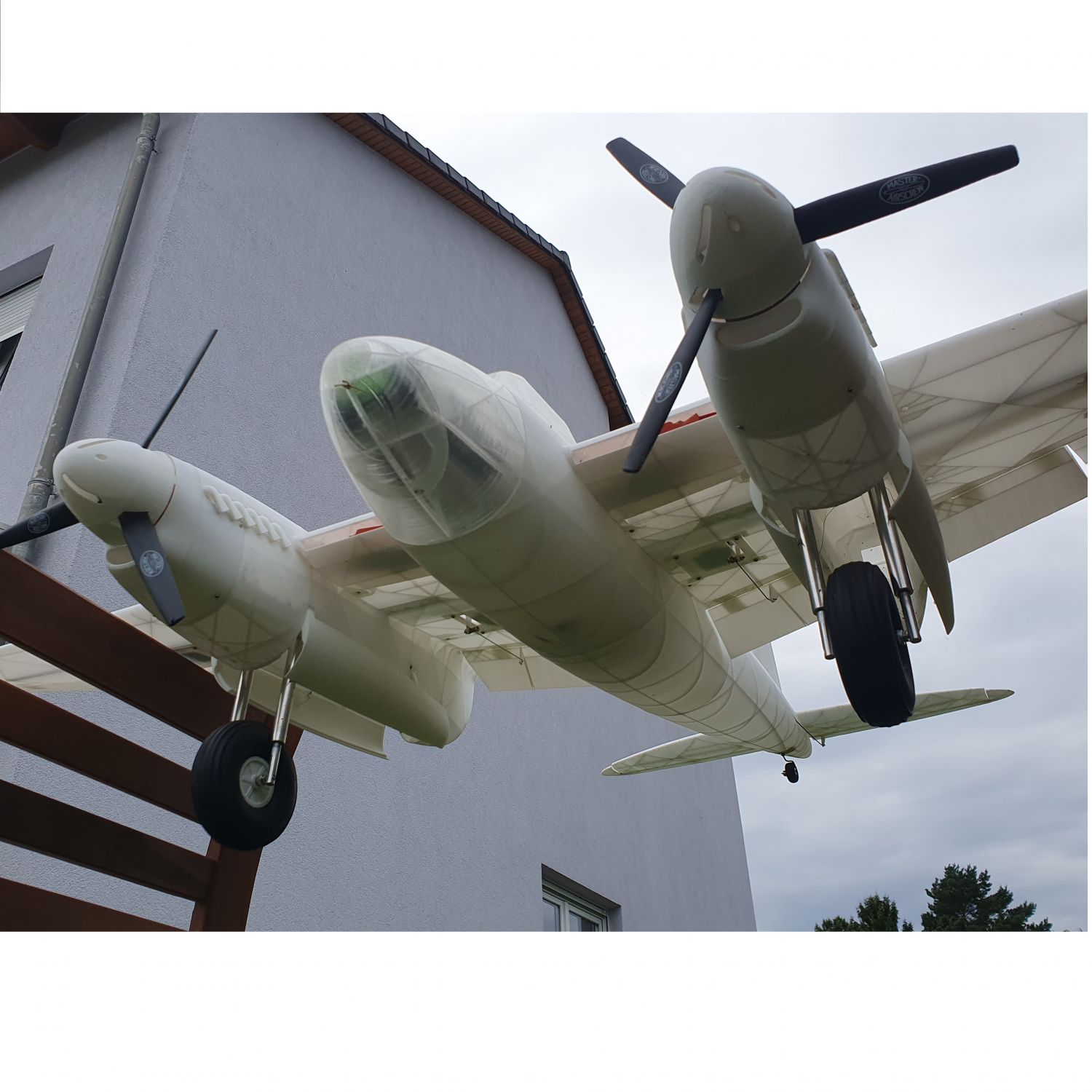

x2 5kg servoless retracts

x2 sprung main gear legs (see parts links)
x1 1mm pushrod wire (100mm)
x2 1.2mm steel wire (650mm min length)
x1 m2 steel rod (100mm)
x2 1mm round carbon rod (500mm)
x1 3mm square carbon rod (80mm) must have round hole
x2 3mm square carbon rod (120mm) can be solid (flap torque tube)
x1 6mm wooden dowel (500mm min)
x14 16x29mm nylon pinned hinges
x1 xt-60 Y-harness battery connector
braided fishing line (20lbs)
m2 screws (5mm, 8mm, 10mm, 12mm, 14mm, 20mm)
3mm BAMBOO FOOD SKEWERS
