Macchi C.202 Folgore/205 Veltro 600mm

The Folgore (Italian "thunderbolt") was an Italian fighter aircraft developed and manufactured by Macchi Aeronautica, in Italy. It was operated mainly by the Regia Aeronautica (RA; Royal (Italian) Air Force) in and around the World War II. Designed by a team lead by Mario Castoldi, it is generally considered the best Italian fighter to operate in large numbers during the conflict. In combat, it very quickly proved itself to be an effective dogfighter against its contemporaries. During its service life, the C.202 was deployed on all fronts in which Italy was involved, from North Africa to the Russian campaign.

The C.202 (or M.C.202) followed the C.200 Saetta moving from a radial engine to an Italian-built version of the German Daimler-Benz DB 601A along with several streamlining improvements on the airframe. The key negative points on the Folgore were the lack of armament and complex construction requiring much more time to produce than say, the BF-109.

The C.205 was the next step, moving to the more powerful DB 605 engine and better armament, this translated into a higher wing loading and slightly different fuselage front. The C.205 was apparently at par with the famed Mustang and Spitfire. Sufficiently so that the Luftwaffe used a number of these aircraft to equip one Gruppe.

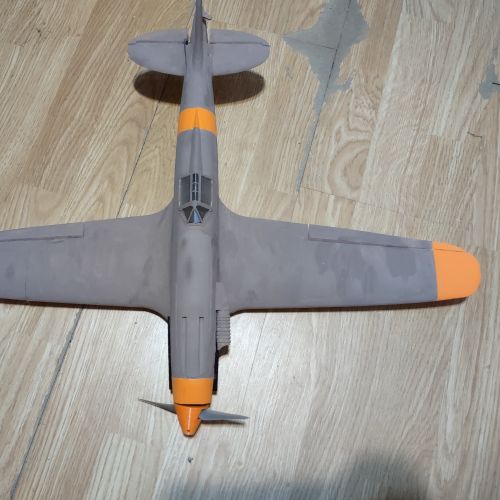

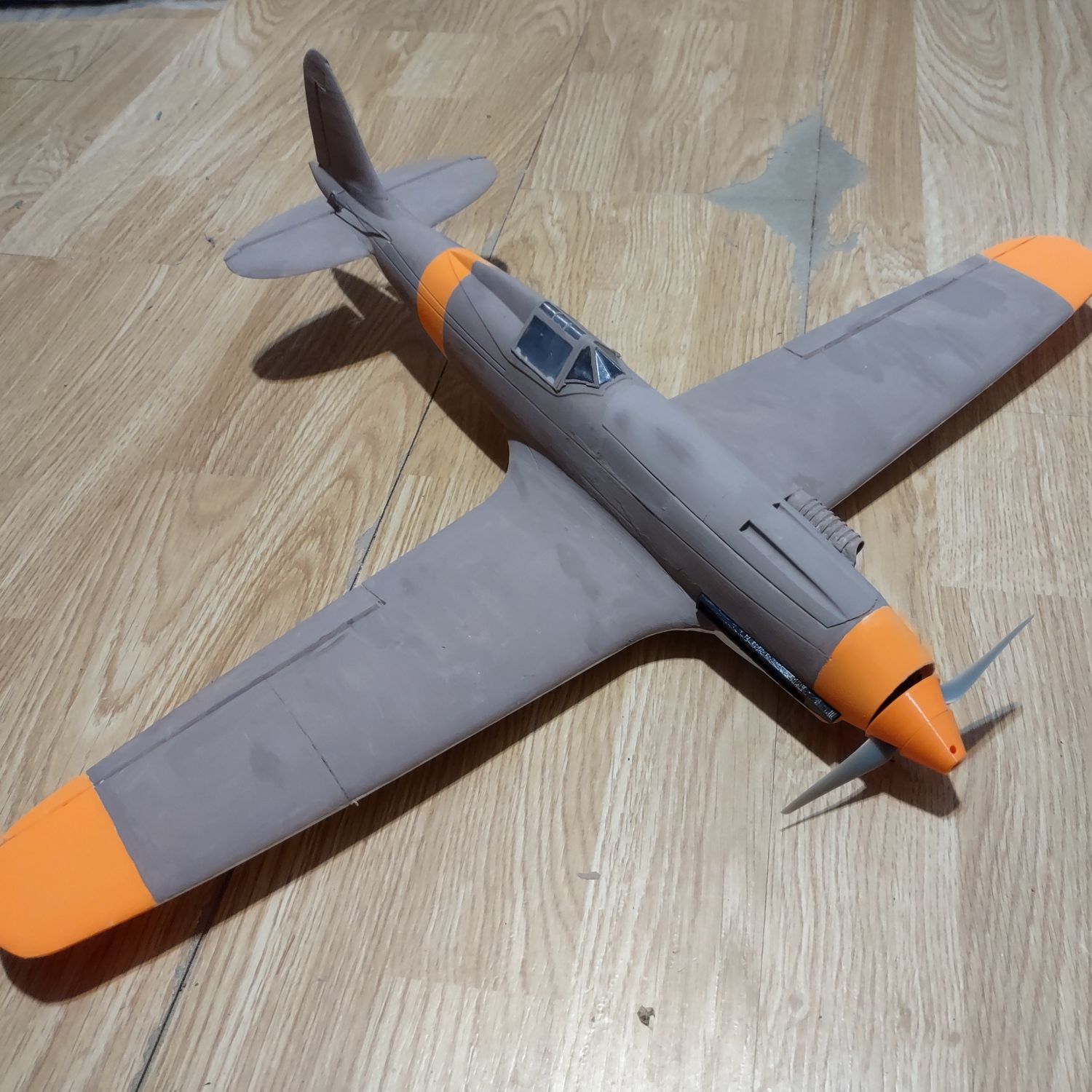

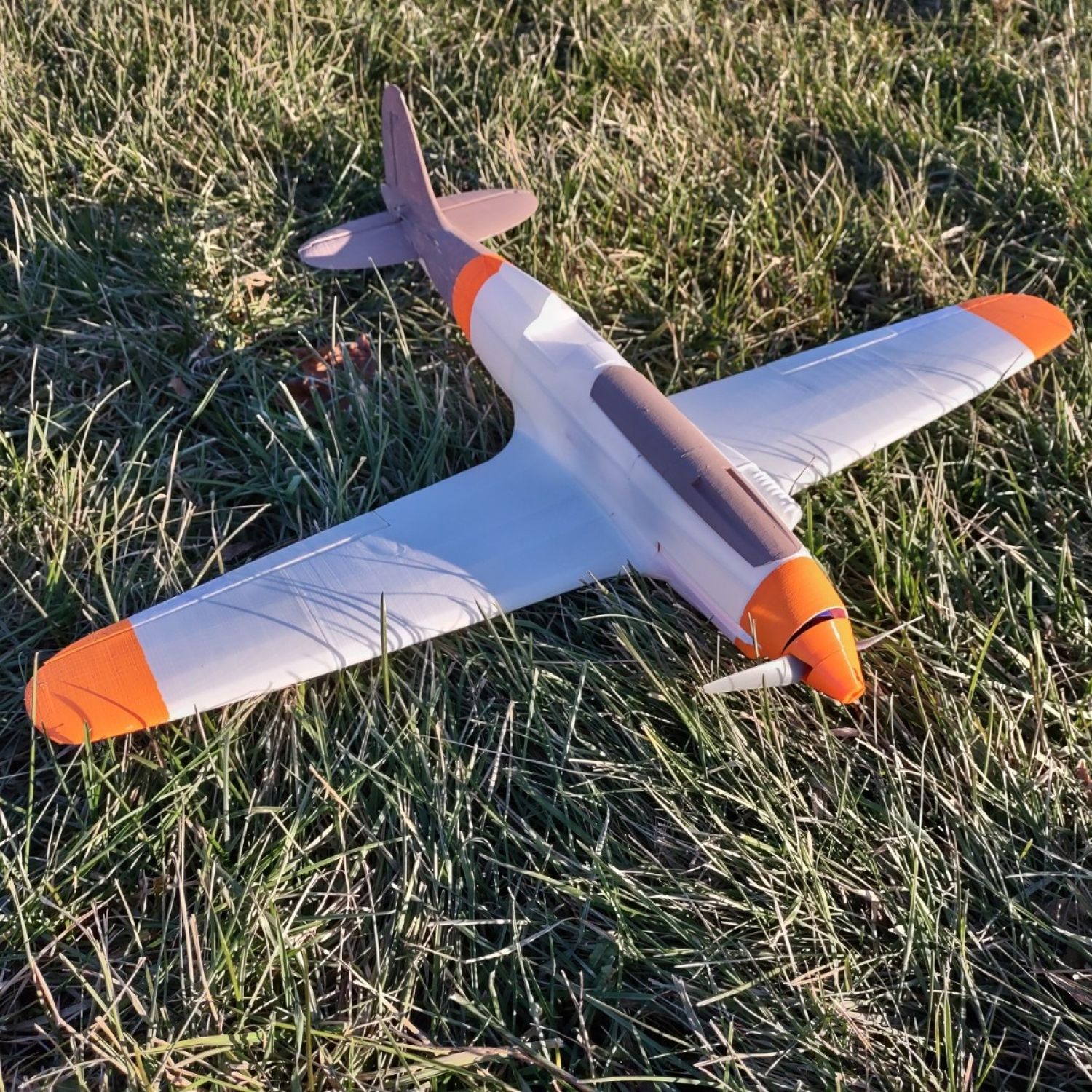

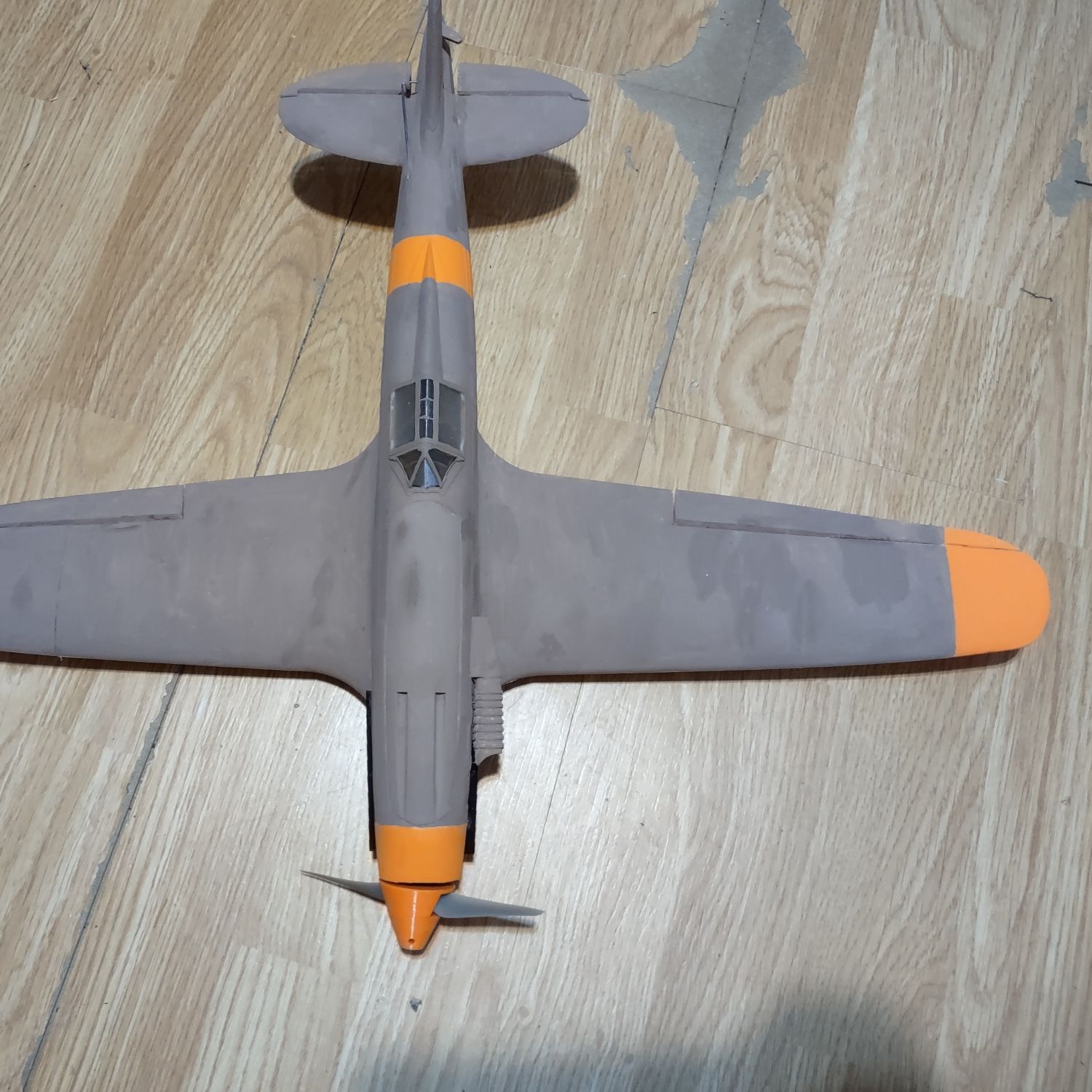

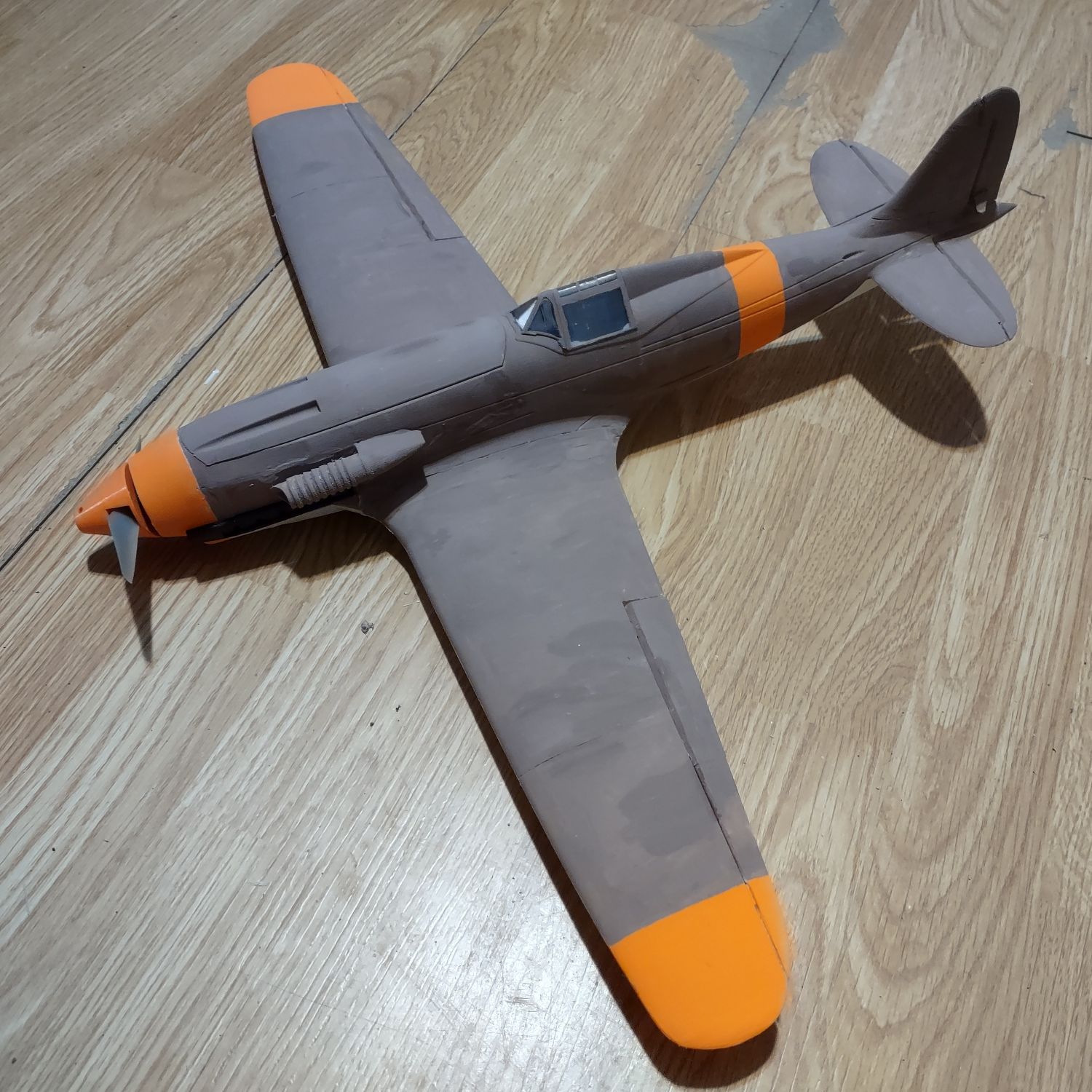

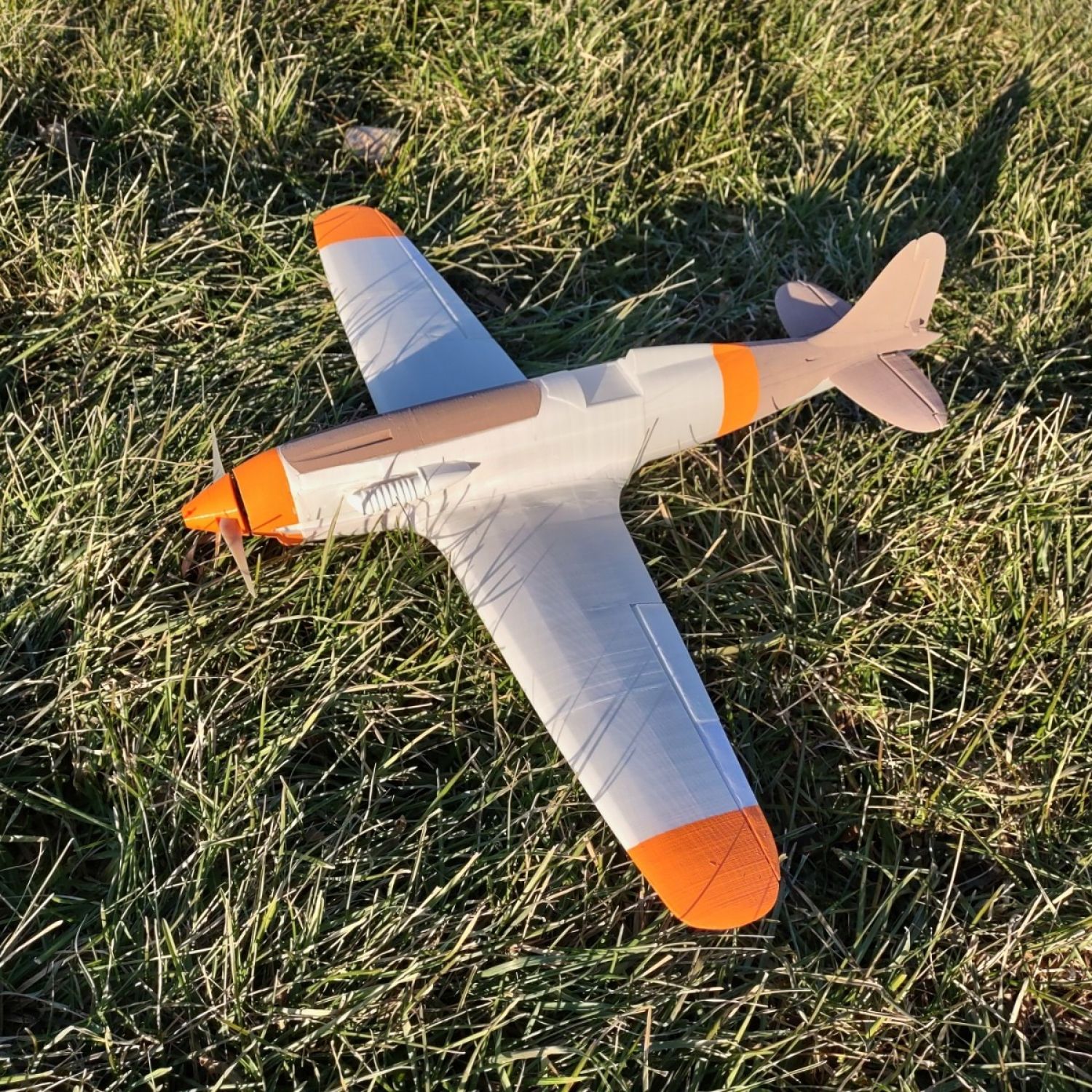

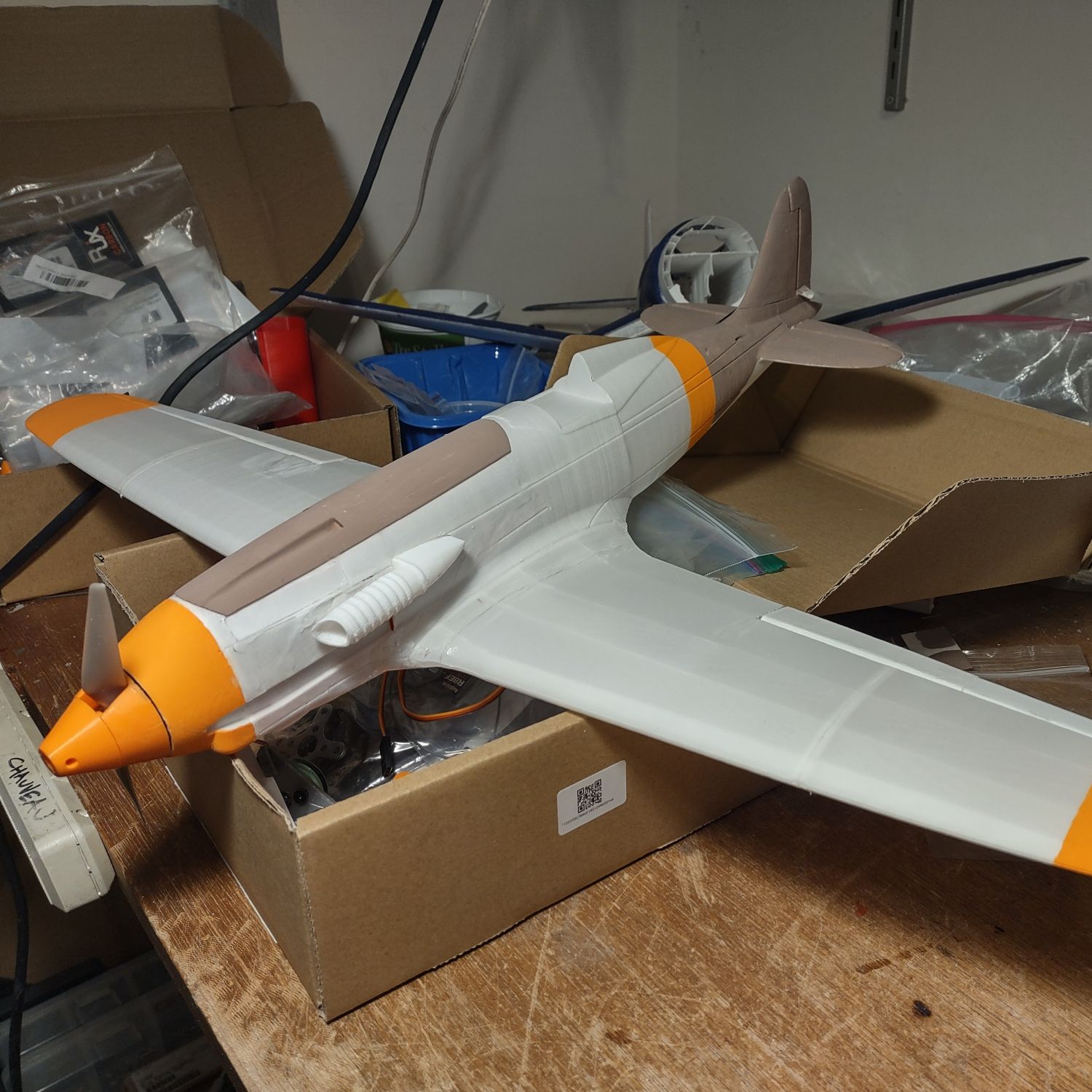

This 600mm wingspan rendition is powered by a BR2205 or QM2804 with 2300Kv and is designed to be printed in LW-PLA, with a few key parts in PLA, like the motor mount, spinner, exhaust stacks, air filter and engine cooler, propeller blades and hub. The design has carefully planned internal structures for LW-PLA slicing resulting in clean parts without any oozing and unwanted curlies trapped inside.

Included with this file:

·         3MF files for Cura (4.13.1)
·         Factory files for Simplify3D
·         STL files for all components
·         Assembly manual and user guide

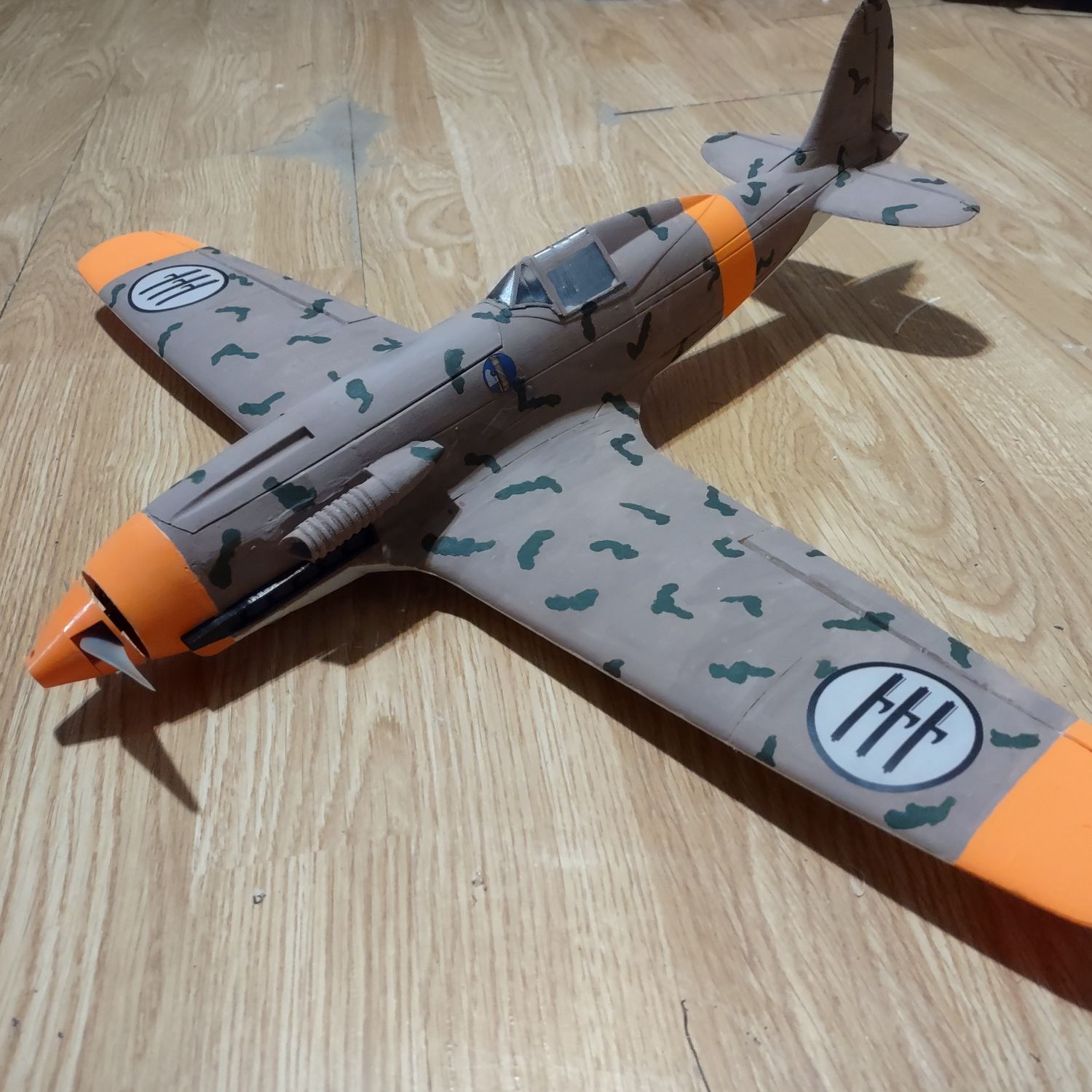

·         Sample markings

UPDATES:
2022-11-23: Added Cura files
2022-01-11: Updated start-up scripts and some factory clean-up.
2022-02-18: v1.4 updated start scripts and factory files
2022-06-01: Added improved 202 fan spinner for APC prop

ASSEMBLY MANUAL AND USER GUIDE

FLIGHT VIDEO:
1st flight: 2021-12-14: https://youtu.be/5a5afEyBsjc

Print time: 85hrs
Print weight: 125g
RTF AUW: 250g with 3x3.7g servos, 2804 2300Kv, 3S 550mAh.

REQUIRED COMPONENTS:
X1 2205/2804 2300Kv Motor (or similar)
X1 20AMP ESC
X1 500MAH 3S LIPO (or similar), 59g
X3 3.7G Micro Servo (X4 if installing working rudder)
X1 4ch+ Micro Receiver
X1 3mm carbon rod (2x 200mm wing joiners)
X1 2mm carbon rod/round toothpicks (stab joiners)
X1 1mm Music Wire (pushrods and elevator torque rods)
X4 6x2mm Magnets (cylinder shape)
X4 M2x10mm screws (fix the motor mount to firewall)
CA Hinge Sheet
Velcro (sticky back)
Some extra 1.75mm PLA filament (locating pins and fuselage stiffeners)

OPTIONS

-       Choice between C.202 Folgore or C.205 Veltro; 2 nose sections with the distinctive oil coolers of each type and matching spinners for the types

-       Parts are provided to install a functional rudder

-       A 2 bladed hub with printed propellers or a 2-bladed APC style prop can be used.

PRINT VOLUME:
200x200x210
All the parts will fit in a 200x200x200 printer. Best to print 1 part at a time, especially for LW-PLA for optimum print quality and no oozing.

For any questions and assistance please use the RC-Group thread:
https://www.rcgroups.com/forums/showthread.php?4021281-Macchi-C-202-Folgore-205-Veltro-warbird-600-800mm-LW-PLA-%28L3D%29

PARTS LINKS

X1 2205 2300KV Brushless Out-Runner Motor
https://www.banggood.com/Racerstar-Racing-Edition-2205-BR2205-2300KV-2-4S-Brushless-Motor-CWCCW-Green-For-QAV250-ZMR250-260-p-1088307.html
Or
QM2804 2204 2300KV
https://www.aliexpress.com/item/4000002657801.html

X1 20AMP ESC
https://fr.aliexpress.com/item/4000078165193.html

X1 550MAH 3S LIPO
https://www.banggood.com/2Pcs-ZOP-Power-11_1V-1000mAh-70C-3S-Lipo-Battery-XT30-Plug-p-1642546.html

X3/4 3.7G Micro Servo
https://www.aliexpress.com/item/32965734270.html

X1 Micro Receiver
Low cost 4ch FrSky compatible receiver:
https://fr.aliexpress.com/item/1005002848770421.html

X2 2mm carbon rod (preferred, stab half joiners)
or
X2 2mm round toothpicks

X2 6x2mm Magnets (cylinder shape)
https://fr.aliexpress.com/item/1005002408460344.html

CA Hinge Sheet
https://www.banggood.com/RJXHOBBY-CA-Hinge-Sheet-180mmx140mmx0_3mm-Maintenance-Board-Repairing-Tool-p-1239531.html

VELCRO – (local hardware store)
Velcro strip with adhesive back.

M2 x10mm screws
https://www.ebay.com.au/itm/400PCS-M2-M2-6-Pan-Head-Self-Tapping-Screws-Assorted-Kit-Stainless-Steel-Black/254399626404

3D PRINTING

LW-PLA parts

·         print head = 250 deg c

·         print bed = 60 deg c

My designs are always evolving - seeking better techniques and listening to feedback from builders and flight testing. This design explores a very light fuselage concept using 5 lengths of PLA filaments to reunite the fuselage sections together.

With the carefully design inner structures, there is no need to activate the Vase Mode in Simplify3D; the careful design along with judicious positioning and slicer settings will give you clean parts without any unwanted oozing – as long as you print 1 part at a time.
