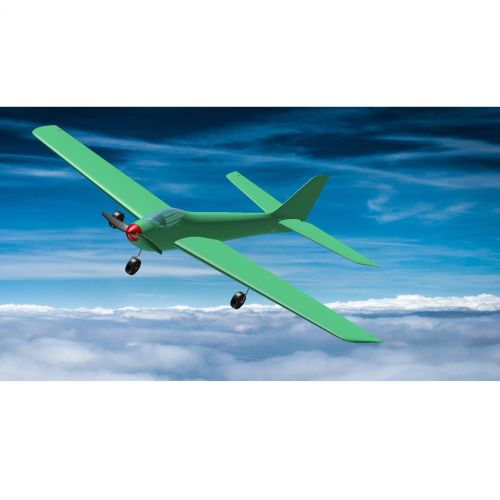

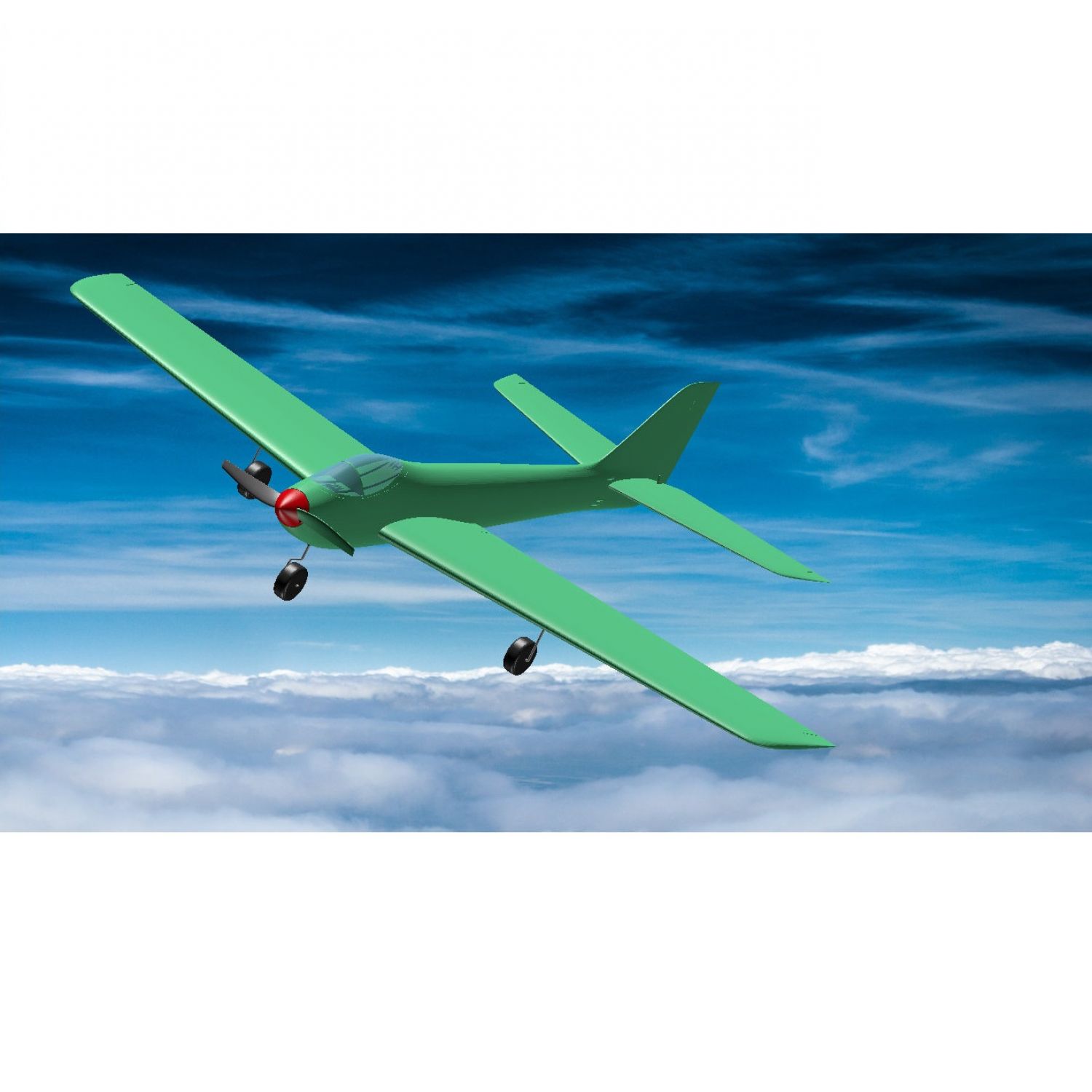

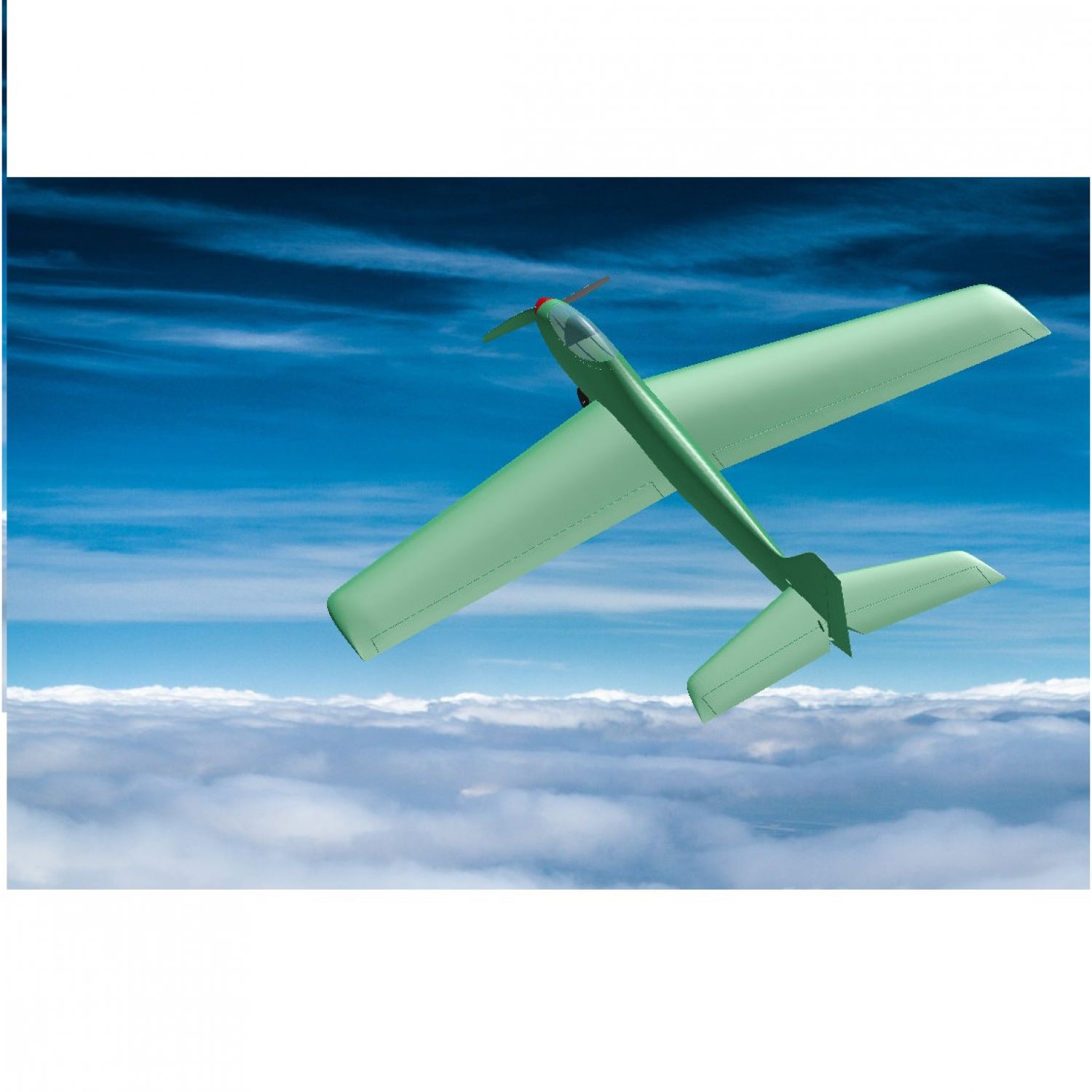

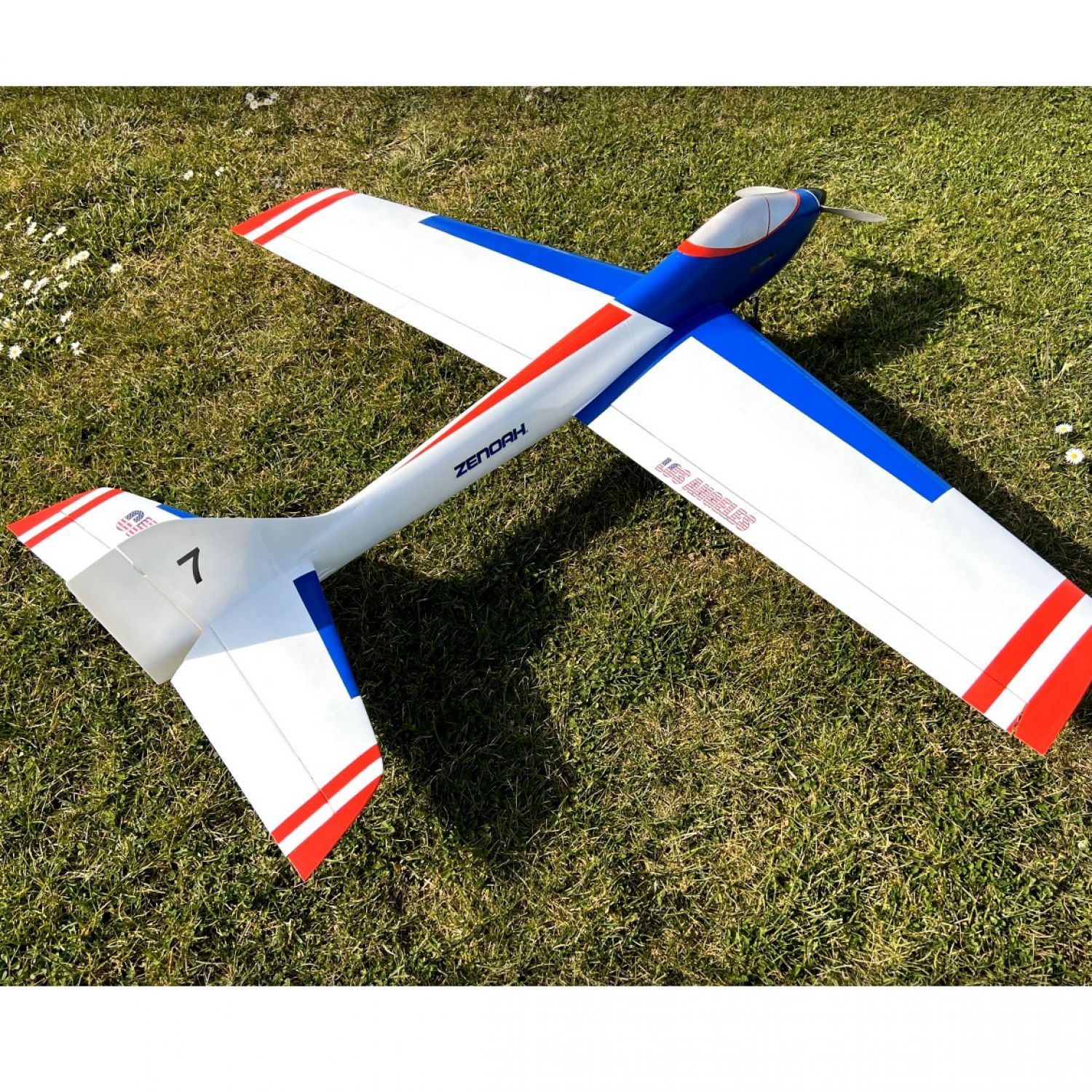

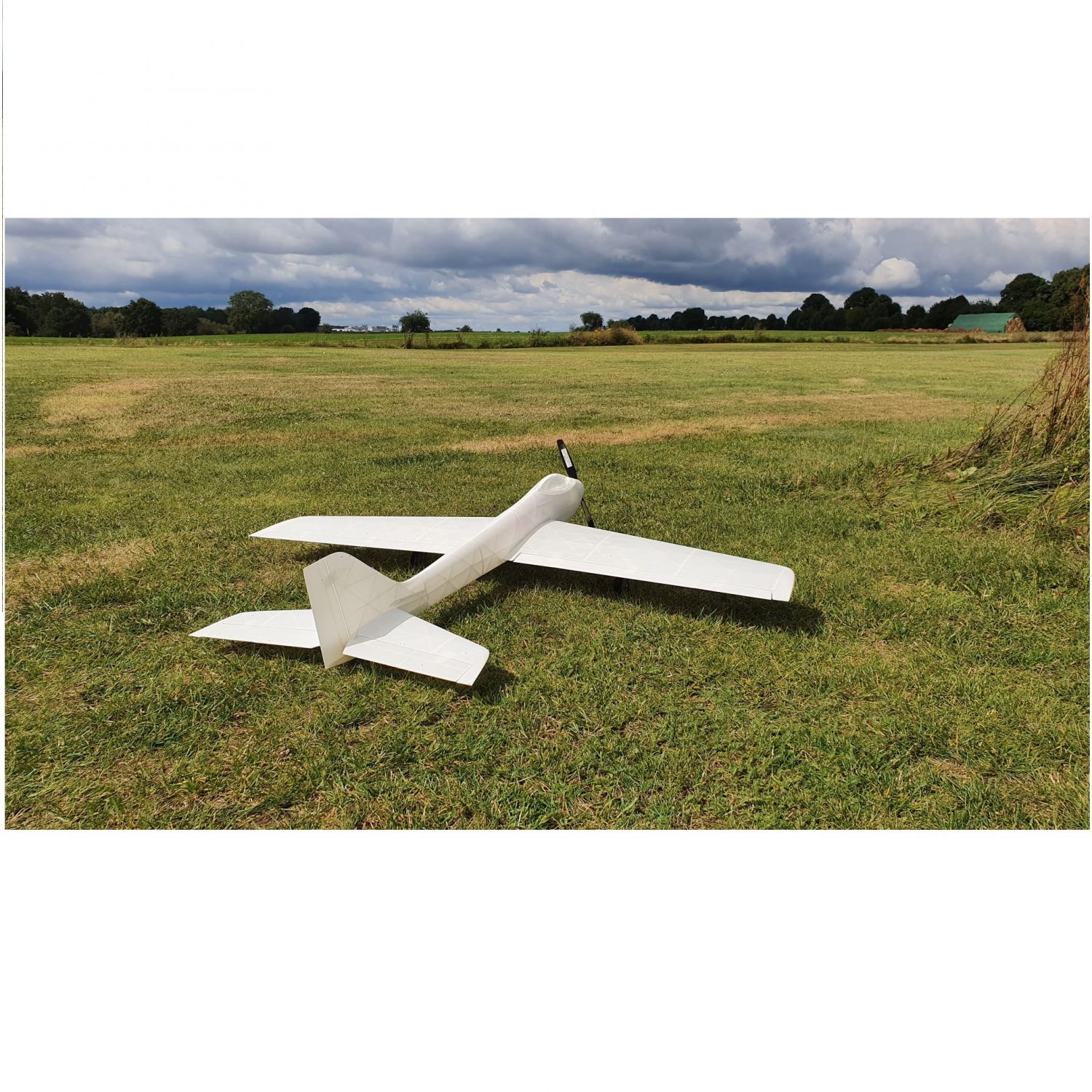

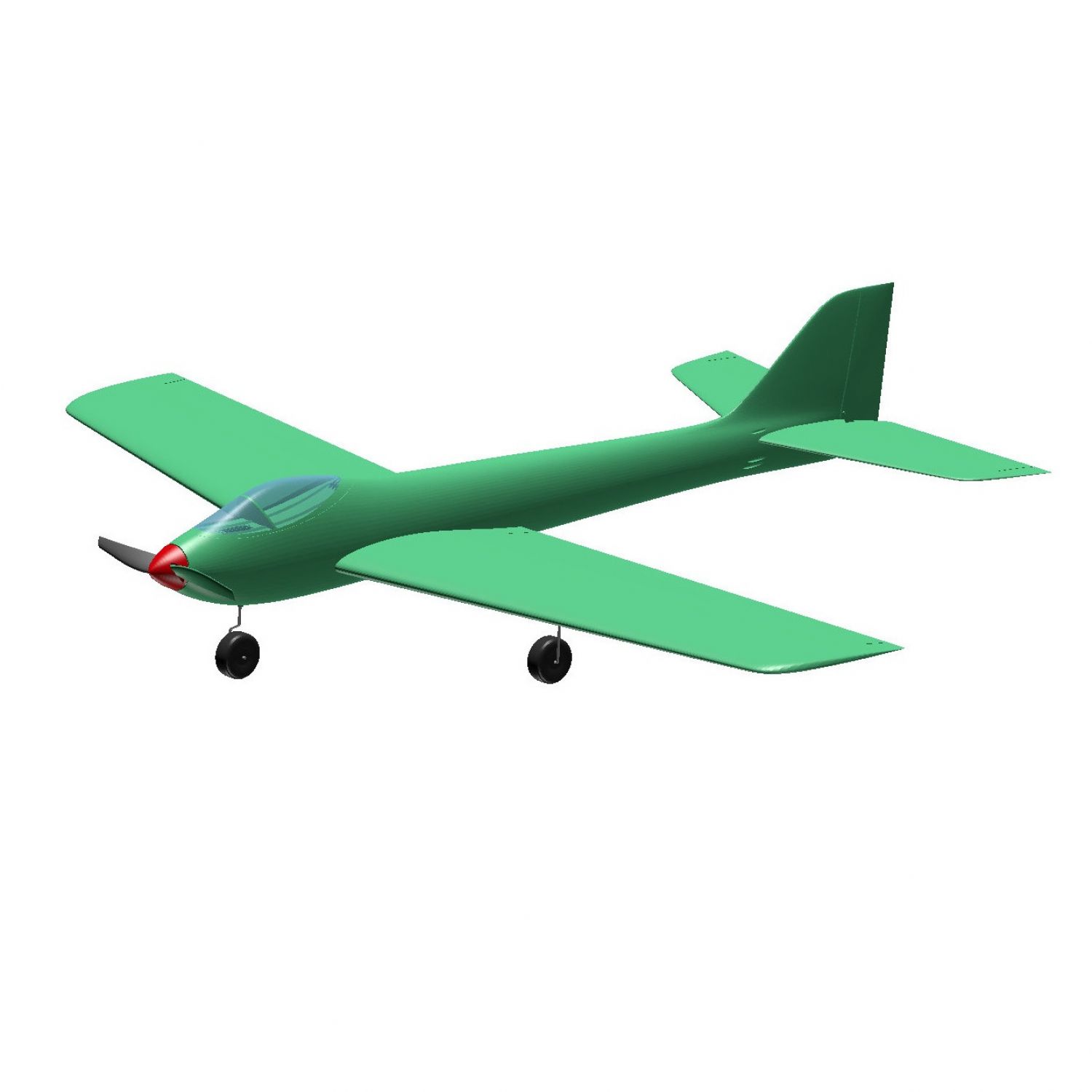

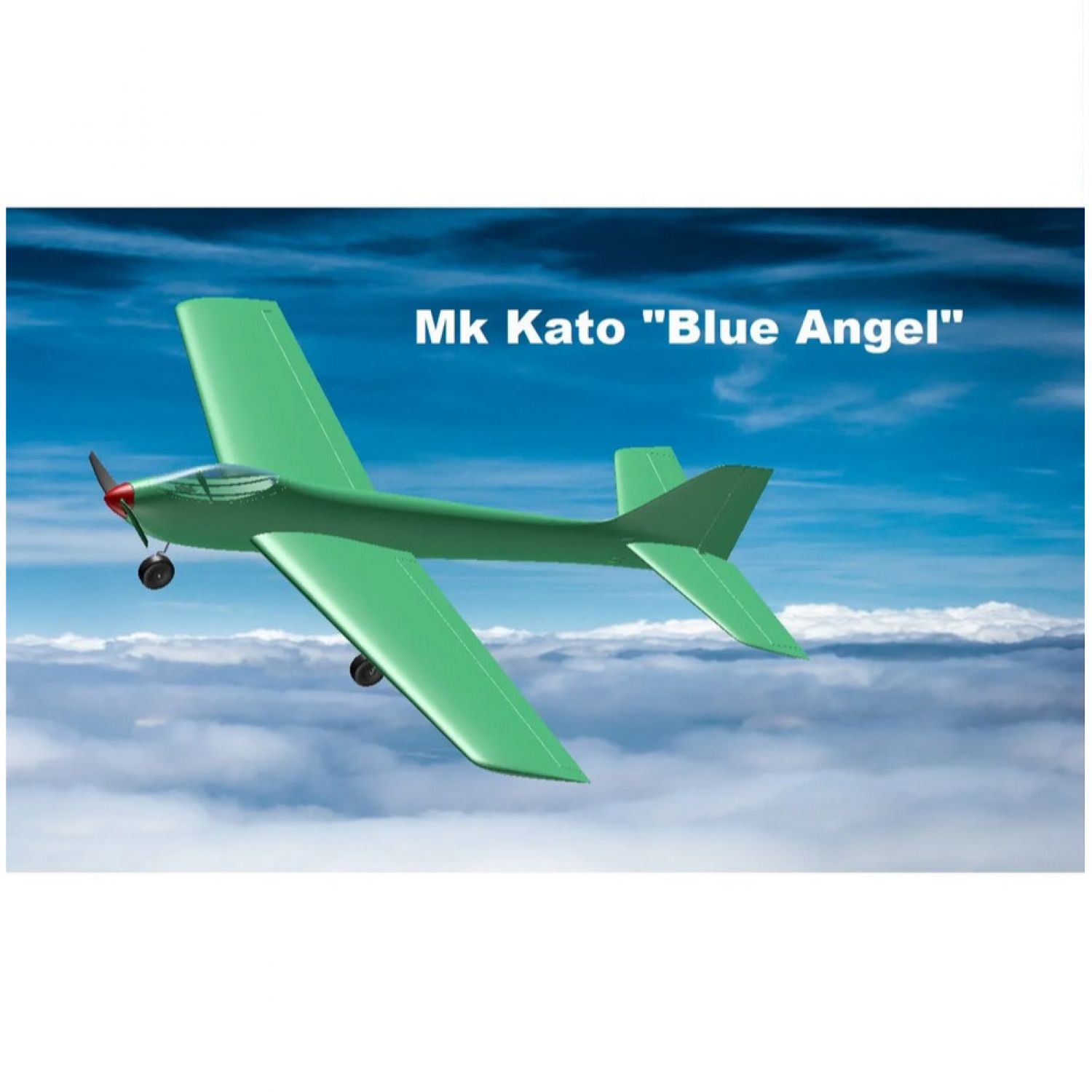

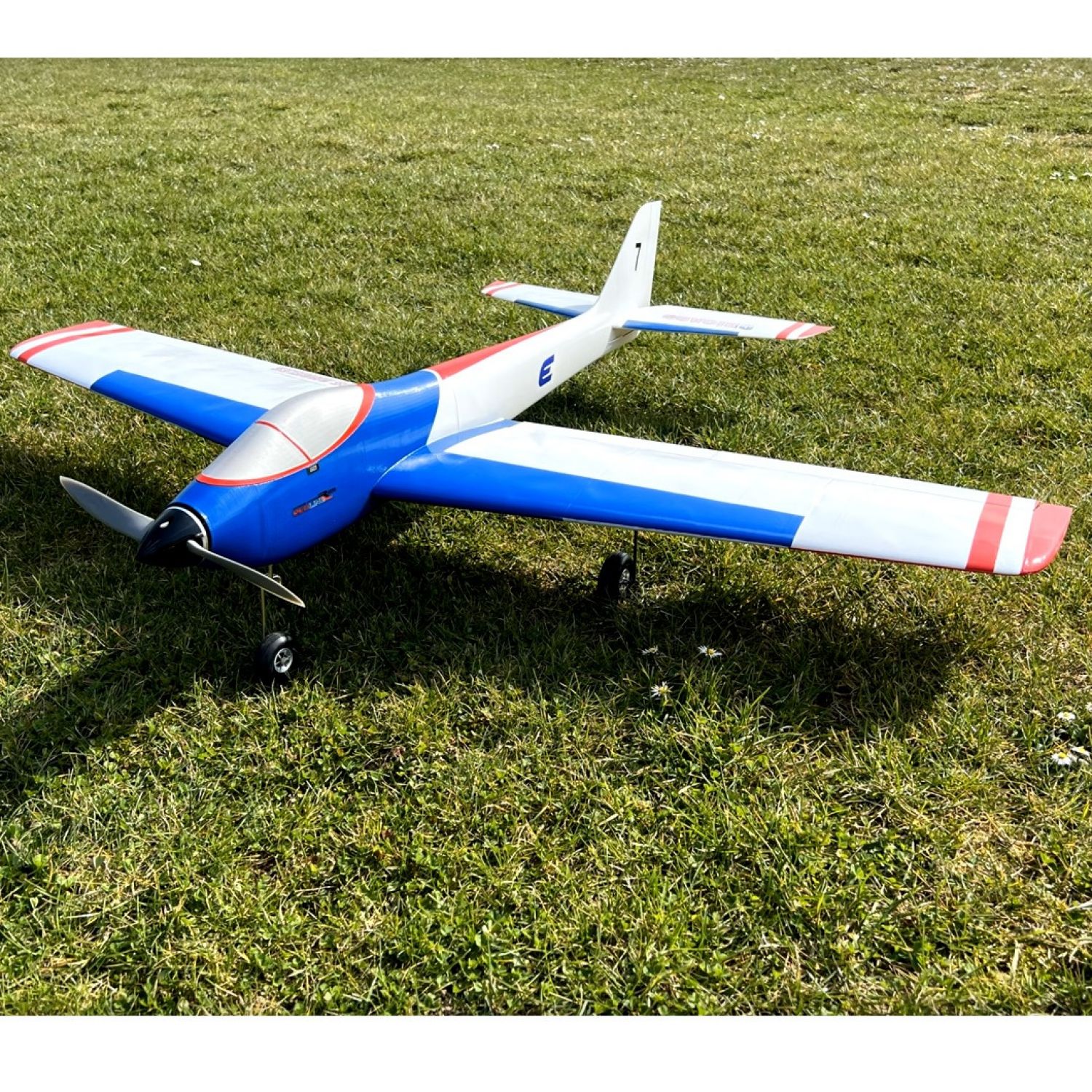

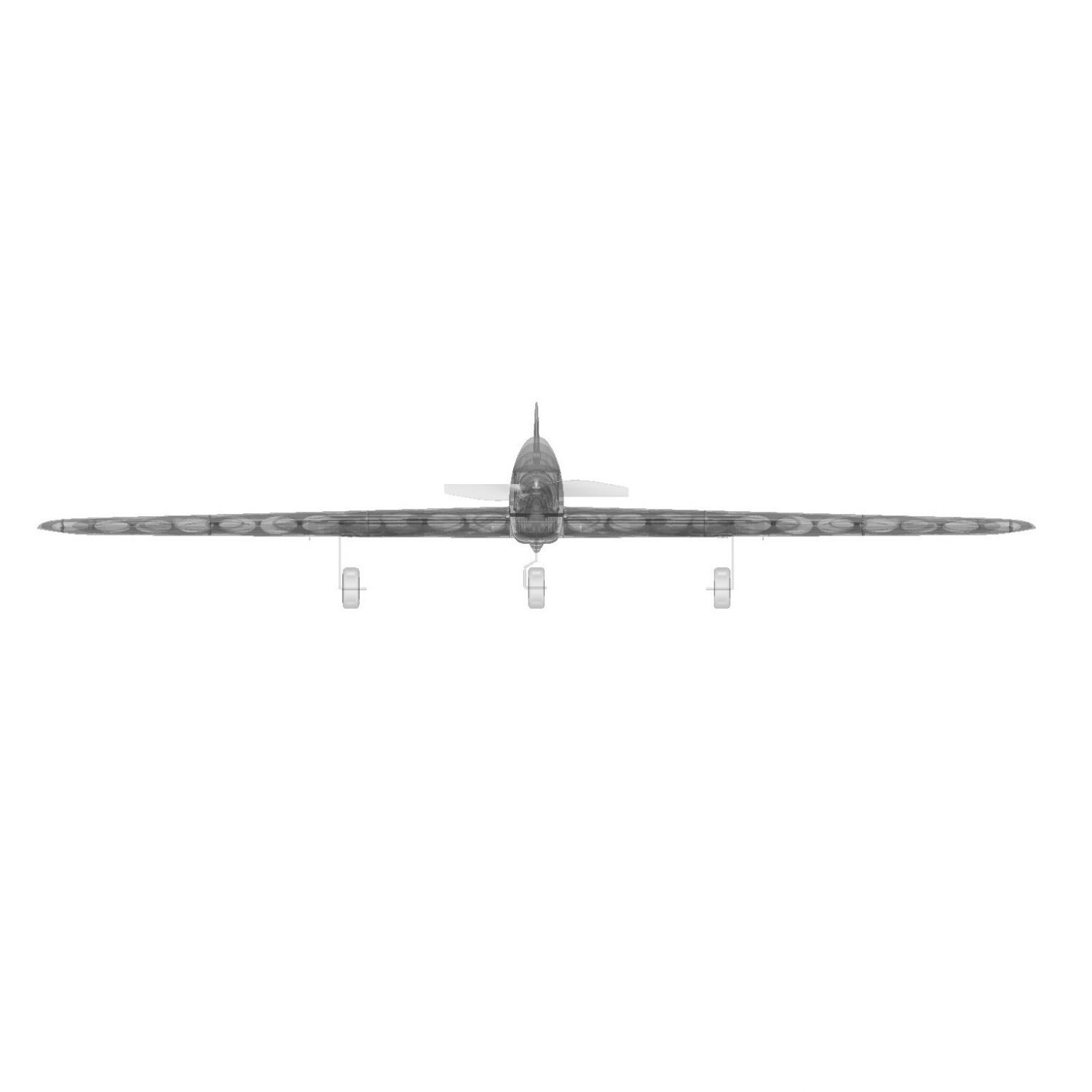

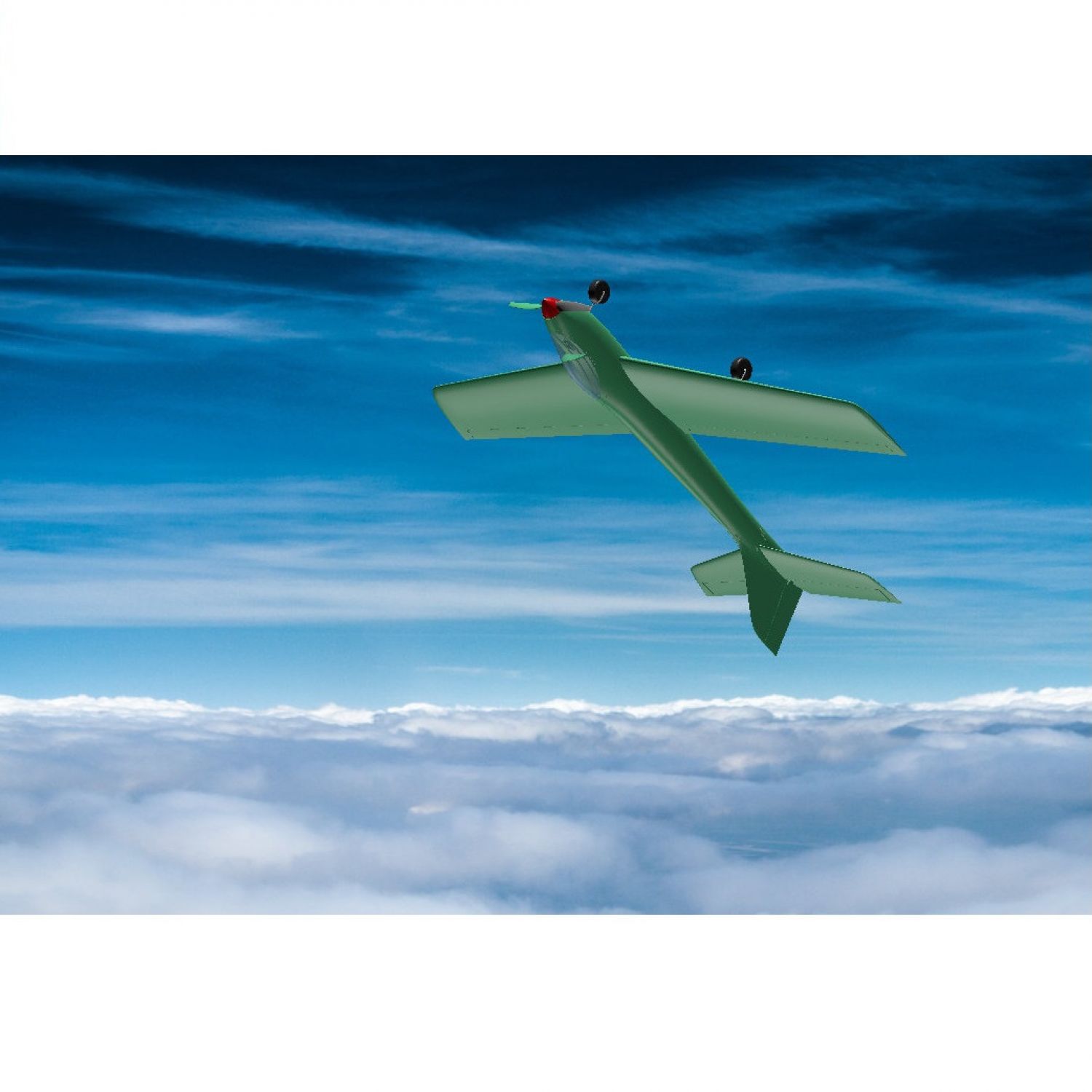

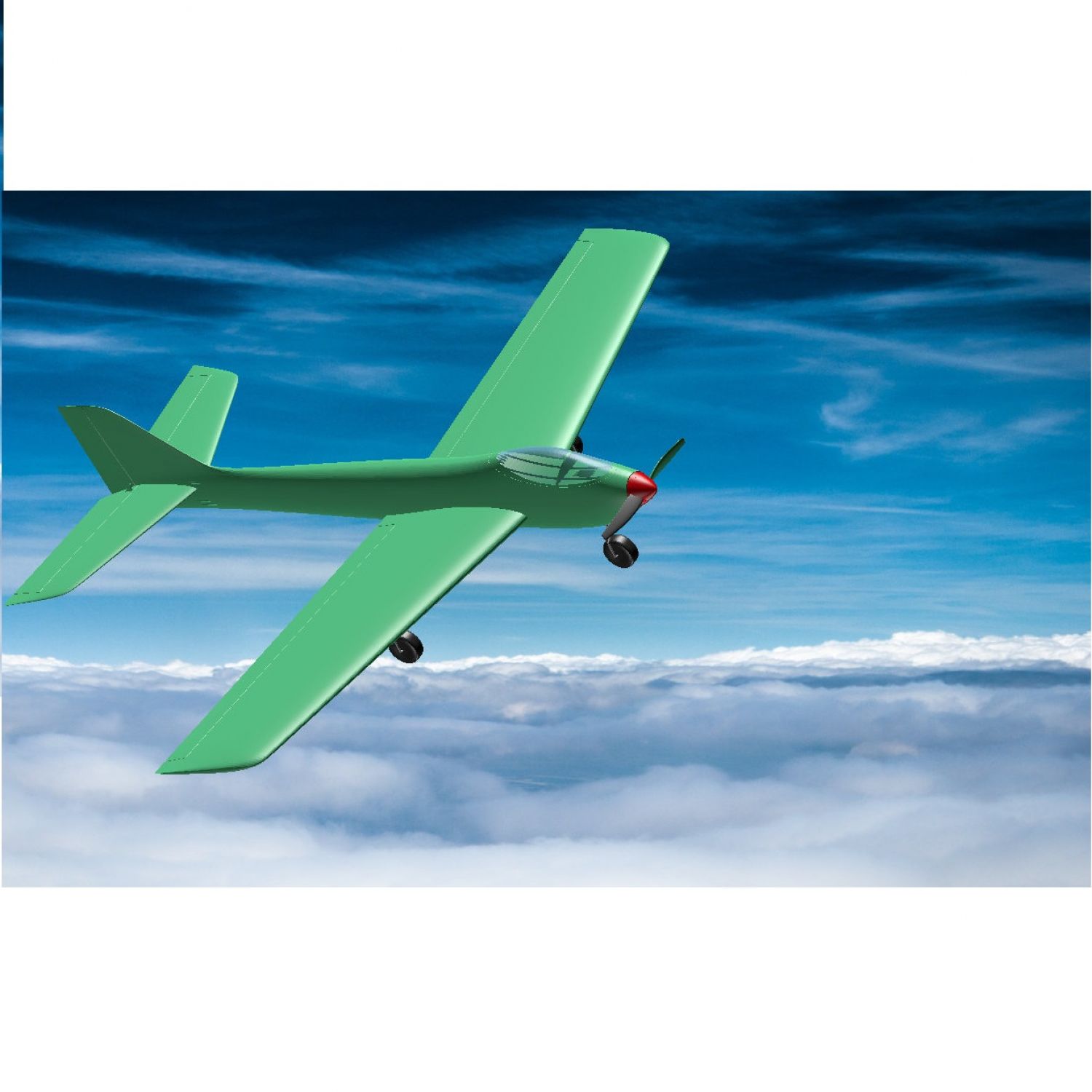

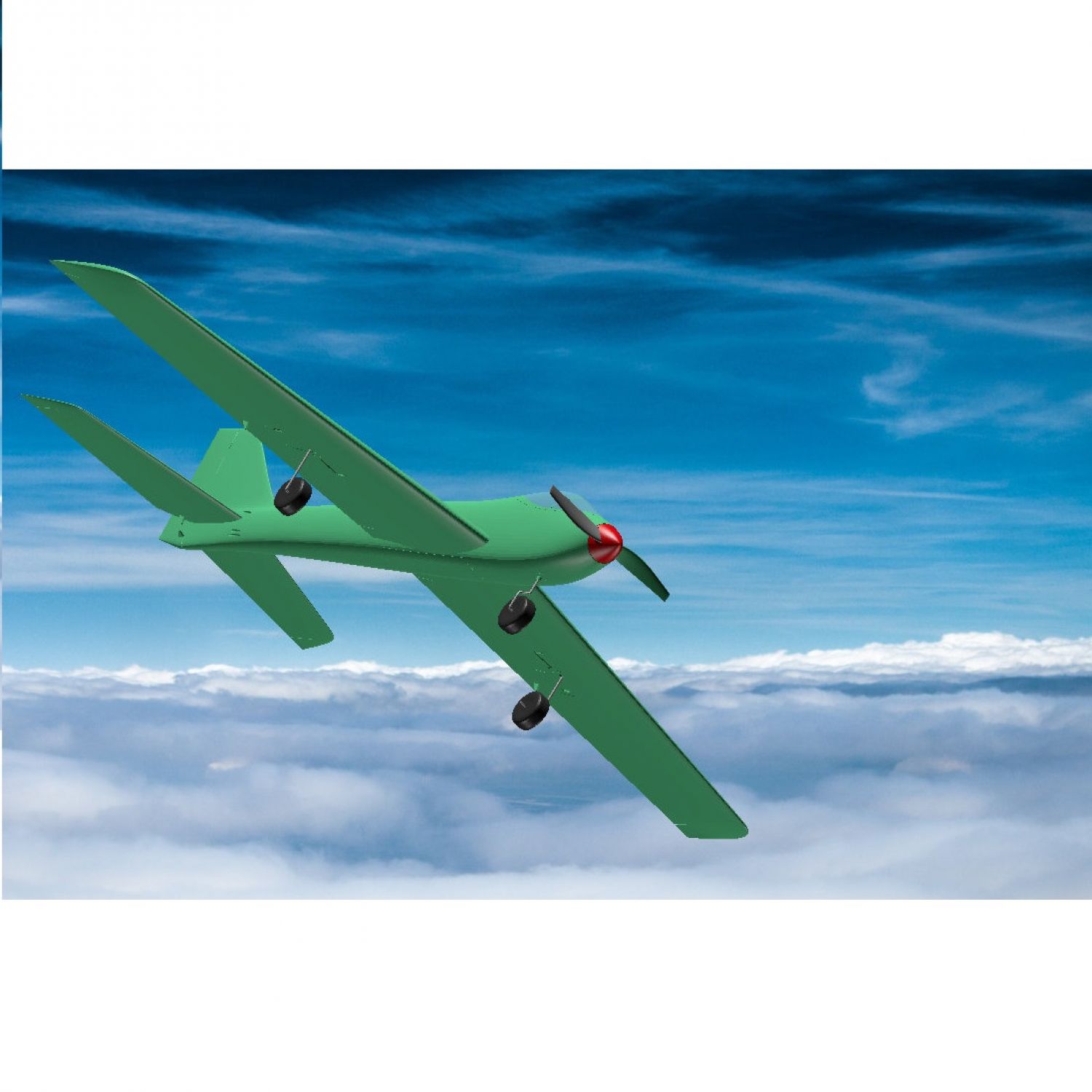

A scale replica of Masahiro Kato’s famous 70’s hit "Blue Angel”. Designed for quick and easy construction printed in PLA. Designed to suit the 3542 1250kv outrunner on a 9x6 propeller. Utilising large ailerons, elevators and rudder this model flies like it is on rails. With a symmetrical aerofoil, even the more advanced aerobatic maneuvers are made to look easy.

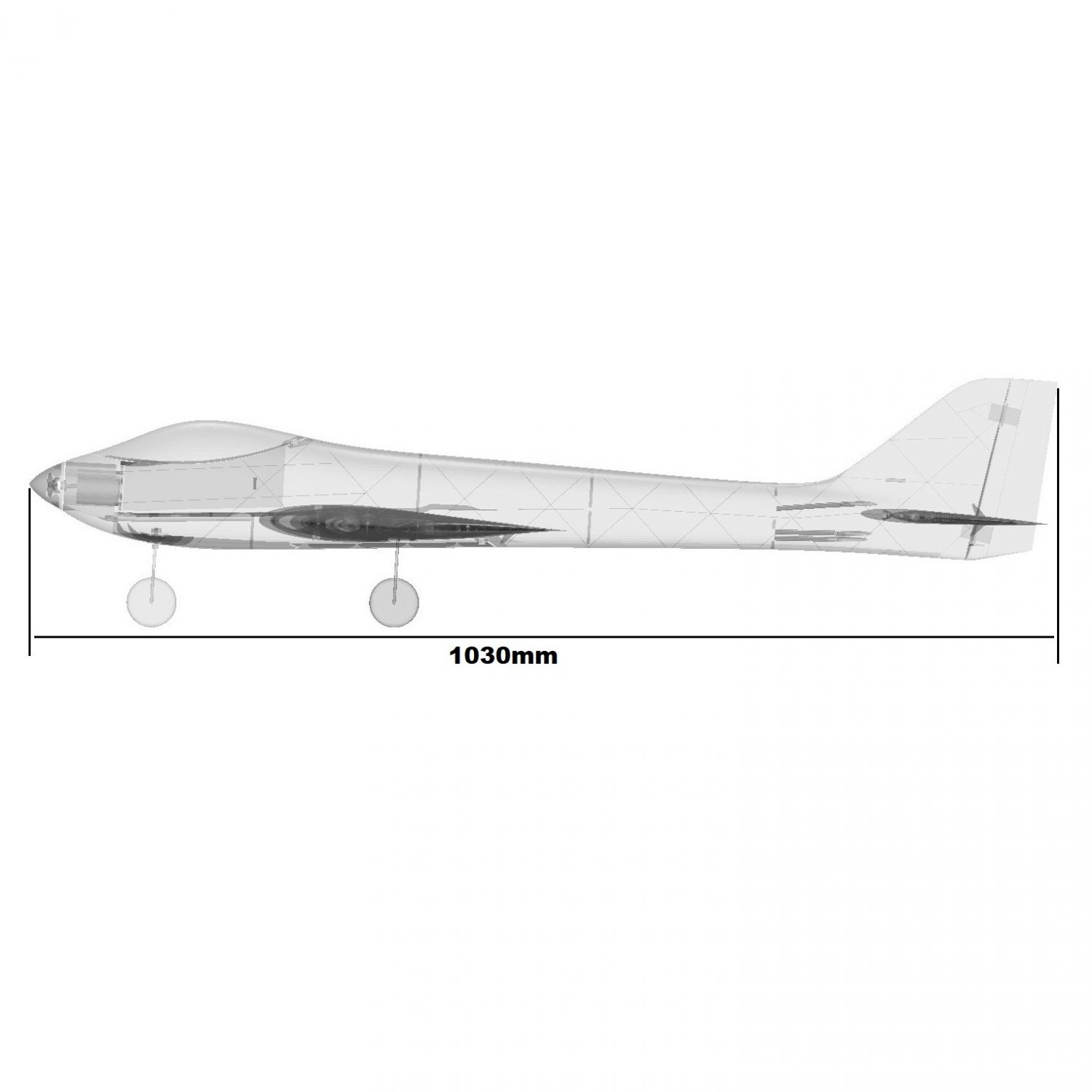

LENGTH 1030mm (40.5 in)

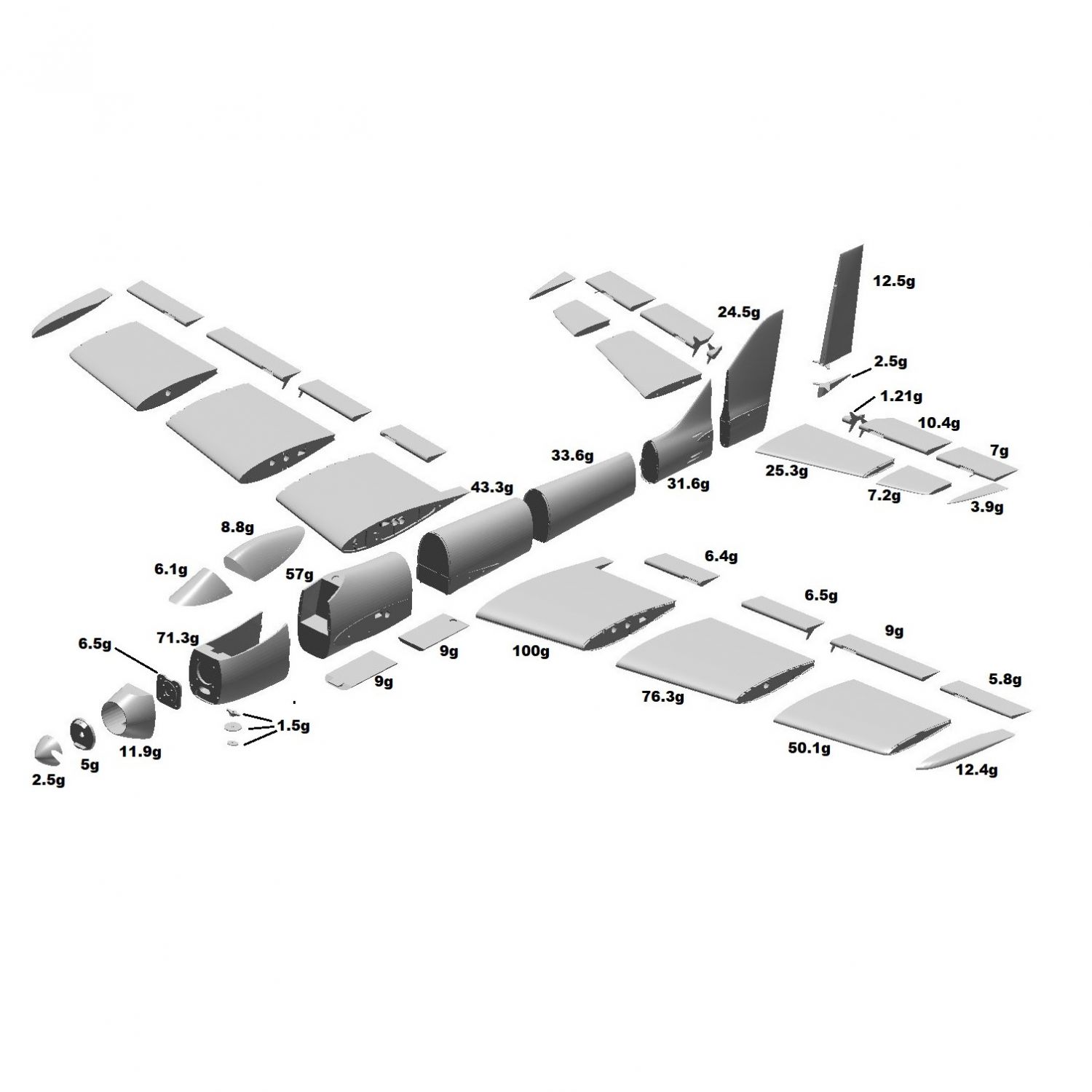

PRINT WEIGHT 925g (33oz)
FLYING WEIGHT 1500g (53.6oz)
CHANNELS 4 (aileron, elevator, rudder, throttle)
INCLUDED:
- STL files (scale to 1000% if not using s3d)
- Factory files for Simplify 3d
- G-code files for all parts
- Cura profiles for LW-PLA and regular PLA
- Detailed assembly manual
- Print settings document
- Part orientation images
FLIGHT VIDEO:
1- https://www.youtube.com/watch?v=xQeA-pFub-4&t
2- https://www.youtube.com/watch?v=TzAR_yisnVQ&t
ELECTRICS:
MOTOR: 3542 1450KV
ESC: 50 amp (min)
SERVOS: x4 9g
BATTERY: 2200mah 3s (or similar)
REQUIRED COMPONENTS:
X1 3542 1450KV MOTOR (or similar)
X1 50AMP ESC
X1 2200MAH 3S LIPO OR SIMILAR
X4 9G SERVO
BAMBOO SKEWERS 3mm
X2 10mm X 10mm X 2mm MAGNET (ROUND)
X12 16mm x 29mm HINGES
X4 m3 bolts 10mm
X4 m3 brass inserts
VELCRO
m2 x 6mm screws
m3 x 10mm screws
X3 m3 collars and set screws
1mm or 1.5mm piano wire
Braided fishing line (20lbs)
X3 10x8mm carbon tube
X3 50x20mm foam wheels
