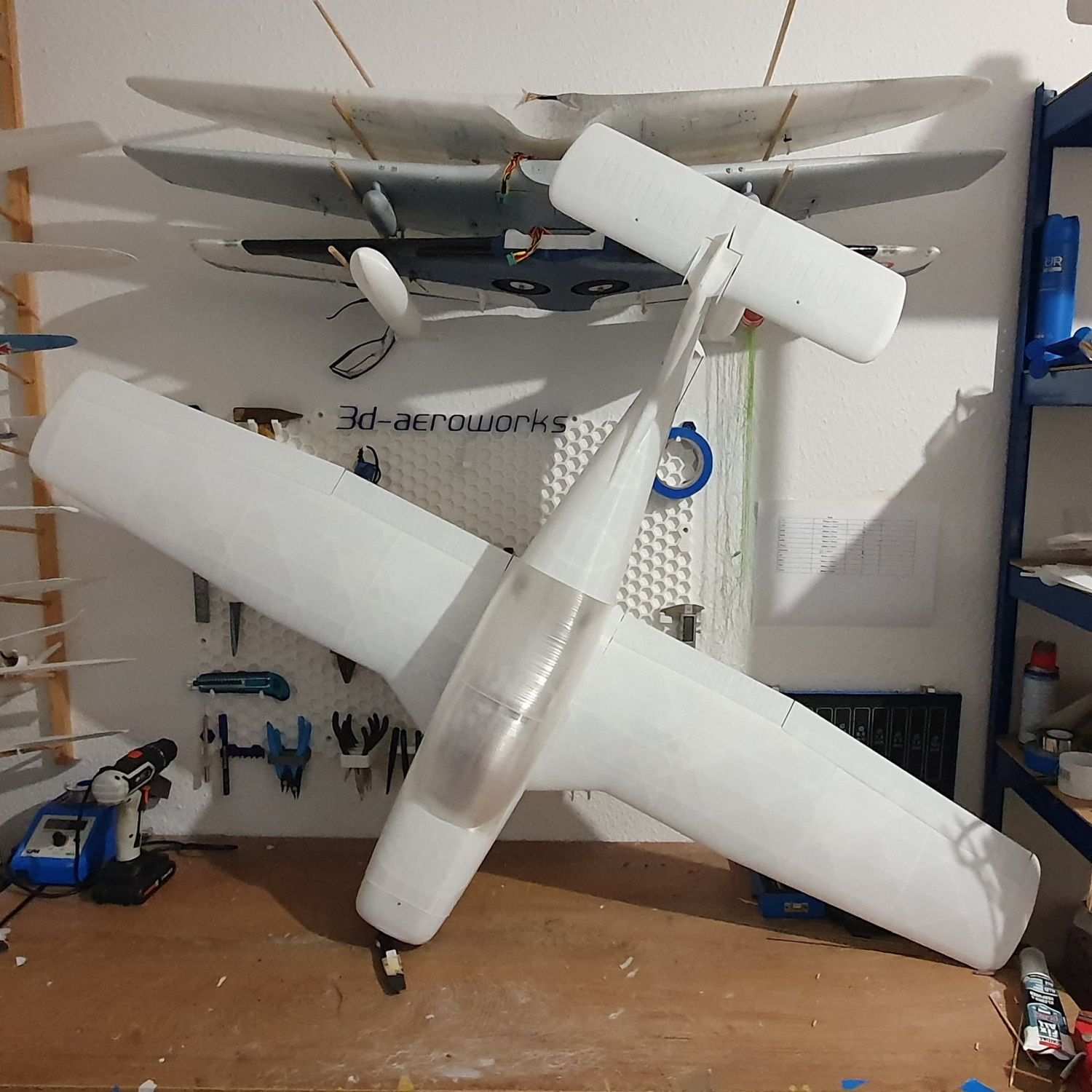

PA-28T Turbo Arrow IV 1500mm

OVERVIEW:

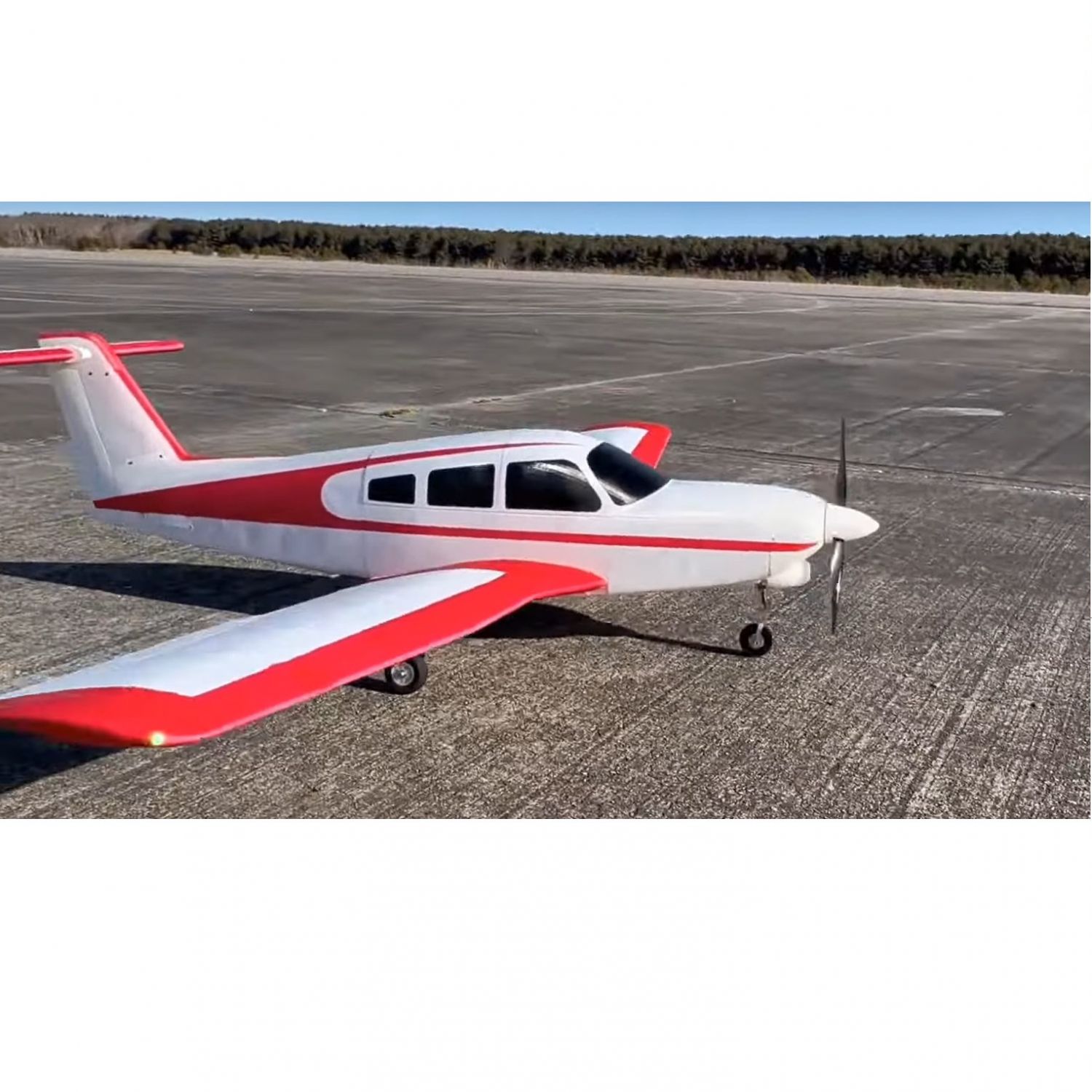

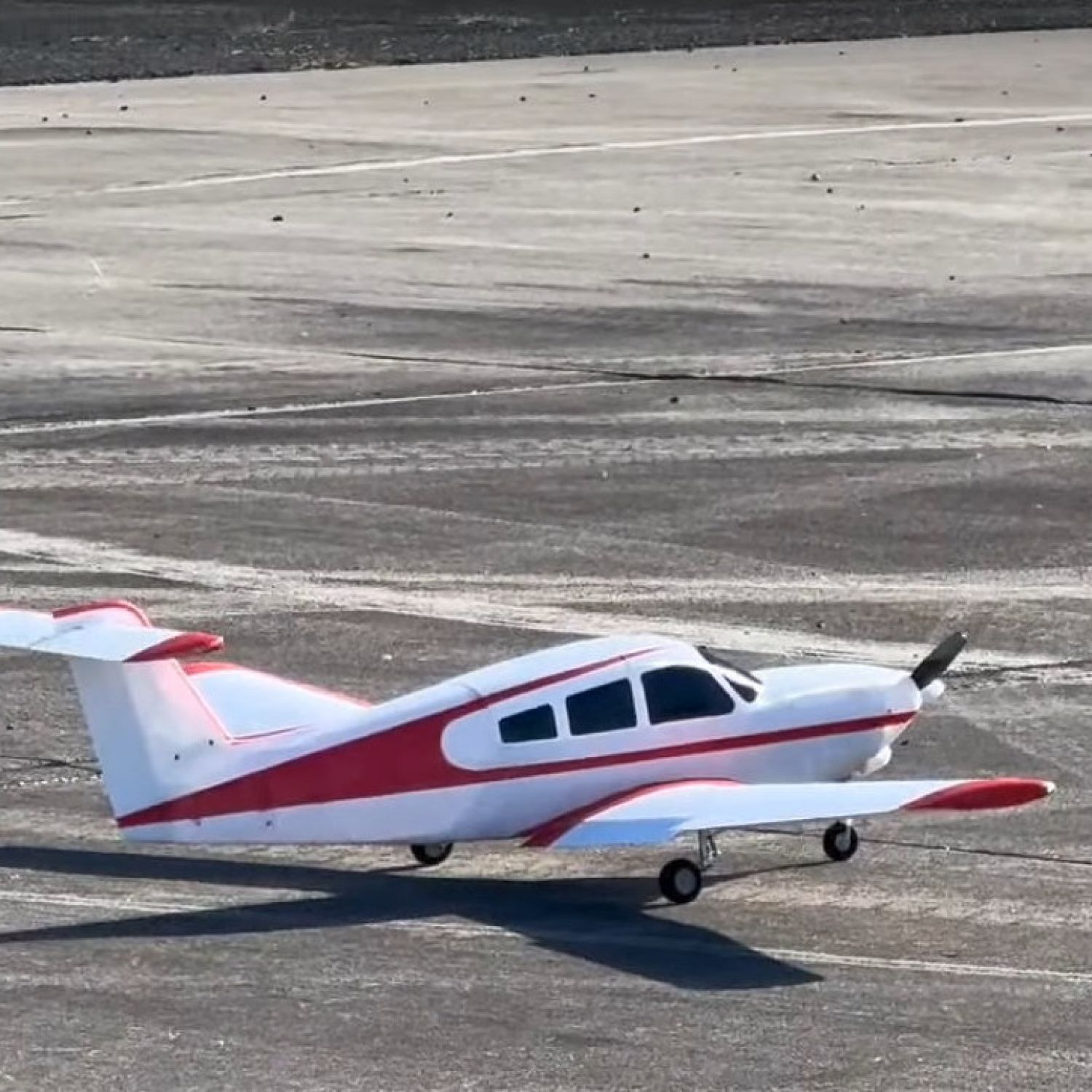

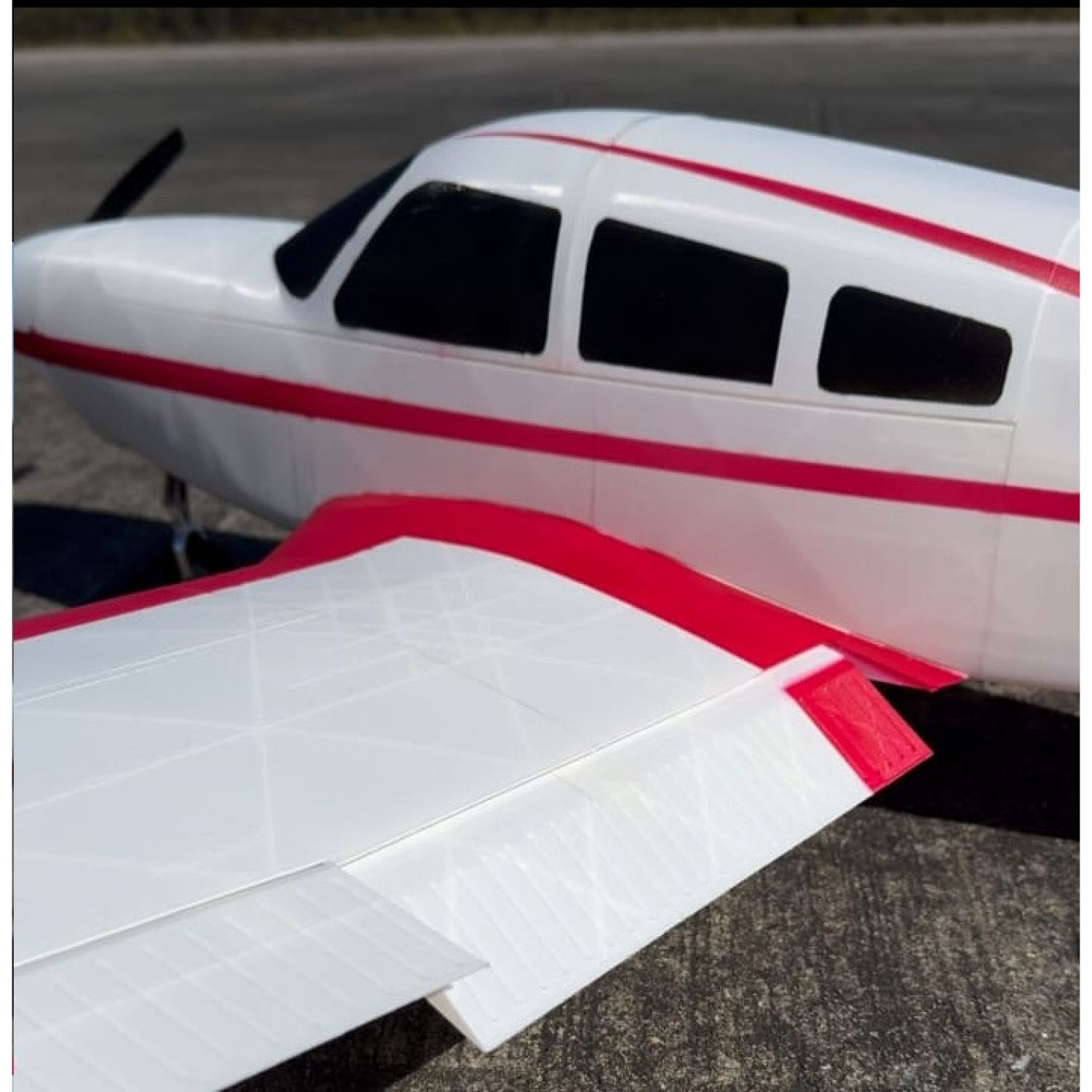

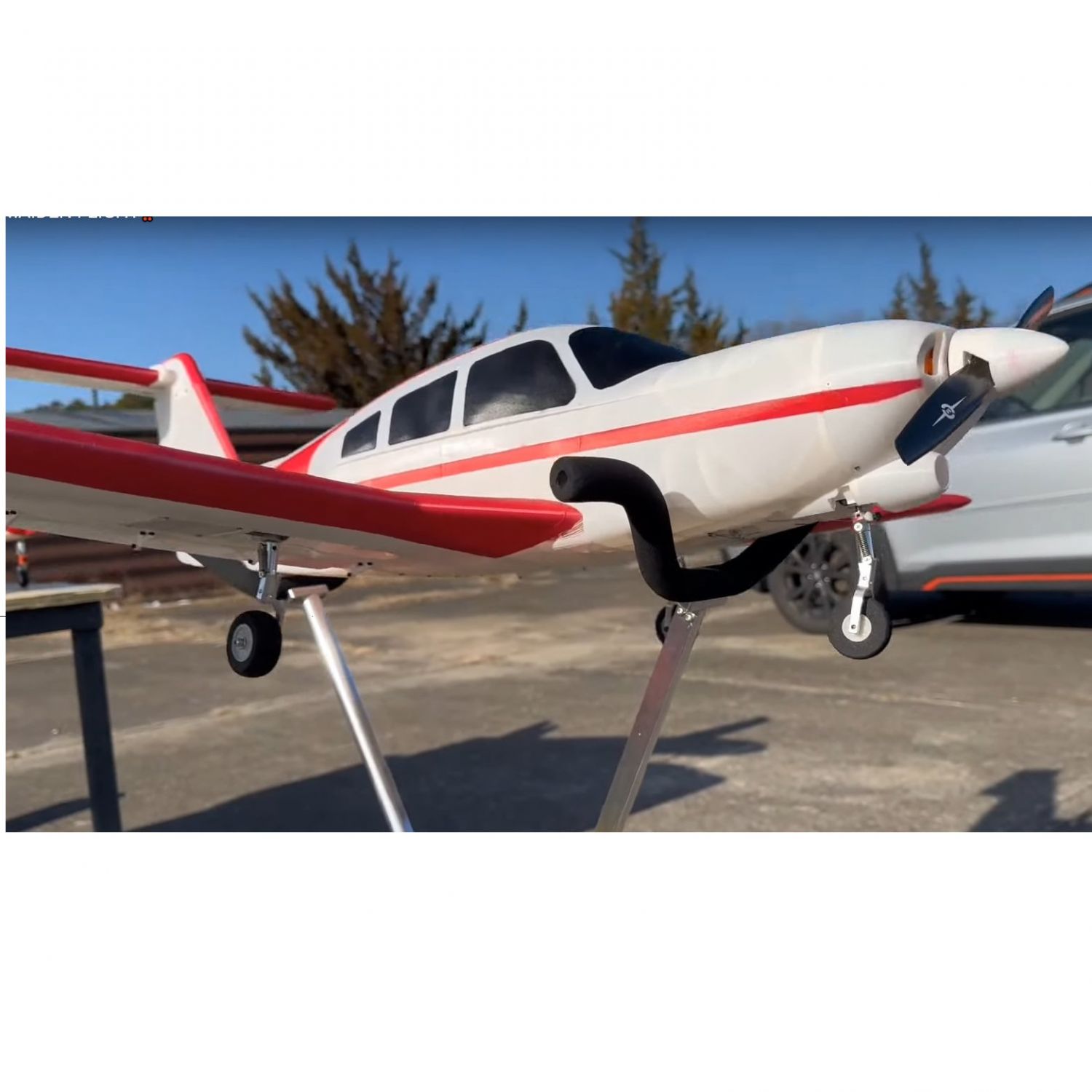

This scale replica of the Piper Arrow PA-28T IV is bound to be a head turner among the GA enthusiasts at your local flying field. Printed using all regular PLA filament, the arrow stands out with its T-tail design and sleek lines. Designed to suit commonly found hardware;
3548 900kv brushless outrunner motor
12g servos
3kg retracts,

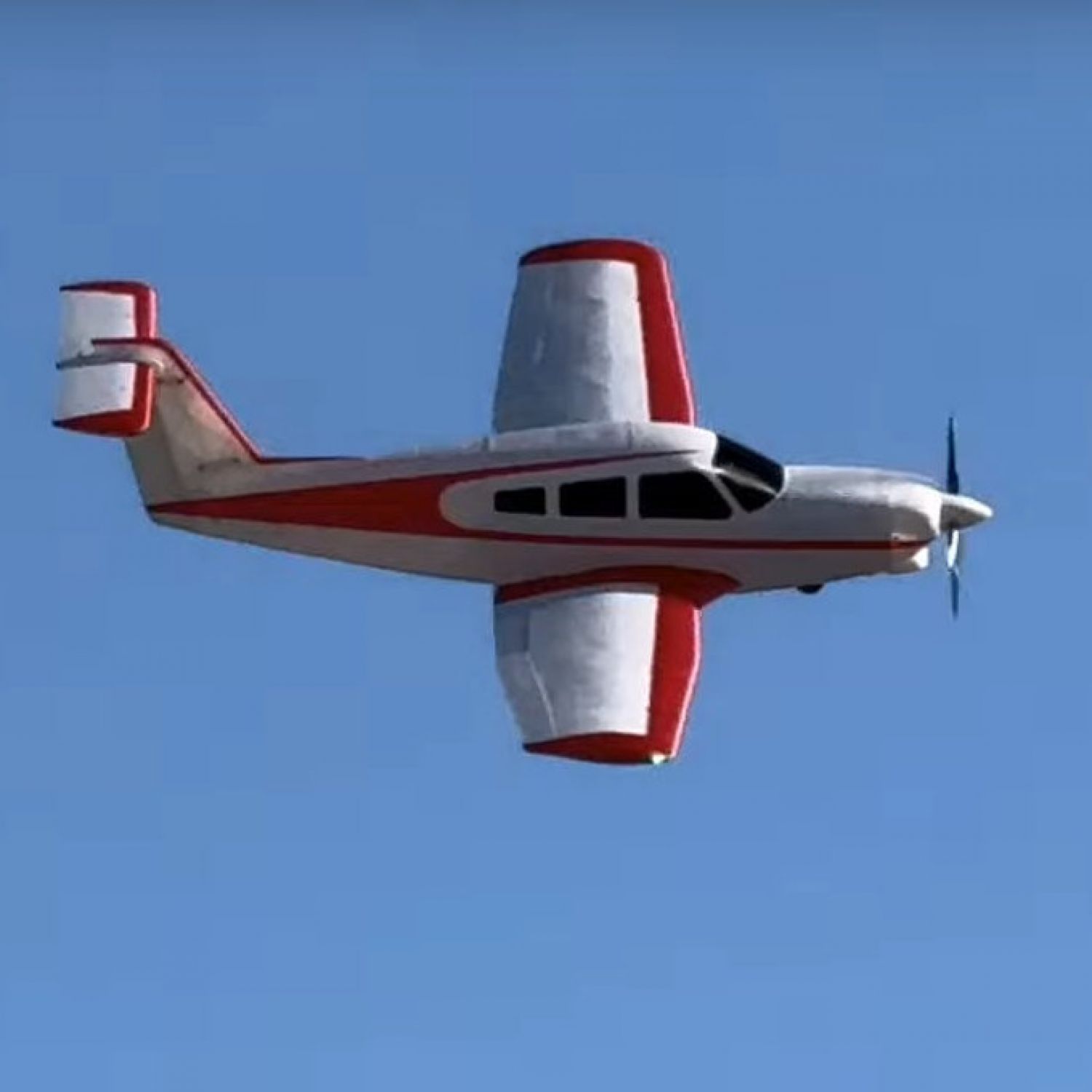

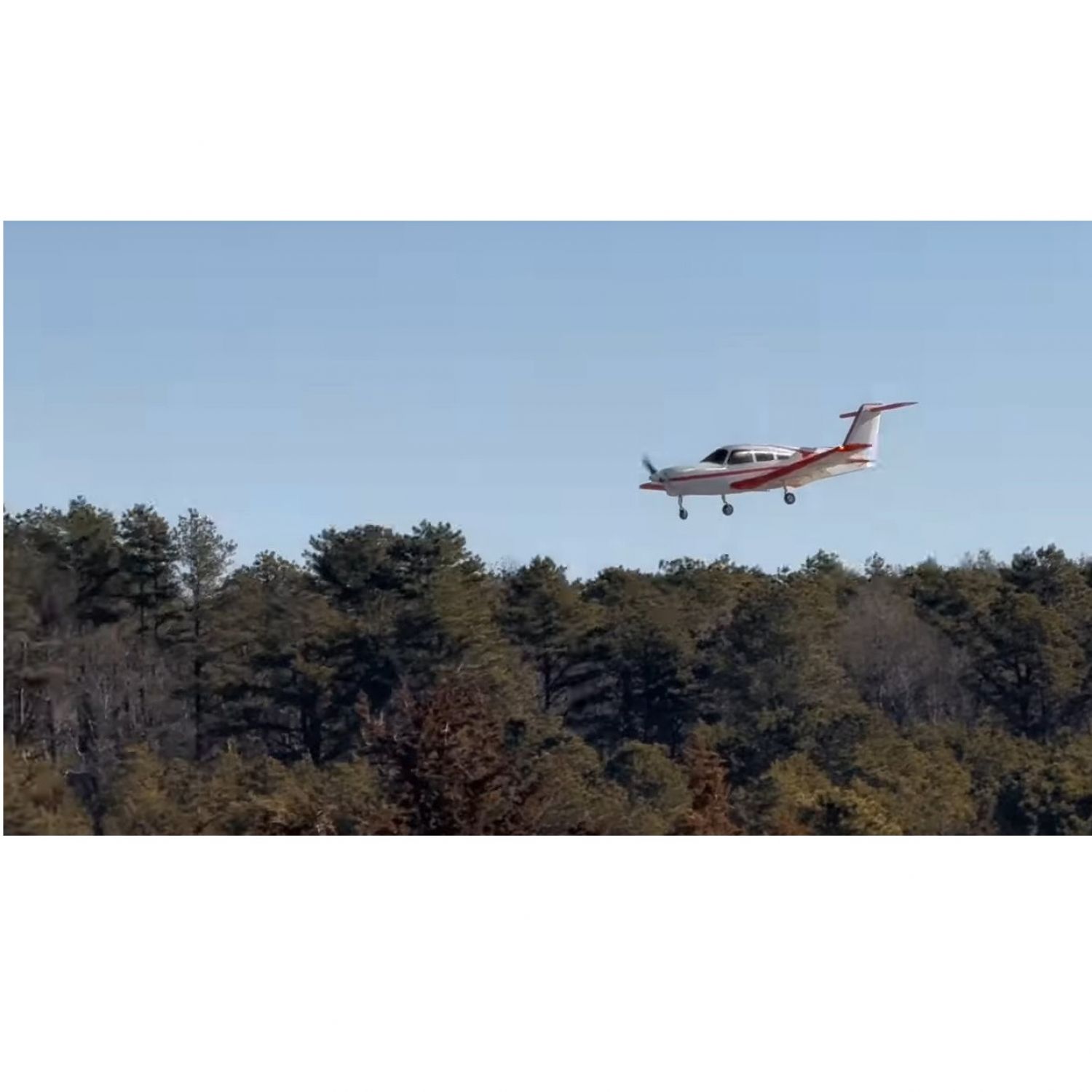

This model has loads of power and is happy to cruise around at 40% power thanks to its lightweight yet sturdy construction. Utilizing 6 channel controls; Aileron, Elevator, Rudder, Throttle, Flaps and retractable Landing gear, the Arrow is easy to fly and fully capable of light scale aerobatics. Links to components used can be found on the last page of the user guide.

MODULAR DESIGN:

This model features our modular design approach. Removable wings makes transporting the aircraft to and from the field a safe and simple task. It also makes swapping out any damaged or worn out components a far simpler task than needing to reprint the entire airframe again. Simply print out the part/component you need to replace, unscrew the damaged or worn out part, install the new one and you are ready to fly!

GENERAL SPECIFICATIONS

WINGSPAN: 1500mm
PRINT WEIGHT: 1700g
FLYING WEIGHT: 2800g

ELECTRICS
MOTOR: 3548 900kv
ESC: 60amp ESC
SERVOS: 12g metal gear
BATTERY: 4000mah 4s 30c (438g)

INCLUDED:
Factory files for Simplify 3d
G-code files
STL files for all components
Detailed assembly manual and user guide
Print settings guide

MINIMUM BUILD VOLUME: 220mm x 220mm x 250mm

REQUIRED TOOLS:

KNIFE
LIGHTER
SANDPAPER (MEDIUM GRIT 320 recommended)
PLIERS
CA GLUE (super glue)
SCREW DRIVERS
FILE OR RASP
SOLDERING IRON (led version)
DRILL

REQUIRED COMPONENTS:

X1 3548 900kv
X1 10x7 propeller
X1 60AMP ESC
X1 4000mah 4S LIPO OR SIMILAR (438g)
X3 3kg Servoless retracts (metal trunnion) * x1 steering / x2 normal
X3 Sprung gear legs 90mm (see last page for link)
X2 Spring (25mm x 6mm x 1.2mm) - replacement for stock main gear spring
X4 Spring (0.4x3x10mm) - nose gear steering tensioner
X5 12g Metal gear servo
X2 9g standard servo
X6 16x29mm nylon hinges
X3 10x8x500mm round carbon tubes
X1 12x10x500mm round carbon tube
X1 3x3x500mm square carbon tube
X4 20x20x2mm MAGNET (ROUND)
X4 Y-lead servo wire leads
Braided nylon fishing line (20lbs)
3mm heat shrink tube (100mm)
1mm steel rod
1.2mm steel rod
2mm pushrod wire (threaded on one end)
VELCRO
M2 screws (20mm, 14mm, 12mm, 10mm, 8mm, 6mm)
3mm BAMBOO FOOD SKEWERS
