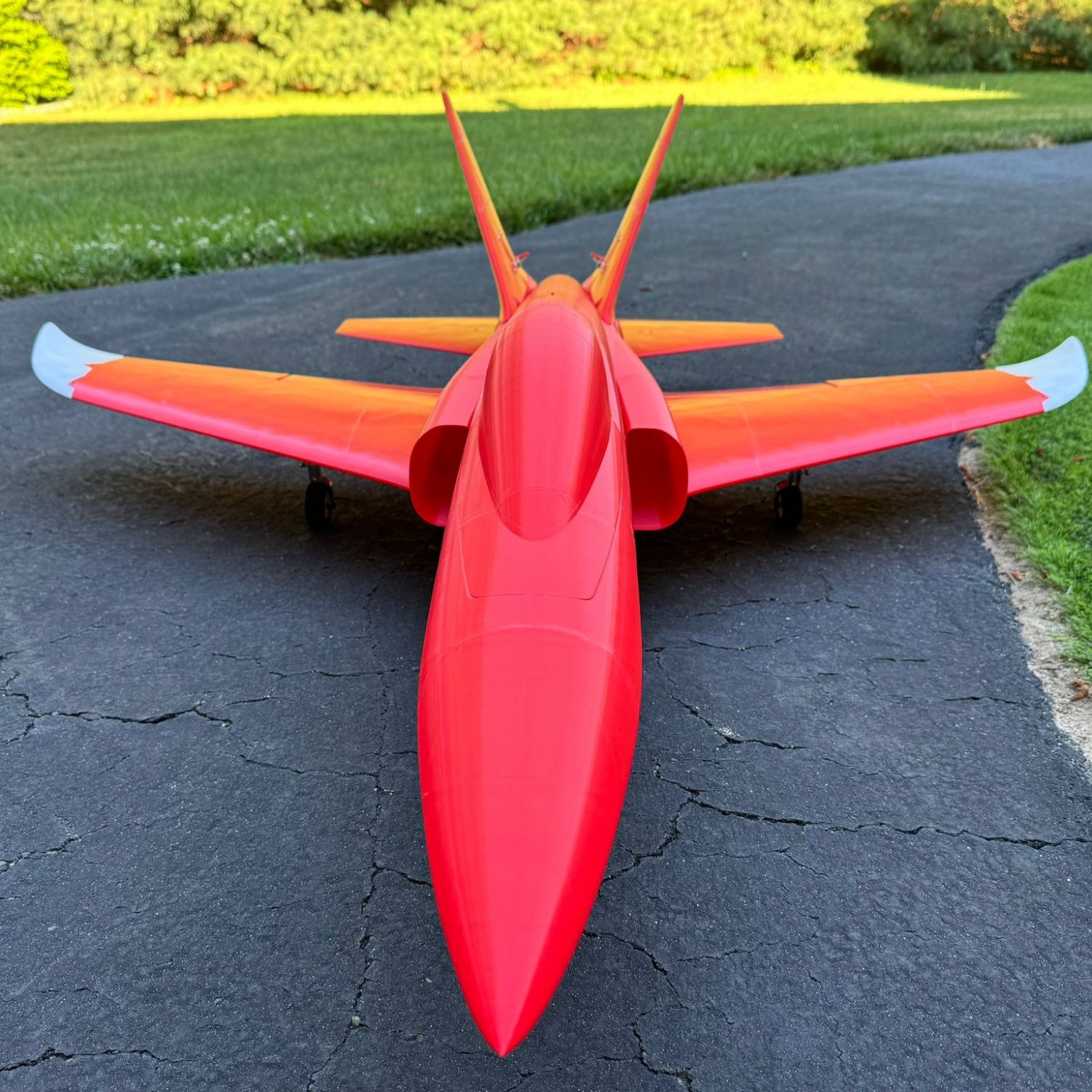

Super Scorpion 1100mm (70mm edf)

OVERVIEW:

The Super Scorpion is a unique and sleek sport jet normally found among the ranks of the composite/gas turbine crowd. Thanks to 3d-printing, it is now possible to build your very own 1100mm version of this iconic sport model. Below is a breakdown of the components and design of this model:

FLIGHT VIDEOS:

https://www.youtube.com/watch?v=RsR9-KQiqIU

Maiden >> https://www.youtube.com/watch?v=21gZxVN0Dlc&t

https://www.youtube.com/watch?v=IxCkOkMPEBQ

TEST FILES:
https://cults3d.com/en/3d-model/various/super-scorpion-1100mm-70mm-edf-aeroworks3d

DESIGN:
Designed for quick, easy construction and printed all in PLA, the modular design aspect of this model lends itself beautifully for both easy disassembly for transport as well as quick repair should it sustain damage.Utilizing 6 channel controls; Aileron, Elevator, Rudder, Throttle, Flaps and Retractable landing gear, this model holds a fantastic presence in the air, while its flight characteristics have been described as "glued to the rails”.

FUSELAGE:
Built around the specifications and performance of the X-fly 70mm EDF, this model has more than enough power to perform all manner of aerobatic maneuvers. The Edf is also removable thanks to the hatch on the underside of the Fuselage. The Canopy is secured with a printed spring latch to ensure a secure lock no matter what g-forces are thrown at it.

WINGS:
Designed to be quickly removable for transport, the wings boast a large area making the slow flying characteristics stable and easy to handle. Featuring slots for carbon tubes, the wing structure is sure to manage all sorts of aerobatic maneuvers. Washout in the wingtips ensures that the stall is very docile and manageable. The inclusion of slotted flaps mean that landings are very floaty and be used to slow the model down nicely for short runways.

TAIL:
A full flying tail means elevator authority will always be sharp and precise. These can also be programmed depending on the performance expectations. Firstly in the conventional style with the full flying tail handling just pitch, or it can be tasked as stabilators, controlling both roll and pitch. The latter will "wow” the crowds with an impressive roll rate, making even the most agile of 3D aerobatic models envious.

UNDERCARRIAGE:
The retractable gear will add another layer of scale detail whilst significantly reducing drag. Designed to accommodate commercially available sprung gear legs, takeoffs and landings from both bumpy grass or hard surface runways will be smooth and safe.

GENERAL SPECIFICATIONS:

WINGSPAN: 1100mm
PRINT WEIGHT: 1580g
FLYING WEIGHT: 2500g

ELECTRICS:

MOTOR: X-FLY 70mm EDF 2000kv
ESC: 100amp
SERVOS: 21g MG and 9g micro
BATTERY: 3300mah 6s - 4800mah 6s (500g - 750g)

INCLUDED:

Factory files for Simplify 3d
G-code files
STL files for all components
Detailed assembly manual and user guide
Print settings guide

MINIMUM BUILD VOLUME: 220mm x 220mm x 250mm

REQUIRED COMPONENTS:

X1 X-FLY 70mm EDF 2000kv
X1 100 AMP ESC
X1 3300mah 6s
x4 21g MG servo
x3 9g standard servo
x3 3kg retracts (x2 normal / x1 nose steering)
x2 sprung main gear legs (4mm pin / 90mm total length)
x1 sprung nose gear leg (4mm pin / 90mm total length)
1mm or 1.2mm steel wire (push rods)
X2 m2 steel rod (push rods) (300mm)
braided fishing line (20lbs)
X2 3mm square carbon rod (elevator assembly) must have round hole
X1 5x5mm square carbon rod (elevator assembly)
X1 12x10x500mm carbon tube (elevator assembly)
x3 10x8x500mm round carbon tube (main spars)
x1 0.4 x 3 x 10mm extension spring (nose gear steering spring)
x2 1.2x6x25mm spring (replacement of the main gear spring)
x1 0.3 x 2 x 0.9 x 120 torsion spring (0.3mm wire thickness x 2mm spring loop diameter x 0.9mm spring loop thickness 3 laps/loops x 180deg) (nose gear door opener)
0.4 x 4mm extension spring
x12 16x29mm nylon pinned hinges
m2 screws (5mm, 8mm, 10mm, 12mm, 14mm, 20mm)
Velcro battery strap
3mm BAMBOO FOOD SKEWERS
