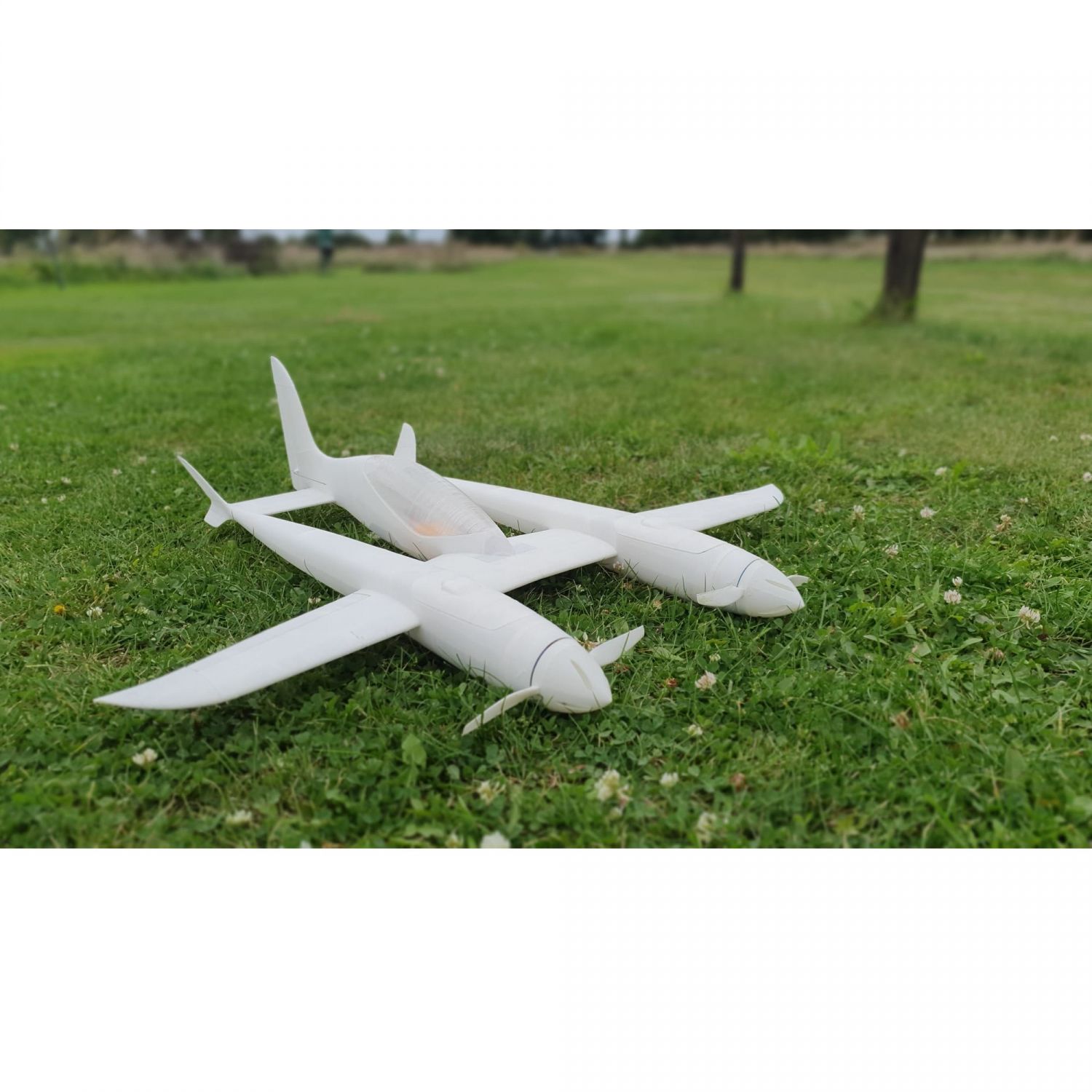

Pond racer (PR1) 700mm LW-PLA

£12.45

Inclusive All Taxes

Description

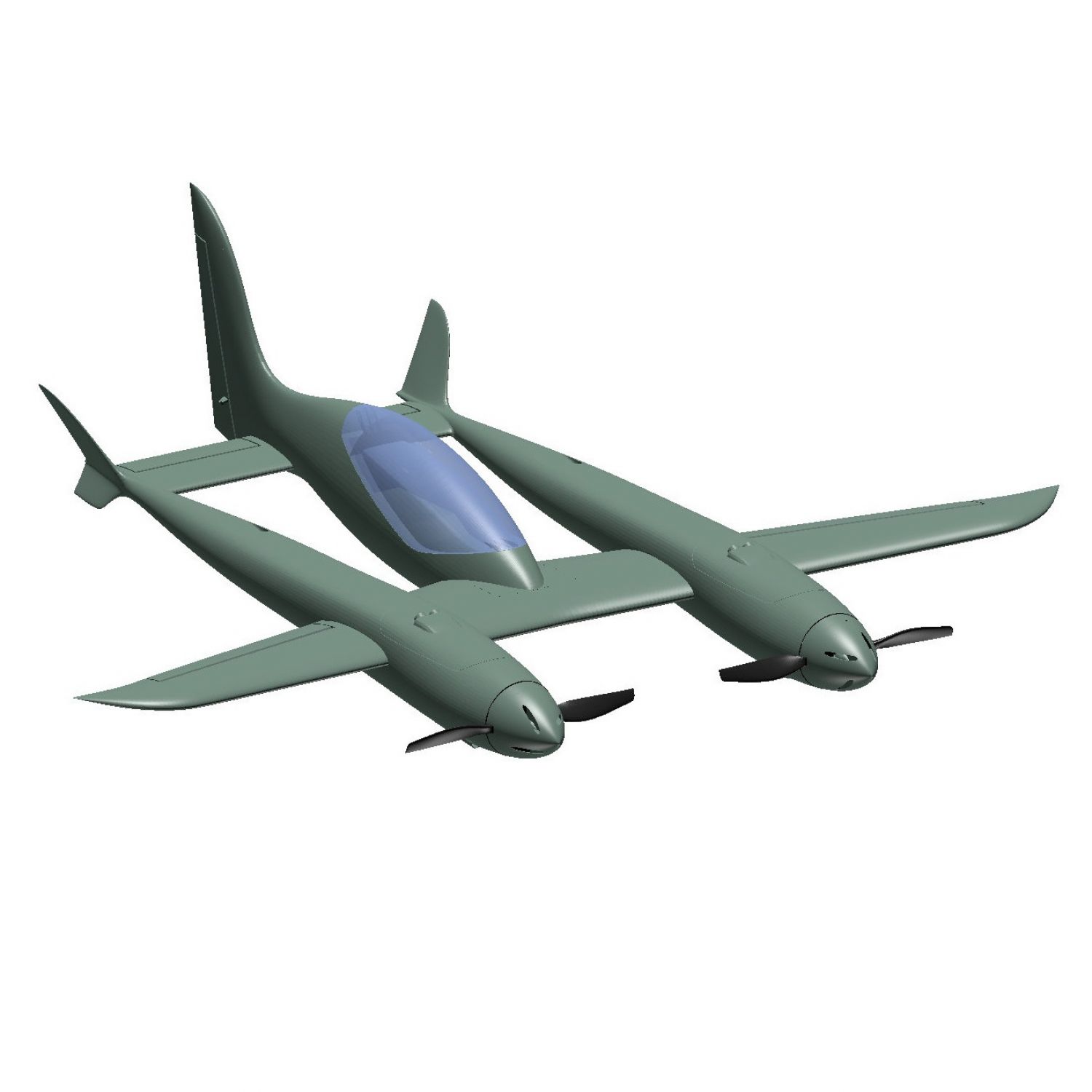

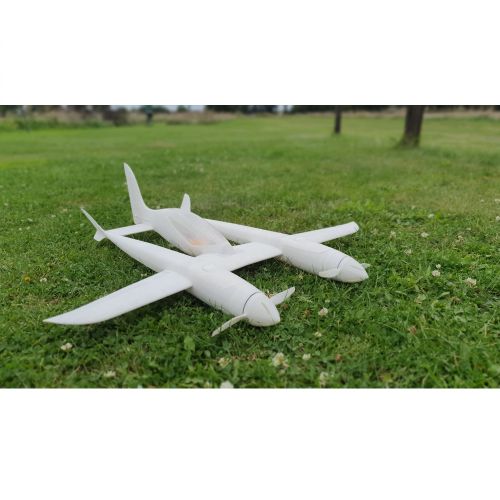

A scale replica of Burt Ruhtan’s Pond Racer is designed for quick and easy construction and printed using light weight PLA (LW-PLA). For best results the canopy should be printed with clear PLA. Semi scale propellers are included in the plans designed to suit the 2205 2300kv outrunner (6.75x5 blade) in 2 blade configuration. Utilizing full 4 channel controls; aileron, elevator, rudder and throttle, this model performs extremely well given its small size and lightweight. Links to components used can be found on the last page of the user guide.

Scale details include:
  • Clear canopy with window outlines
  • Scale intakes and exhausts
  • Option for removable "fixed" style landing gear
Included with this file:
  • Factory files for Simplify 3d
  • STL files for all components
  • G-code files for all parts
  • Cura profiles for LW-PLA and regular PLA

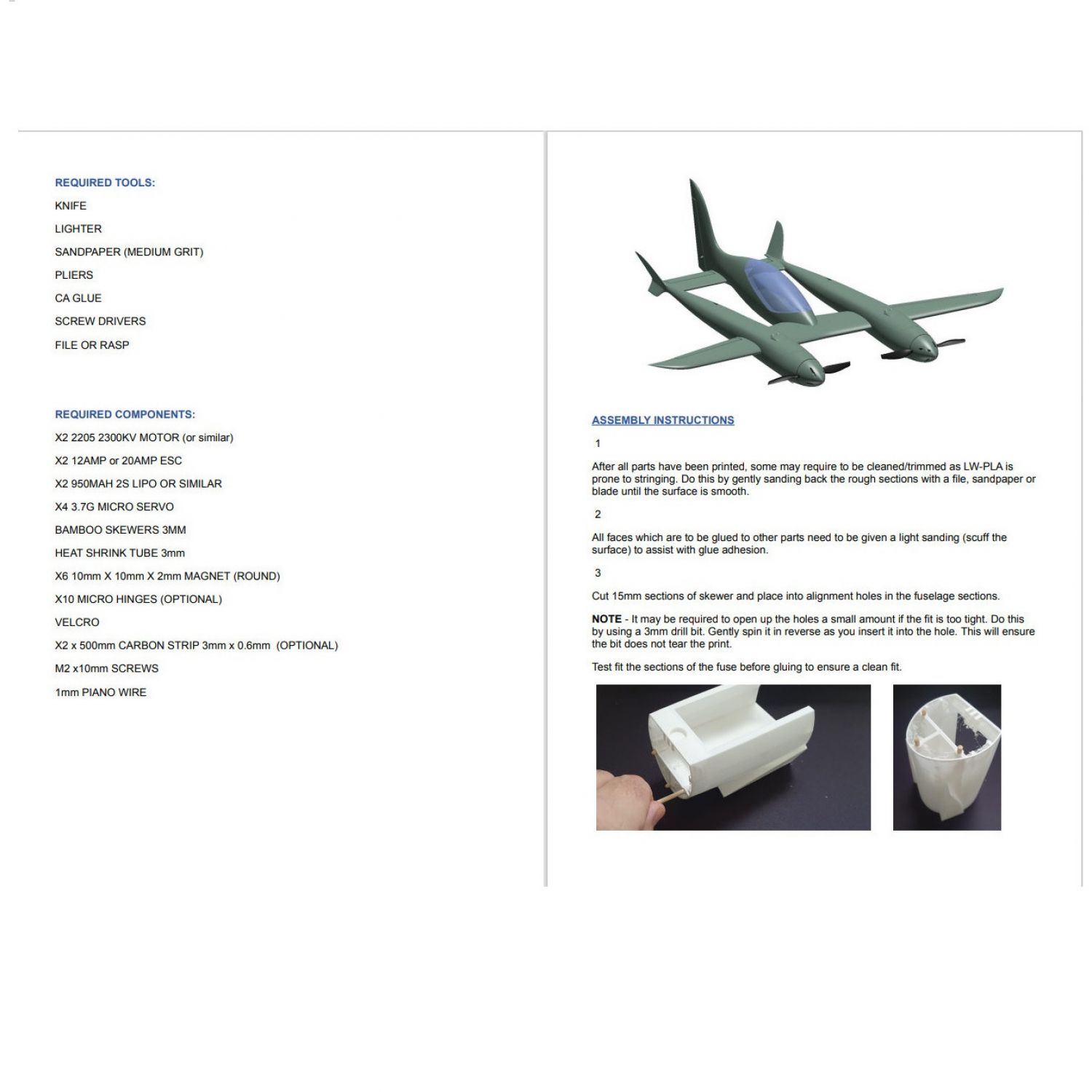

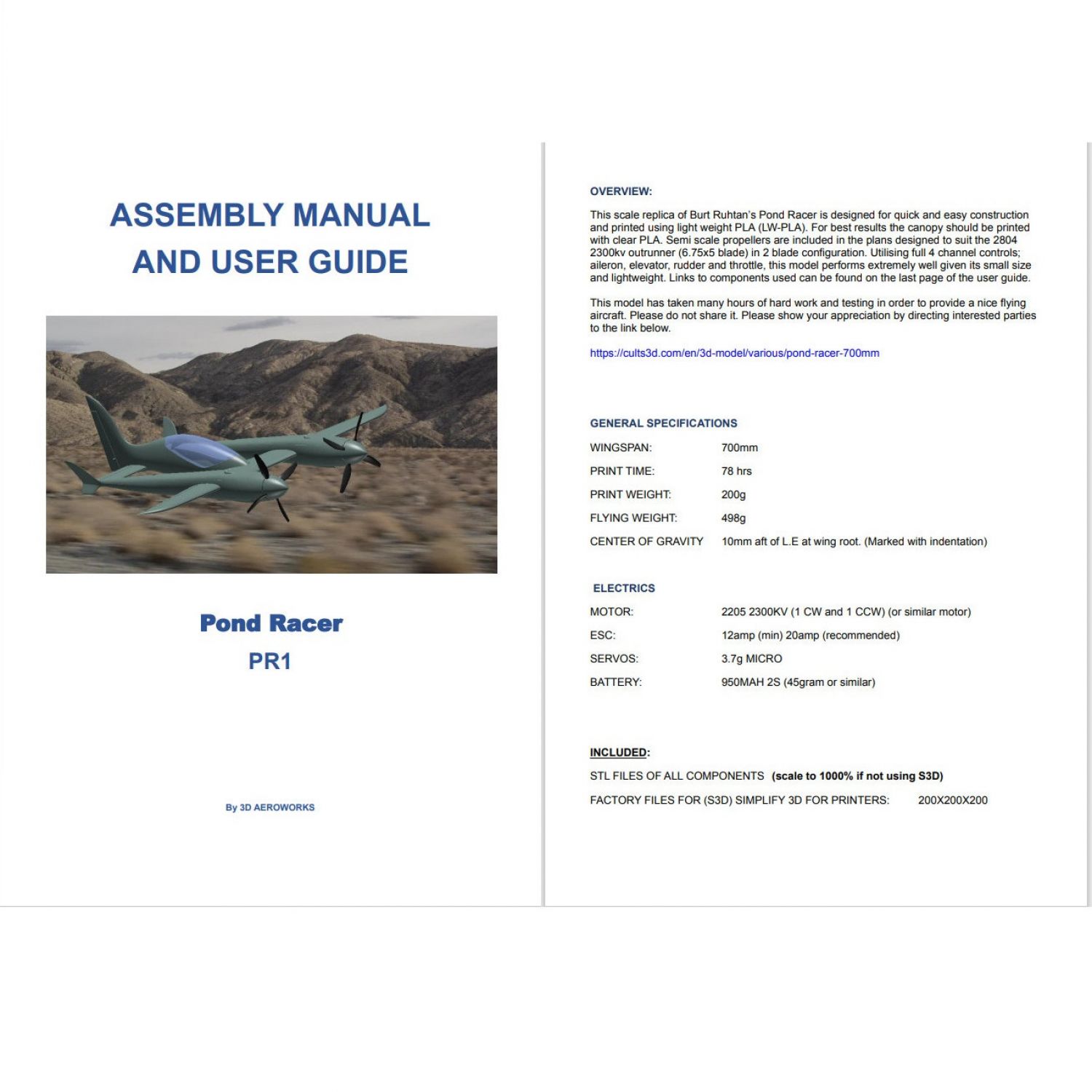

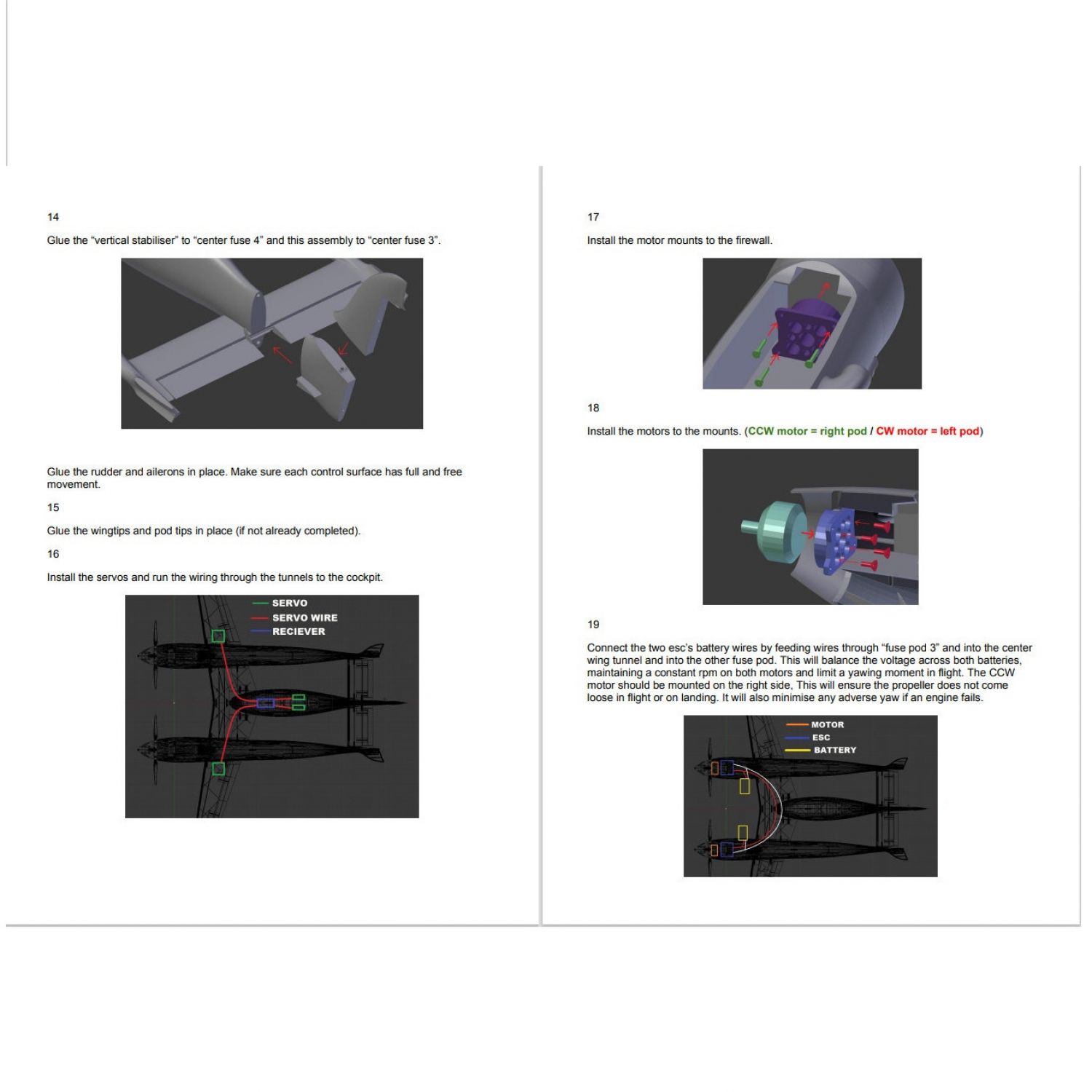

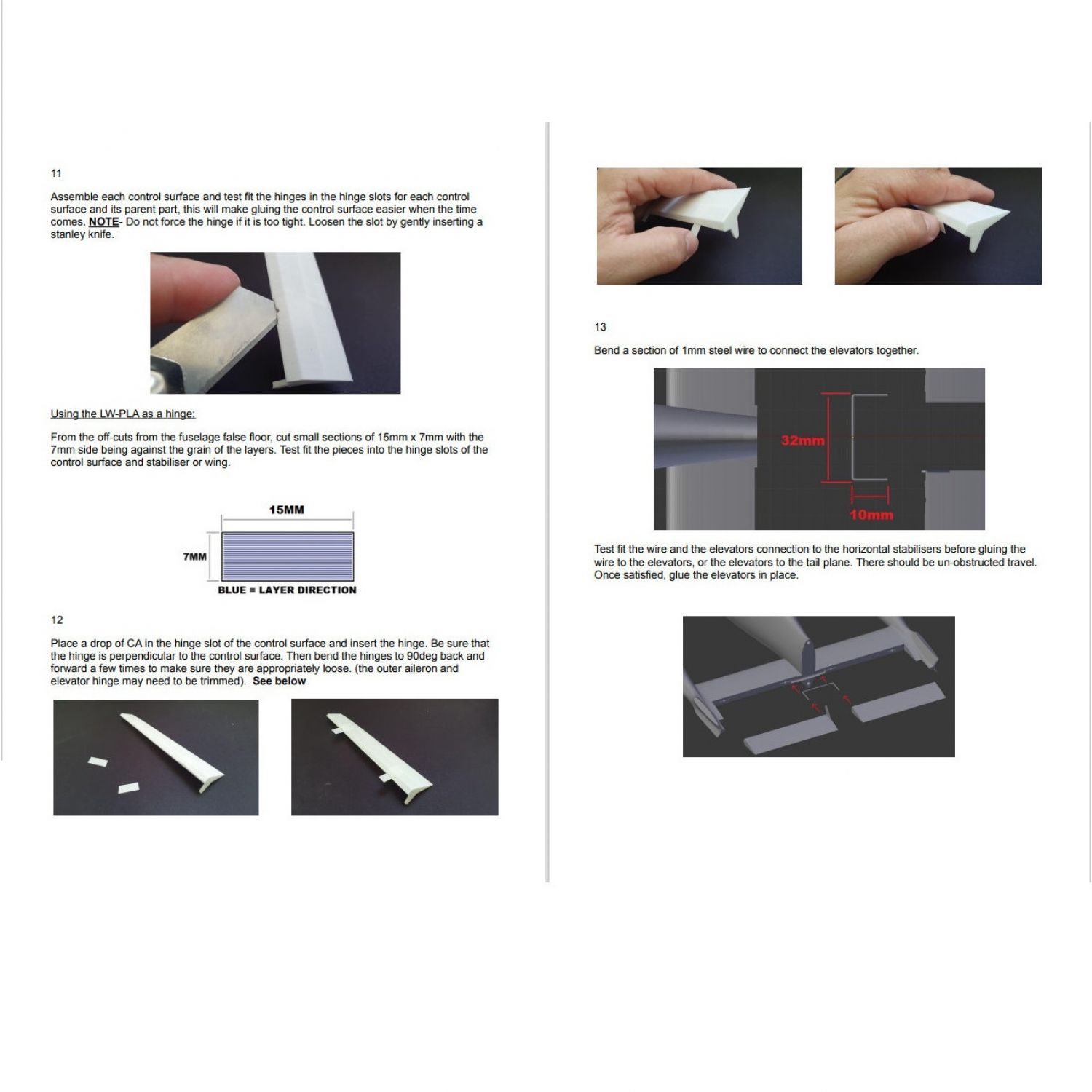

  • Detailed assembly manual and user guide
  • Print settings guide for all parts
  • part orientation images


 GENERAL SPECIFICATIONS

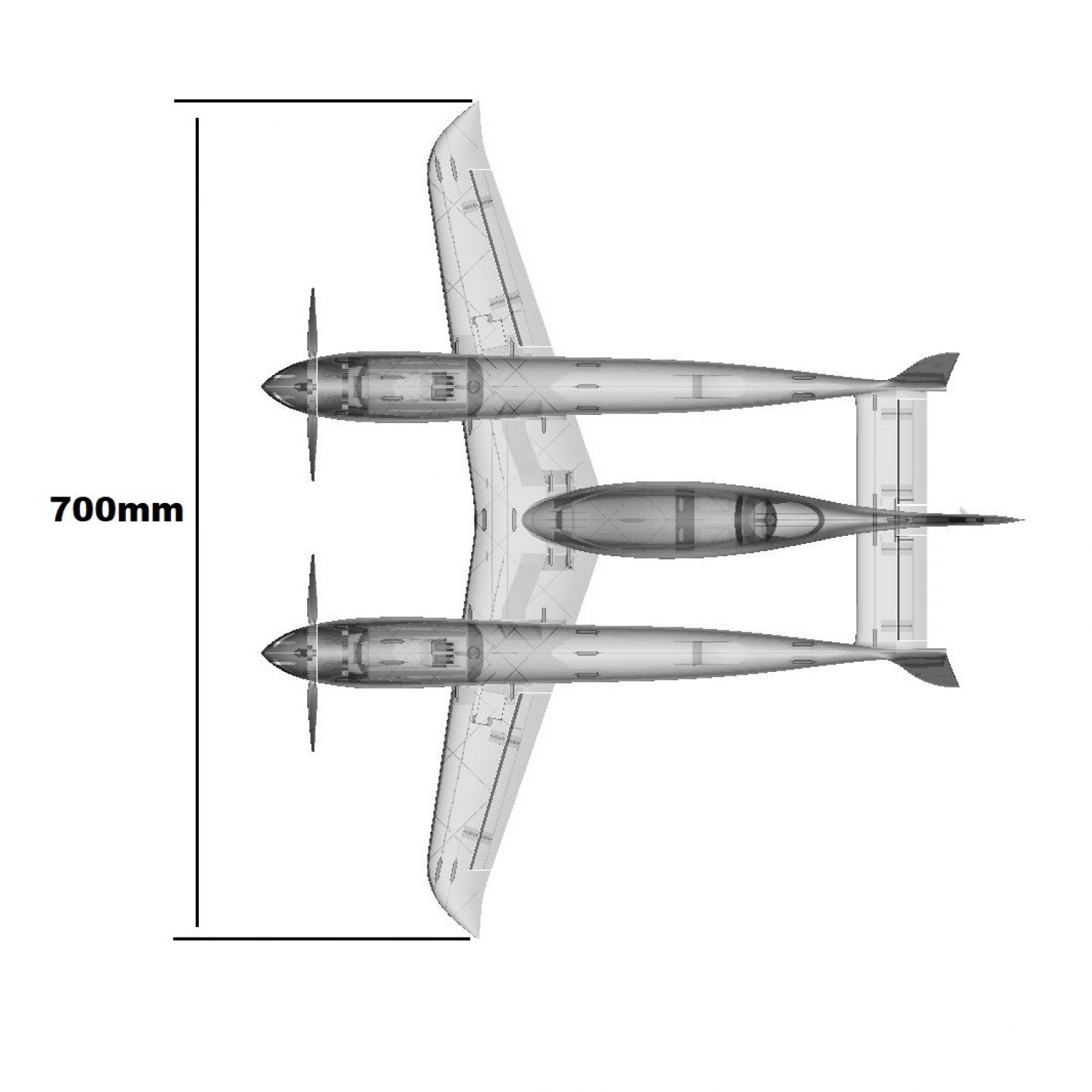

 WINGSPAN 700mm (27.5 in)

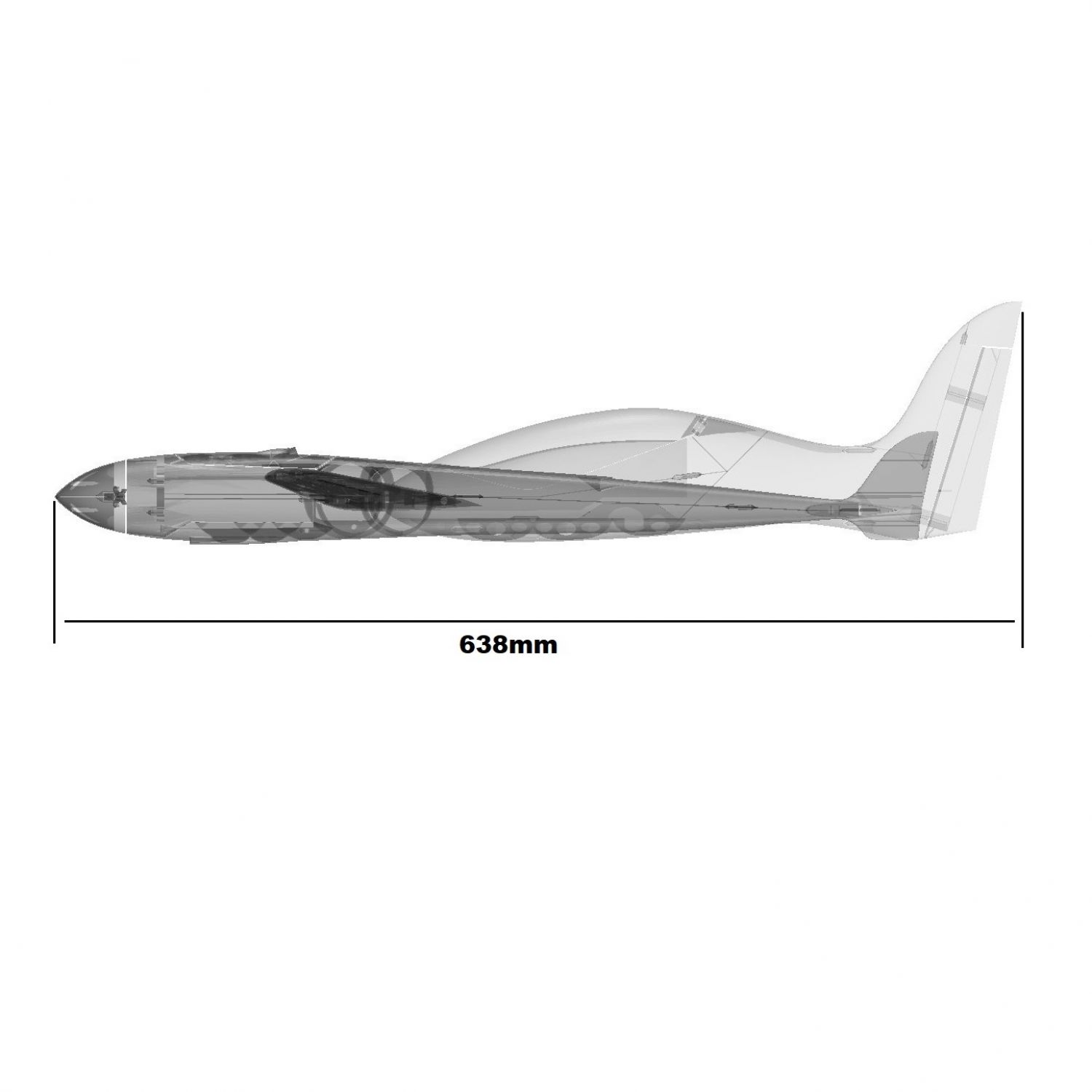

LENGTH 638mm (25.1 in)

PRINT WEIGHT 200g (7.1oz)

FLYING WEIGHT 498g (17.7oz)

WING LOADING 83g/dm2 (27.4oz/sq.ft)

CHANNELS 4 (aileron, elevator, rudder ,throttle)

ELECTRICS
MOTOR: x2 2205 2300KV (1 CW and 1 CCW)
ESC: x2 12amp (min) 20amp (recommended)
SERVOS: x4 3.7g MICRO
BATTERY: x2 950MAH 2S (45gram or similar)

REQUIRED COMPONENTS:
X2 2205 2300KV MOTOR (or similar)
X2 12AMP or 20AMP ESC
X2 950MAH 2S LIPO OR SIMILAR
X4 3.7G MICRO SERVO
BAMBOO SKEWERS 3MM
HEAT SHRINK TUBE 3mm
X6 10mm X 10mm X 2mm MAGNET (ROUND)
X10 MICRO HINGES (OPTIONAL)
VELCRO
X2 x 500mm CARBON STRIP 3mm x 0.6mm (OPTIONAL)
M2 x10mm SCREWS
1mm PIANO WIRE

PRINT VOLUME:
200x200x200

For any questions and assistance please email us at:

aeroworks3d@outlook.com

NOTE: All STL files need to enlarged to 1000% if using a program other than simplify3d.

Free download of instruction manual and parts list HERE
