Tracer 2000

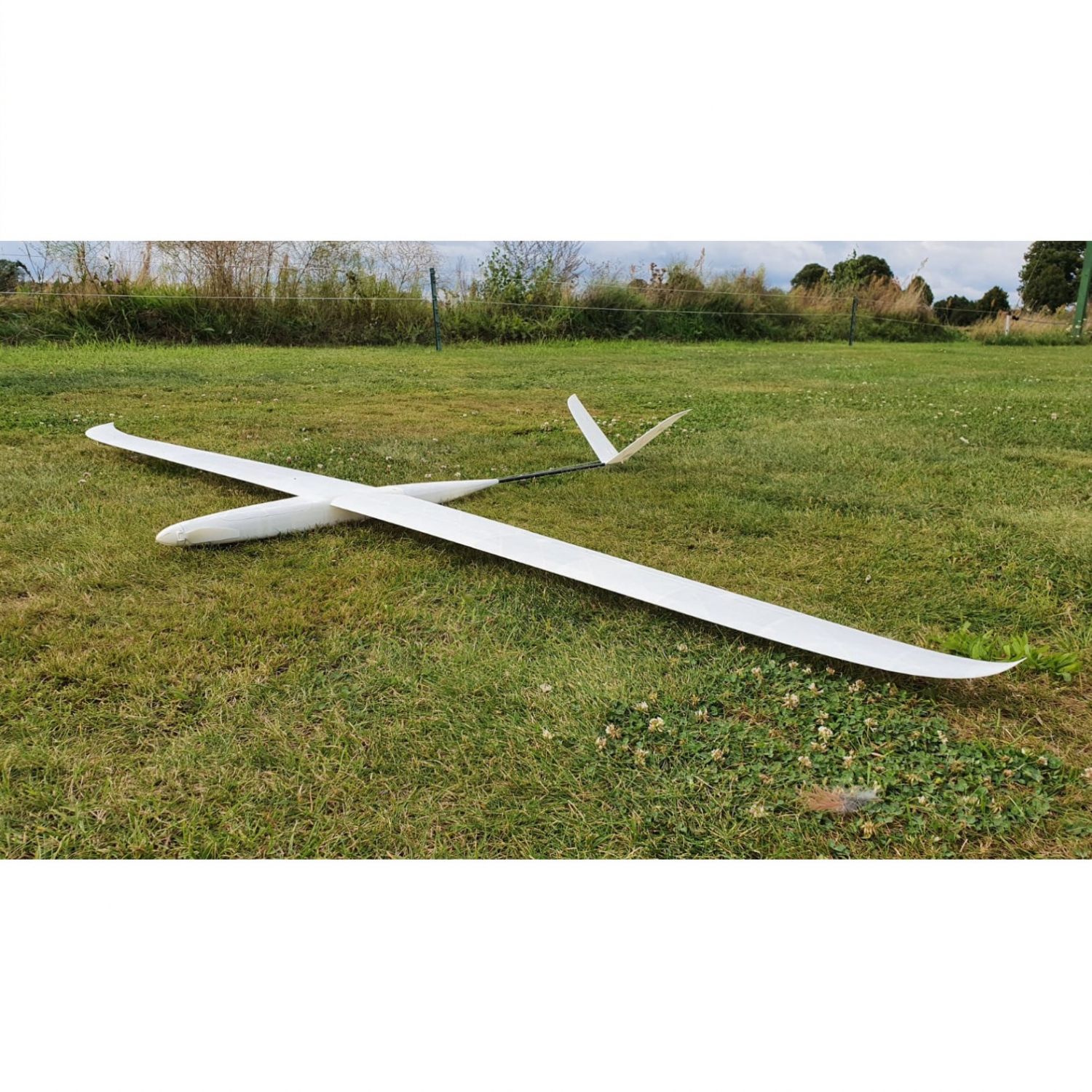

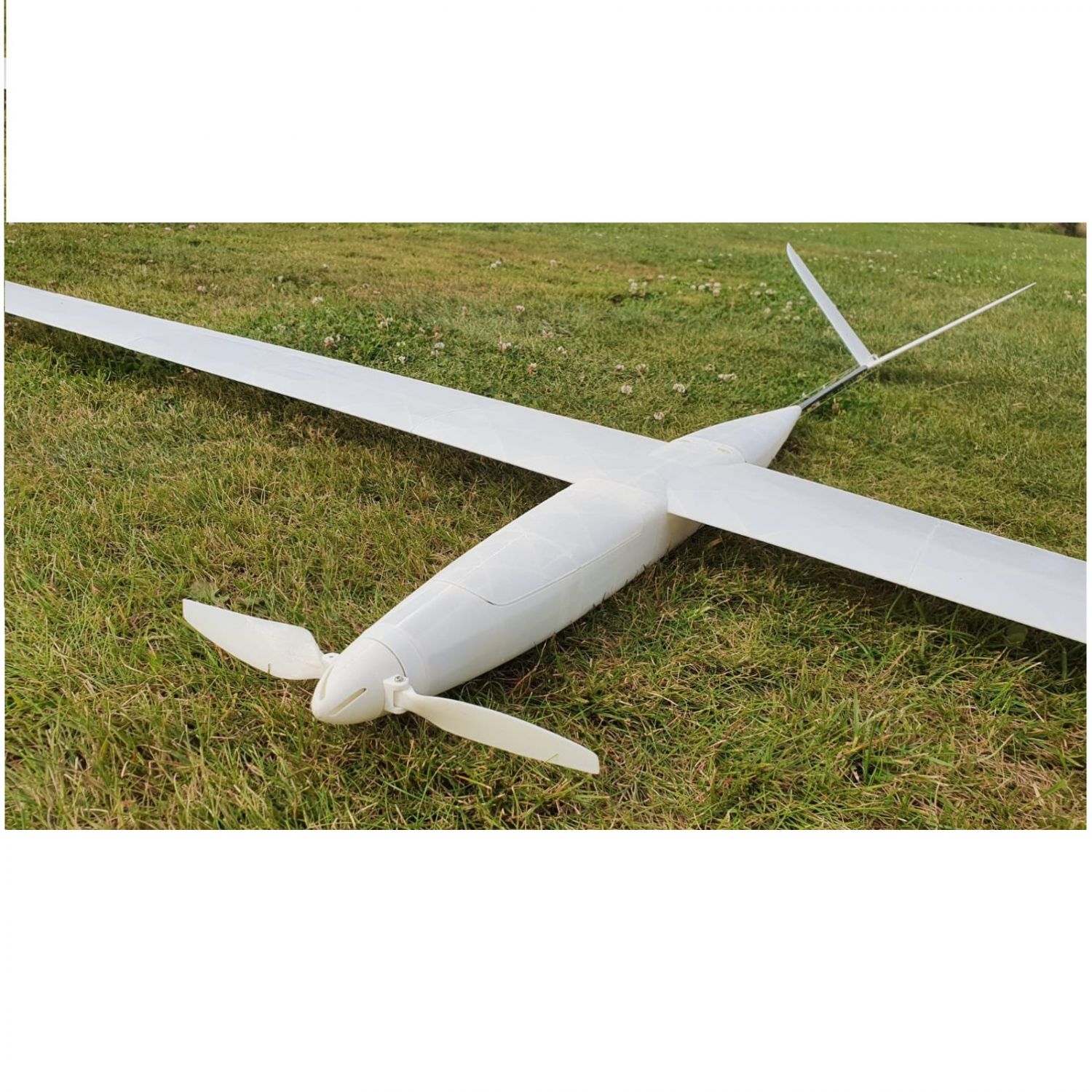

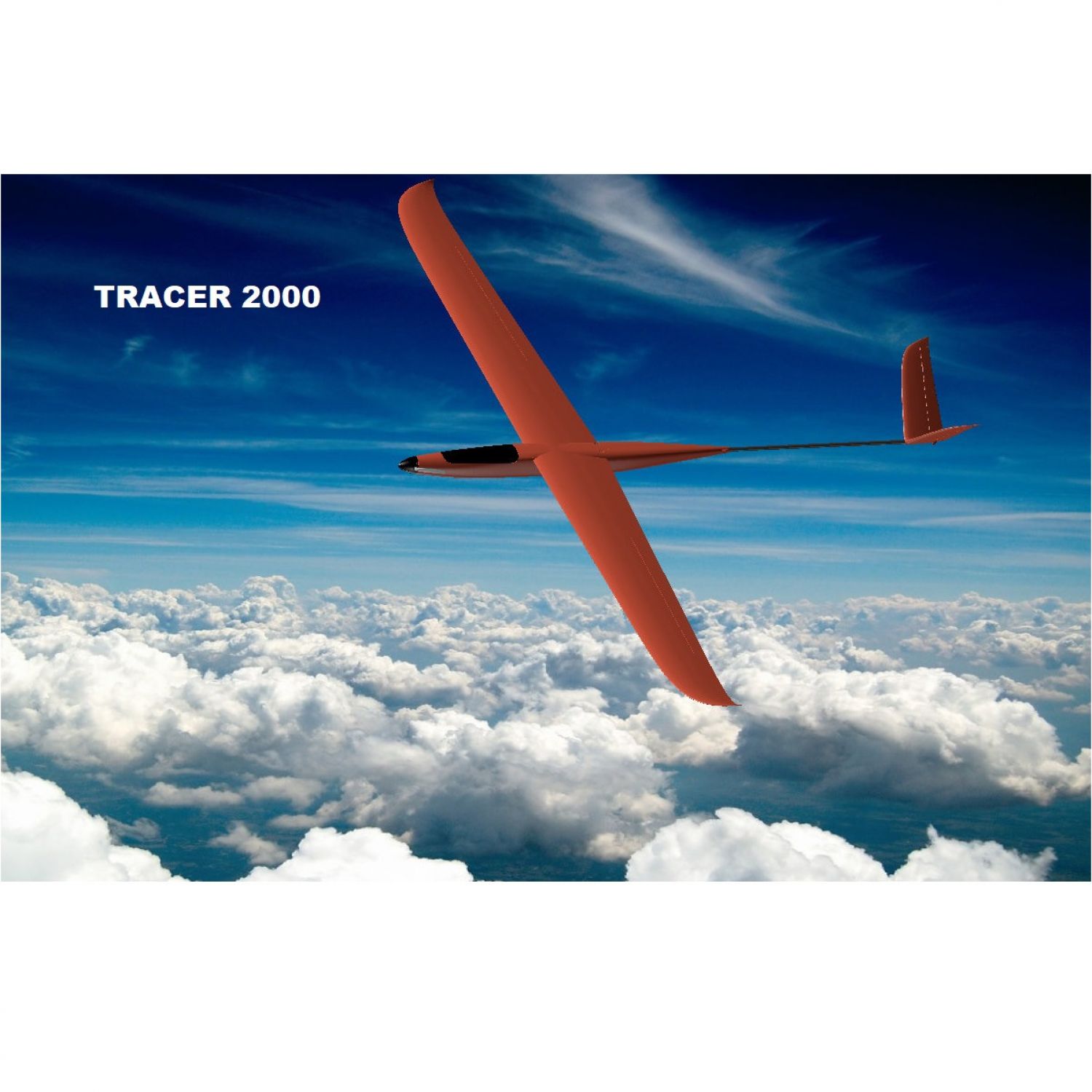

This blend of thermal soarer and hot-liner is bound to turn some heads at the local flying field. Designed for quick and easy construction printed in PLA. Designed to suit the 2836 1500kv out-runner on a 8x4 folding propeller. Utilizing ailerons and a V-tail rudder/elevator, this model flies like it is on rails. With an extremely thin wing profile and sleek fuselage, it has a fantastic glide ratio and penetrates strong winds easily. Links to components used can be found on the last page of the user guide.

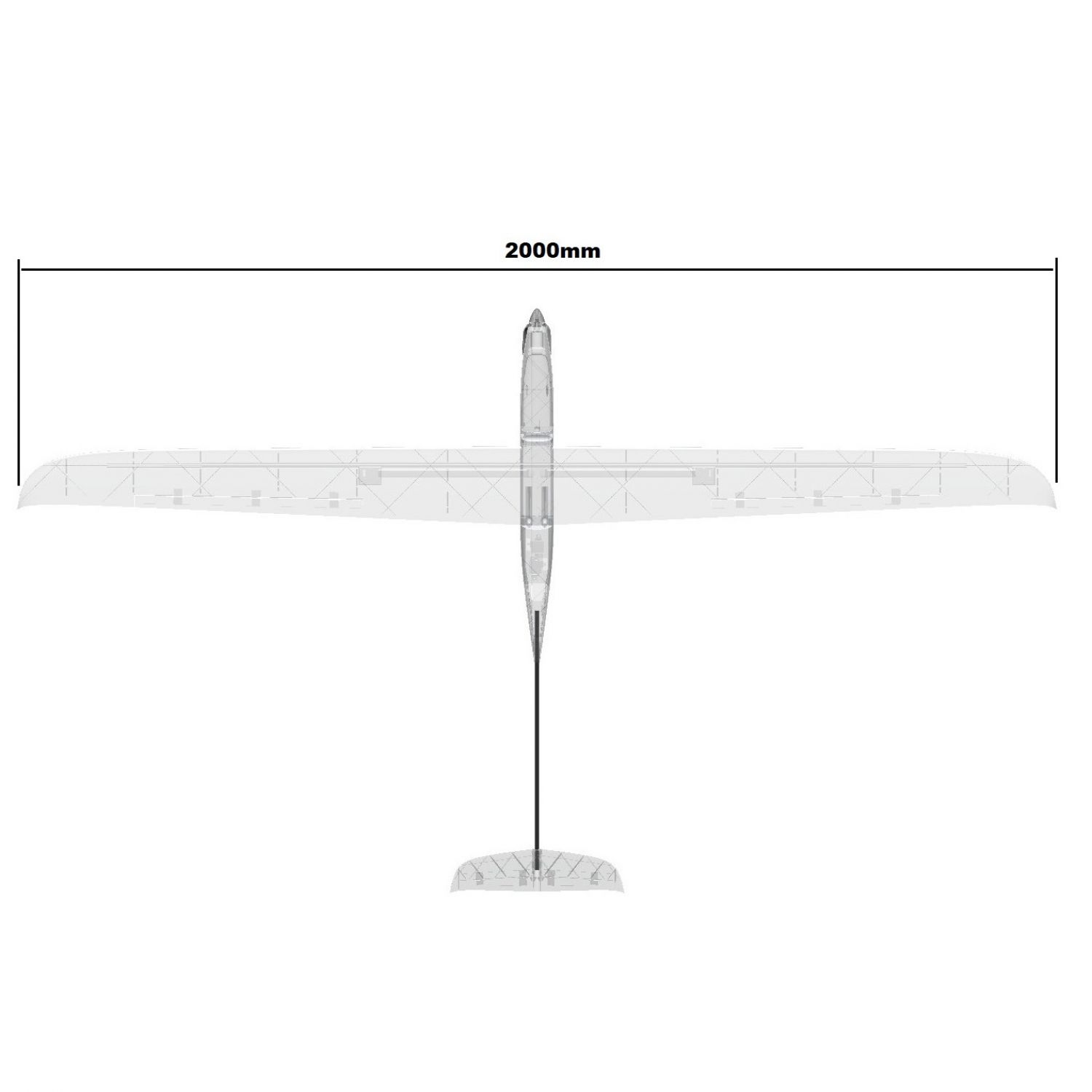

Wing design-
The wing is a removable 2 piece (join in the middle) using an 8x6mm round carbon tube and 6mm carbon joiners. Makes for easy transport. It is held to the fuse by x2 m6 nuts in the rear of the wing and a reinforced notch in the front.

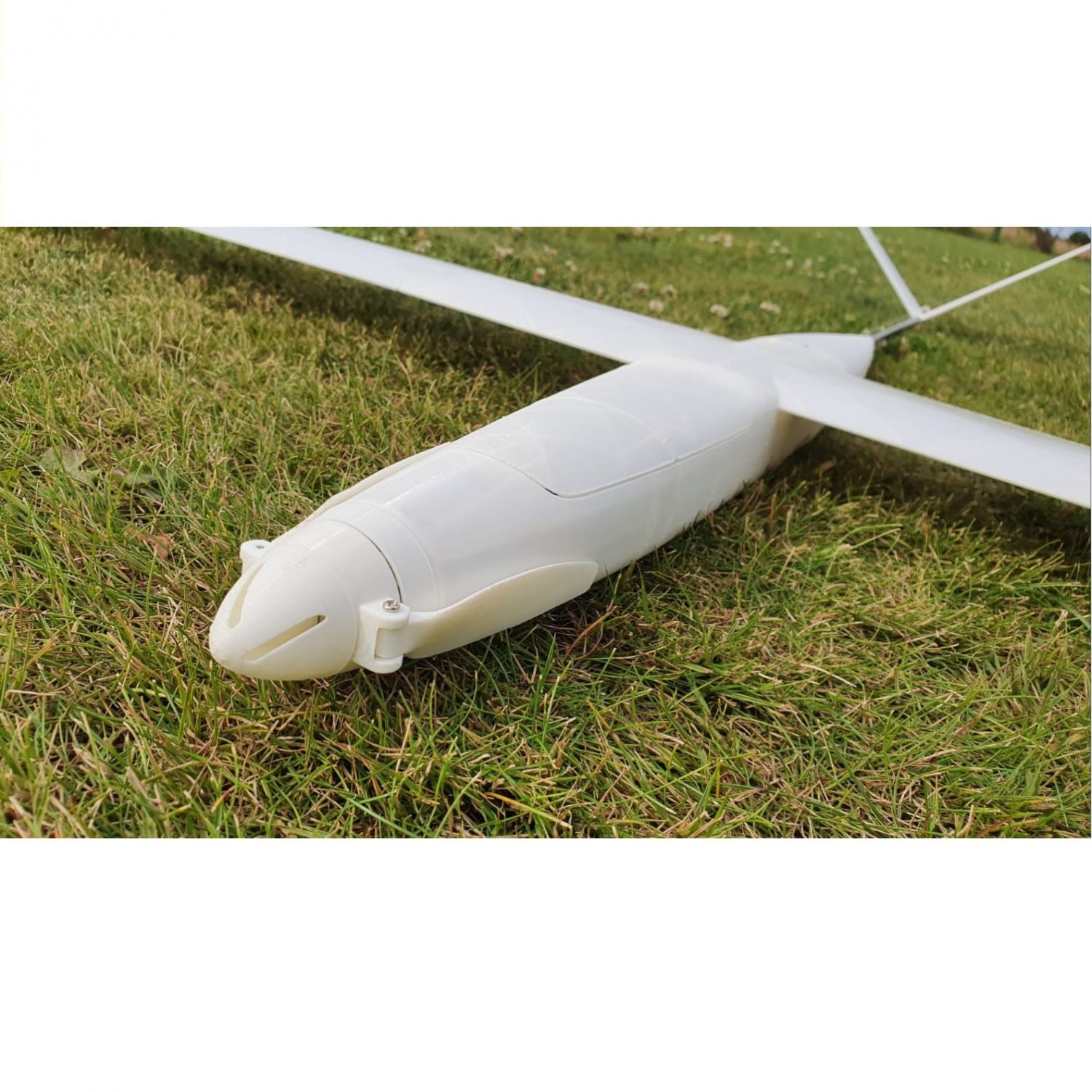

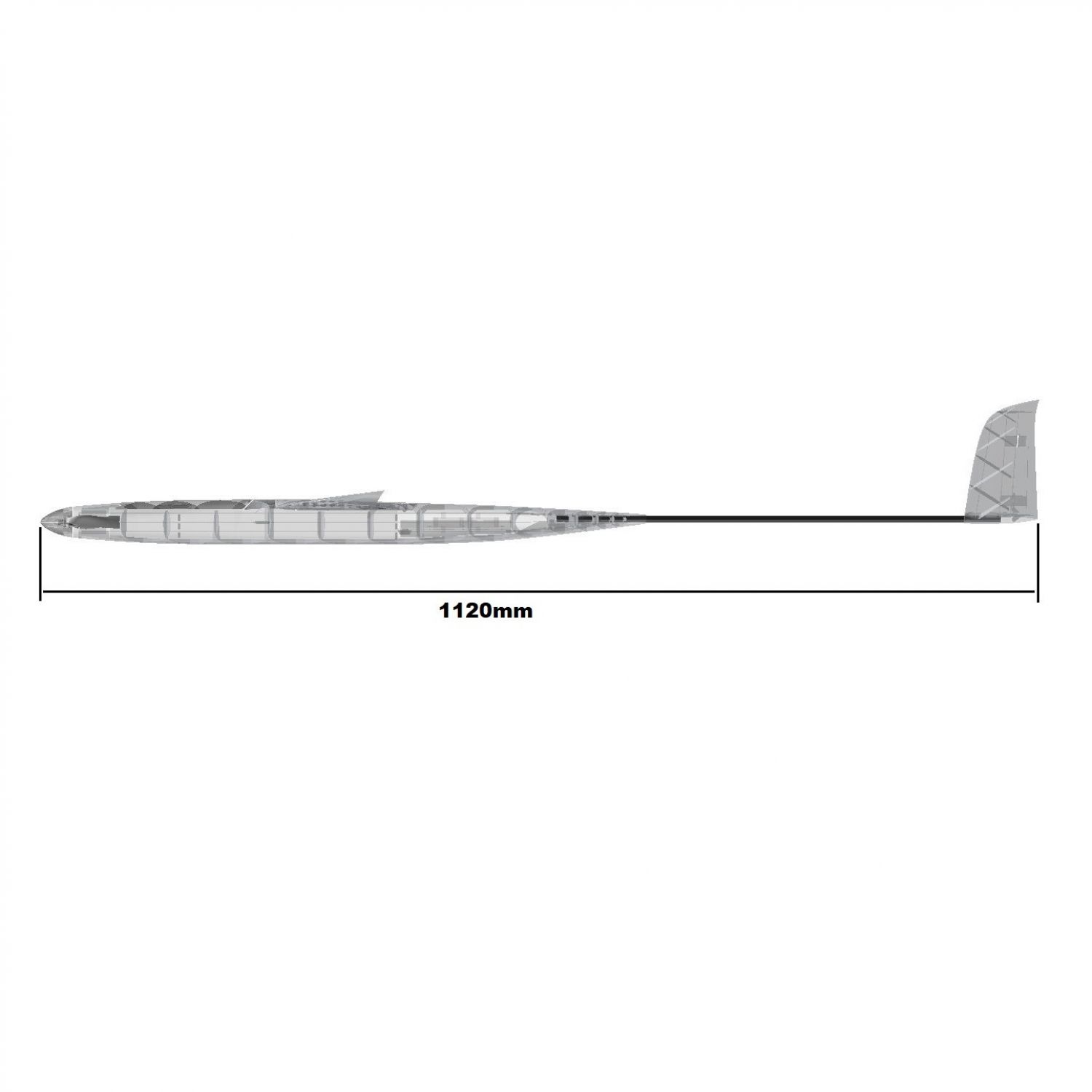

Fuselage and tail design-

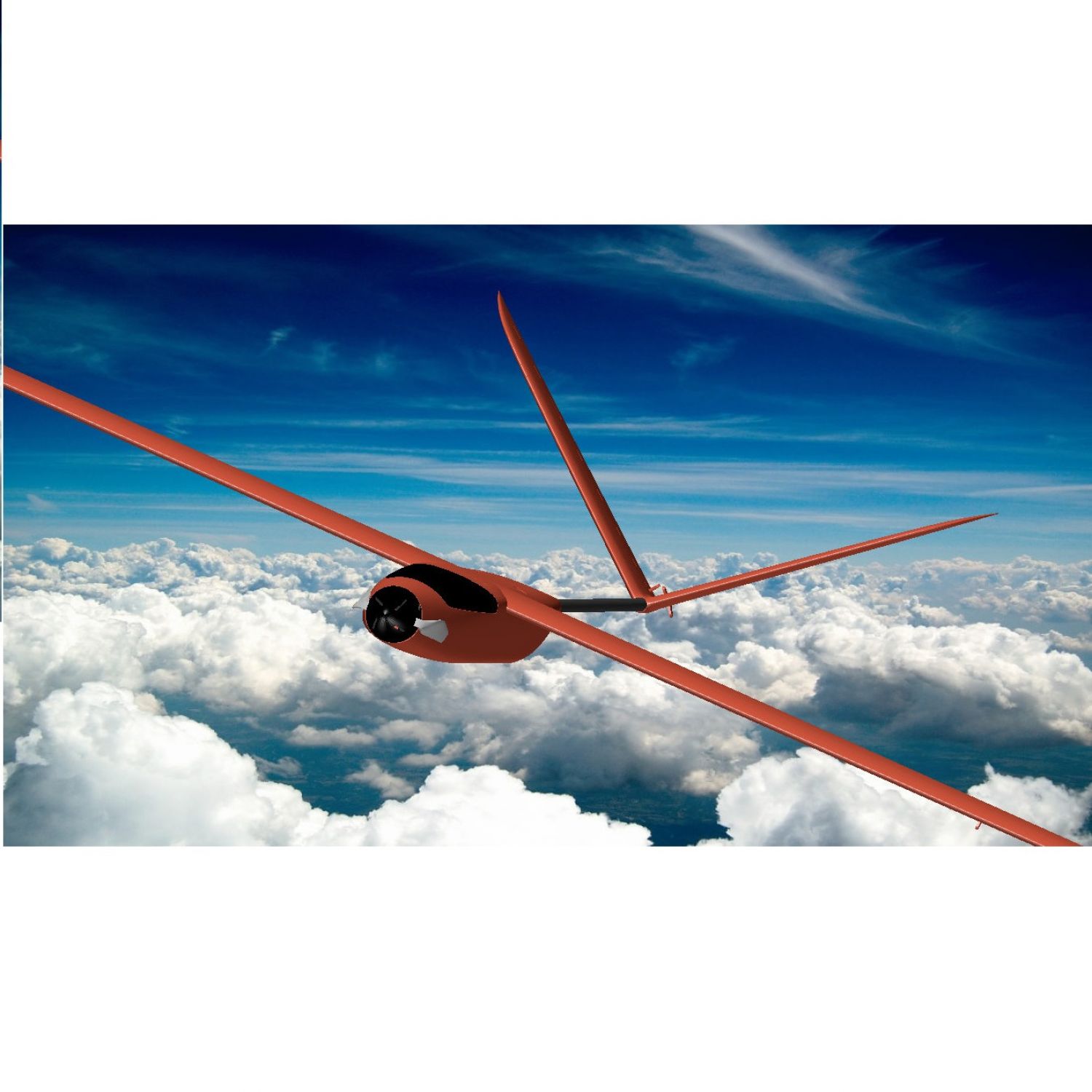

Solid firewall with the motor mounted aft.

The v-tail servo's (stock 9g servo) mount to a tray which slides into the tail section on a rail printed into the fuse. the tray also houses the nylon nuts for securing the wings.

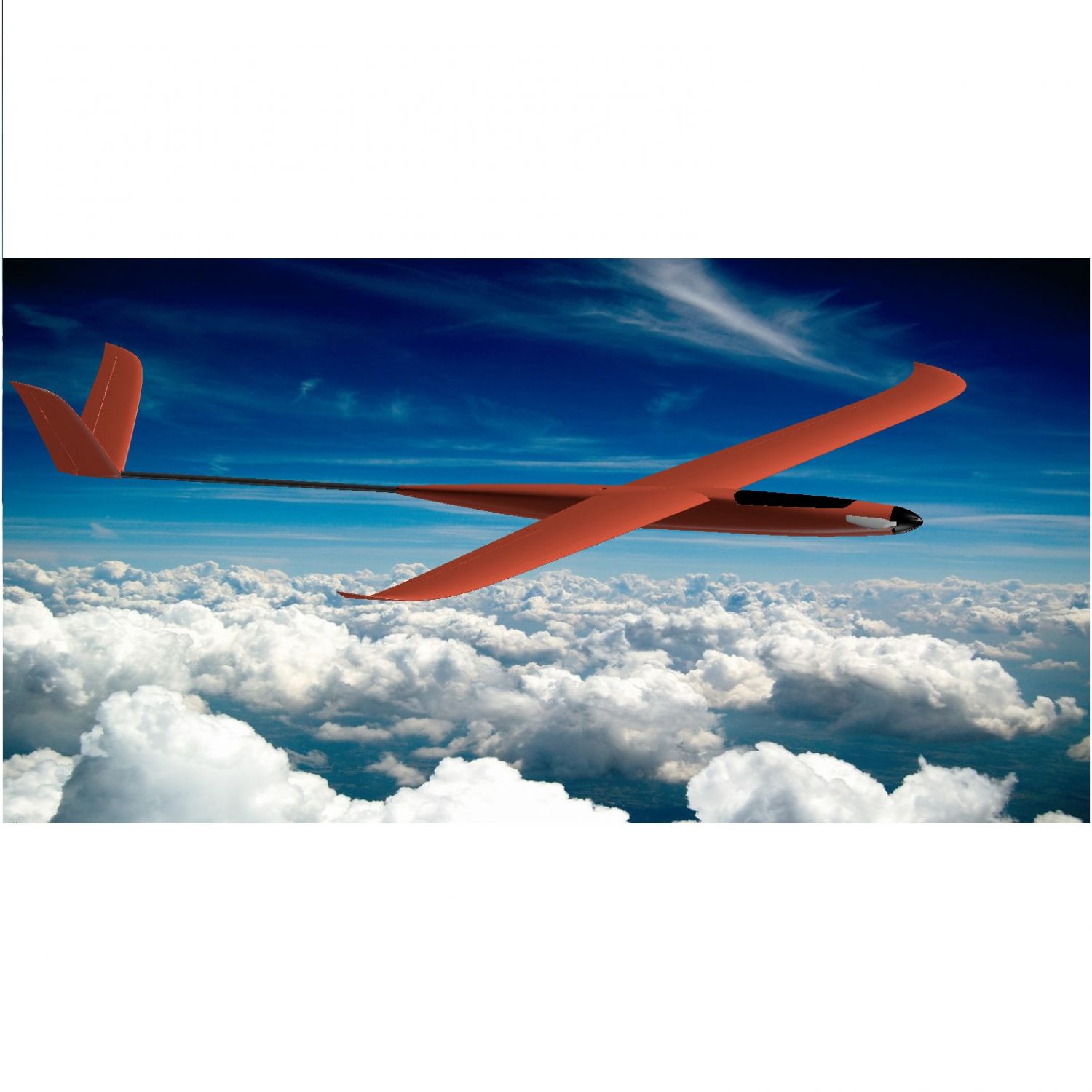

The v-tail is a pull pull braided fishing line design with the line running through printed tubes before exiting the rear of the fuse and connecting to the control horns on the v-tail.

INCLUDED:

• Factory files for Simplify 3d
• STL files for all components
• G-code files for all parts
• Cura profiles for LW-PLA and regular PLA
• Detailed assembly manual and user guide
• Print settings guide for all parts
• part orientation images

X1 2836 1500KV MOTOR (or similar)
X1 40AMP ESC
X1 2200MAH 3S LIPO OR SIMILAR
X2 9G SERVO
X2 10G SLIM 2.6KG SERVO
BAMBOO SKEWERS 3MM
X2 10mm X 10mm X 2mm MAGNET (ROUND)
X10 16mm x 29mm HINGES
X2 m6 nylon bolts and nuts (min 40mm length)
VELCRO
X4 8mm x 6mm x 500mm Twill carbon tube
X1 6mm x 500mm carbon rod solid
M2 x10mm screws (x1 20mm M2 screw optional)
1mm or 1.5mm piano wire
Braided fishing line (20lbs)

For any questions and assistance please email us at:

aeroworks3d@outlook.com

 NOTE: All STL files need to enlarged to 1000% if using a program other than simplify3d.
